REP 8.9 Fabric Guide
Parts List on PL 10.3
WARNING
Switch off the Main Power Switch. Disconnect the
Power Cord.
NOTE: The art used for this procedure was
developed for previous products and may not match
the 8830 configuration exactly.
Removal
1. Lower the Media Transport Cover.
2. (Figure 1): Carefully reach into the Printer and
remove the Fabric Guide.
Raise the Retaining Bar 90

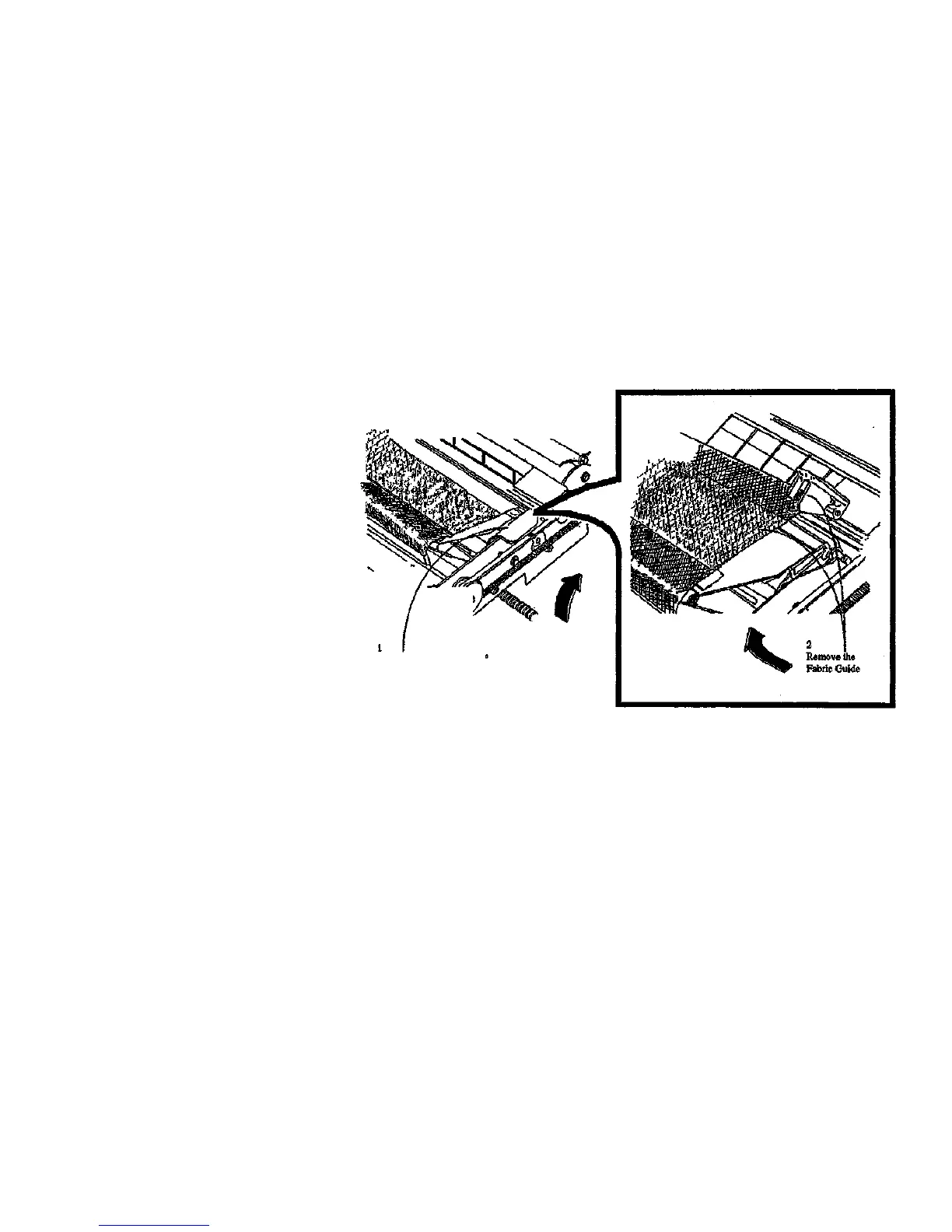

Figure 1. Removing the Fabric Guide
8830
1/98
4-29
REP 8.9
To Next Page
