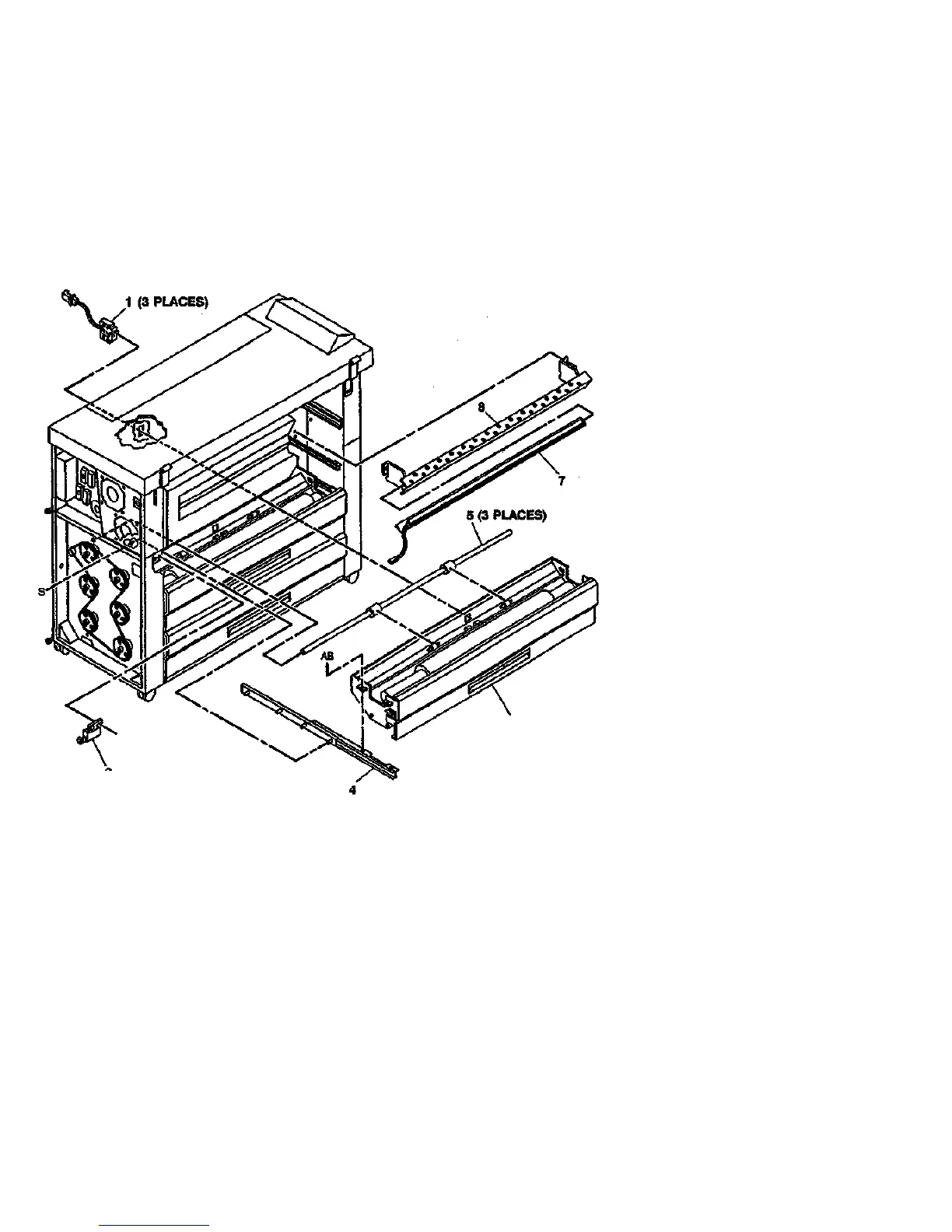

PL 7.1 ROLL SUPPLY FEED ASSEMBLY
6{7, 8
(3 PLACES)
(6 PLACES)
3 (3 PLACES)
(EXPLODED ON
PL7.3, ITEM 1
PL7.4, ITEM 1
PL7.5, ITEM 1
PL7.6. ITEM 1)
EM
1
2
3
4
5
6
7
8
PART
130K51801
130E2271
50K19612
10K1351
22K2S930
..
126K7330
DESCRIPTION
POSITION SENSOR
DRAWER INTERLOCK SWITCH
ROLL SUPPLY DRAWER
ASSEMBLY (REP 7.1)
SLIDE
ROLL FEED DRIVE ROLL
(REP 7.4)
HEATER ASSEMBLY
(NOT SPARED)
HEATER
HEATER HOUSING
(P/O ITEM 6)
0000007A-RNO
PARTS LIST SECTION
PL 7.1
2/97
5.8
8830
