Xerox 8830 Service Manual

REP 7.10B Upper Media Roll
Heater
Parts List on PL 7.2
WARNING
Switch off the Main Power Switch.
Disconnect the Power Cord.
Removal
1. Remove Media Supply Drawer 1 (REP 7.1).
CAUTION
Be sure to support the Media Roll Heater/Guard
with your hand white removing the mounting
screws in the next step.
2. (Figure 1): Remove the Upper Media Roll
Heater.
Upper Media Roll Heater and Guard
Disconnect the
connector
Remove the screws (2) and lift out
the Upper Media Roll Heater and
Guard
Slide the Media Roll
Heater out from Heater
Guard

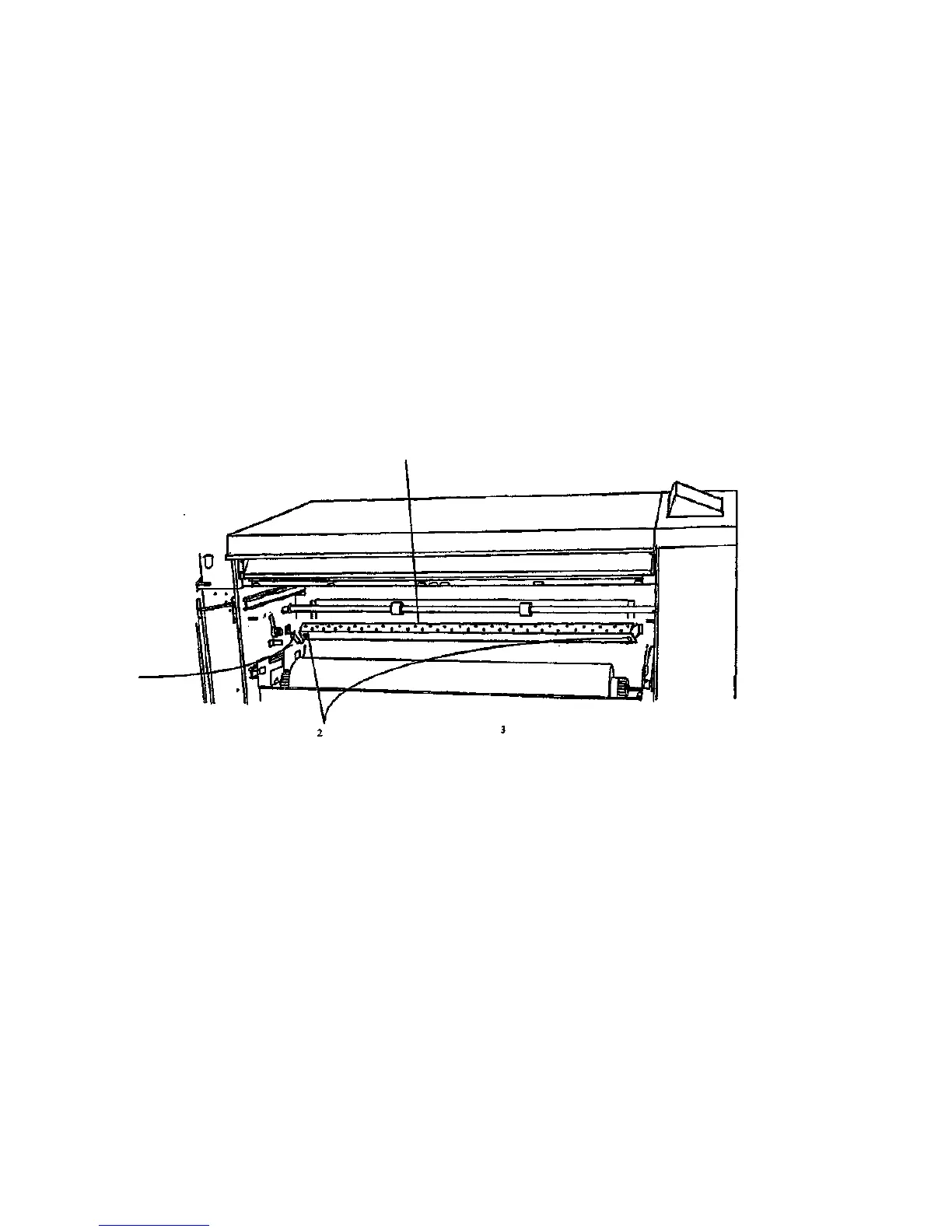

Figure 1. Removing the Upper Media Roll Heater
REP 7.10B
1/98
4-14
8830
