REP 9.4 Cleaner Blade Kit
Parts List on PL 9.5A
NOTE: These are the instructions to install the
Cleaner Blade Kit. The kit contains the following
items:
• Right-hand Seal (57 mm wide)
• Left-hand Seal (41 mm wide)
• Cleaner Blade
• Photoreceptor Seal
• Blade Retainer (3)
WARNING
Switch off the Main Power Switch. Disconnect the
Power Cord.
Removal
NOTE: In this procedure, "Left" and "Right"
describe machine locations as observed when you
are facing the Xerographic Module at the left side of
the Printer.
1. Remove the Drum Assembly (REP 9.2).
2. (Figure 1): Remove the Photoreceptor Seal,
Right-hand Seal, Left-hand Seal, Cleaner Blade,
and the three Blade Retainers from the
Xerographic Module.
3. Use a vacuum cleaner to clean the channels and
the areas where the new parts will be installed.
Xerographic
Module Frame
Photoreceptor
Seal Channel

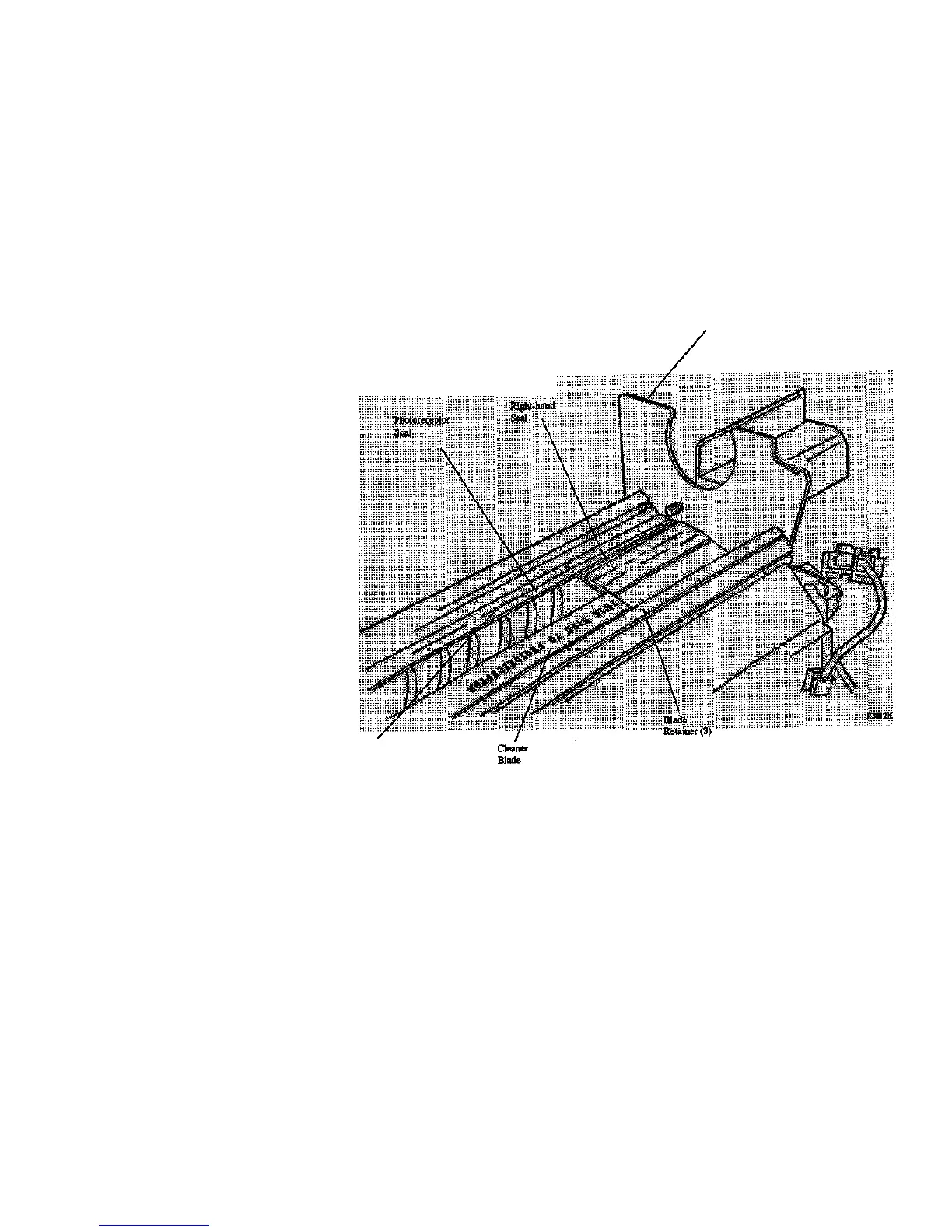

Figure 1. Removing the Cleaner Blade
REP 9.4
1/98
4-50
8830
