Xerox 8830 Service Manual

Product Specifications
Physical Characteristics
Table 1 Physical Characteristics
NOTE: 8830 DOS Shared Fixed Space • Orientation of the 8830 Printer and 7356 Scanner
must maintain minimum service space Illustrated for safe operation of the 8830 Digital Docu-
ment System.
NOTE: Once Installed, the 8830 DDS is not considered movable. If moved, re-leveling of the
8830 DDS may be required.

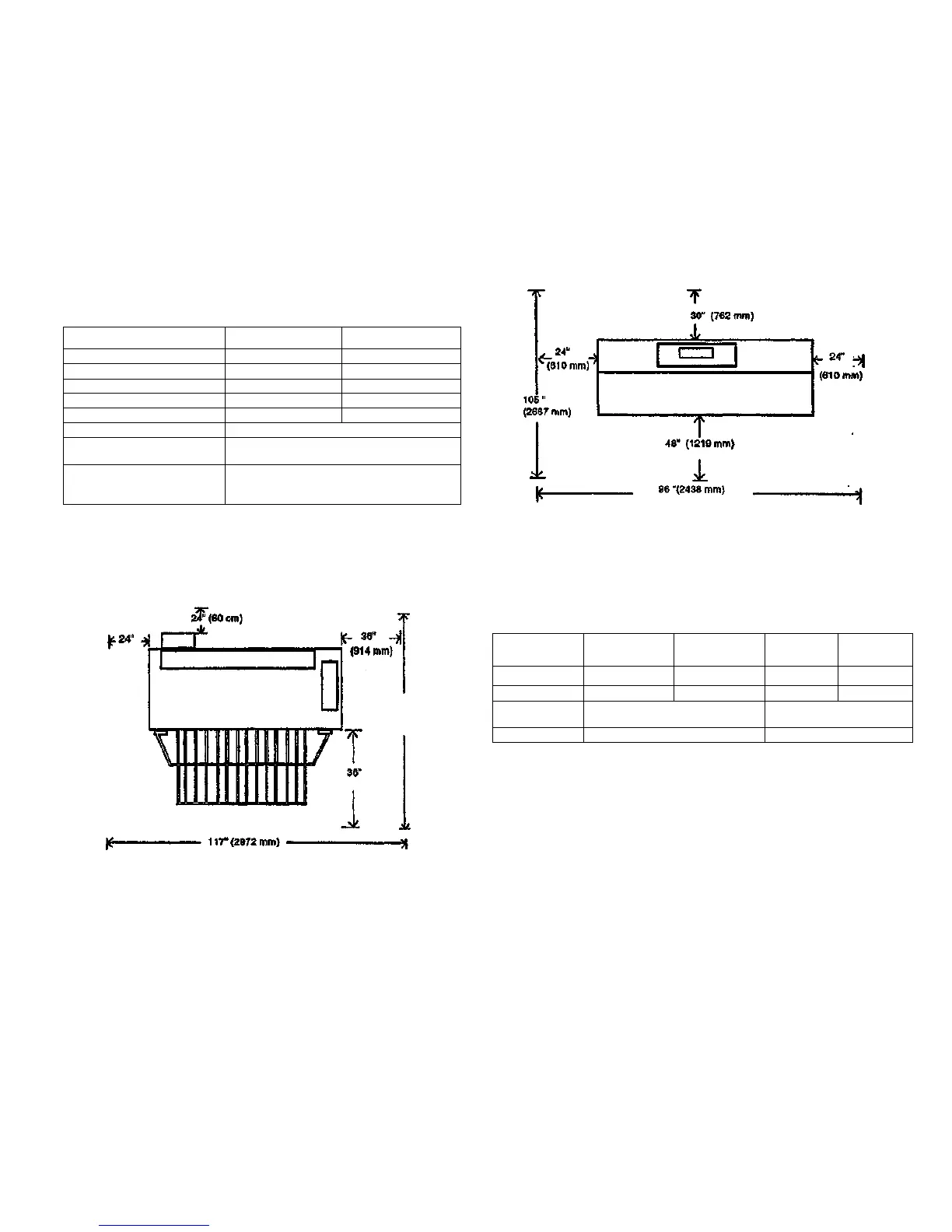

Figure 2 7356 Scanner Space Requirements
Environmental Conditions
Table 2 Environmental Specifications
83" (2108 mm)
Figure 1 8830 Printer Minimum Space Requirements
8830 DDS
3/98
6-17
General Procedures
Product Specifications
Category
Weight
Height
Width
Depth
Product Code
Floor Space required for system
Floor Space required for system
(with 8830 Folder)
Height Clearance
8830 Printer
575 lbs. (261 kg)
43 Inches (1092 mm)
23 Inches (584 mm)
57 Inches (1449 mm)
8YG
7356 Scanner
140 lbs. (63.3 kg)
40.5 inches (1029 mm)
50.5 inches (1083 mm)
26.5 Inches (673 mm)
D8W
299 Inches x 105 Inches (7695 mm x 2667 mm)
299 Inches x 105 Inches (7595 mm x 2667 mm)
78 inches (1981 mm) from floor to nearest overhead
obstruction within the door space requirement.
Item
Temperature
Humidity
Heat Emissions
(BTU per hour)
Audible Noise
8830 Printer
Minimum
60° F (15° C)
20%
8830 Printer
Maximum
80° F (27° C)
80%
Standby: 2350
Running: 1840
67 db (A)
7356 Scanner
Minimum
60° F (15° C)
20%
Standby: N/A
Running: N/A
7356 Scanner
Maximum
80° F (27° C)
80%
55 db (A)
