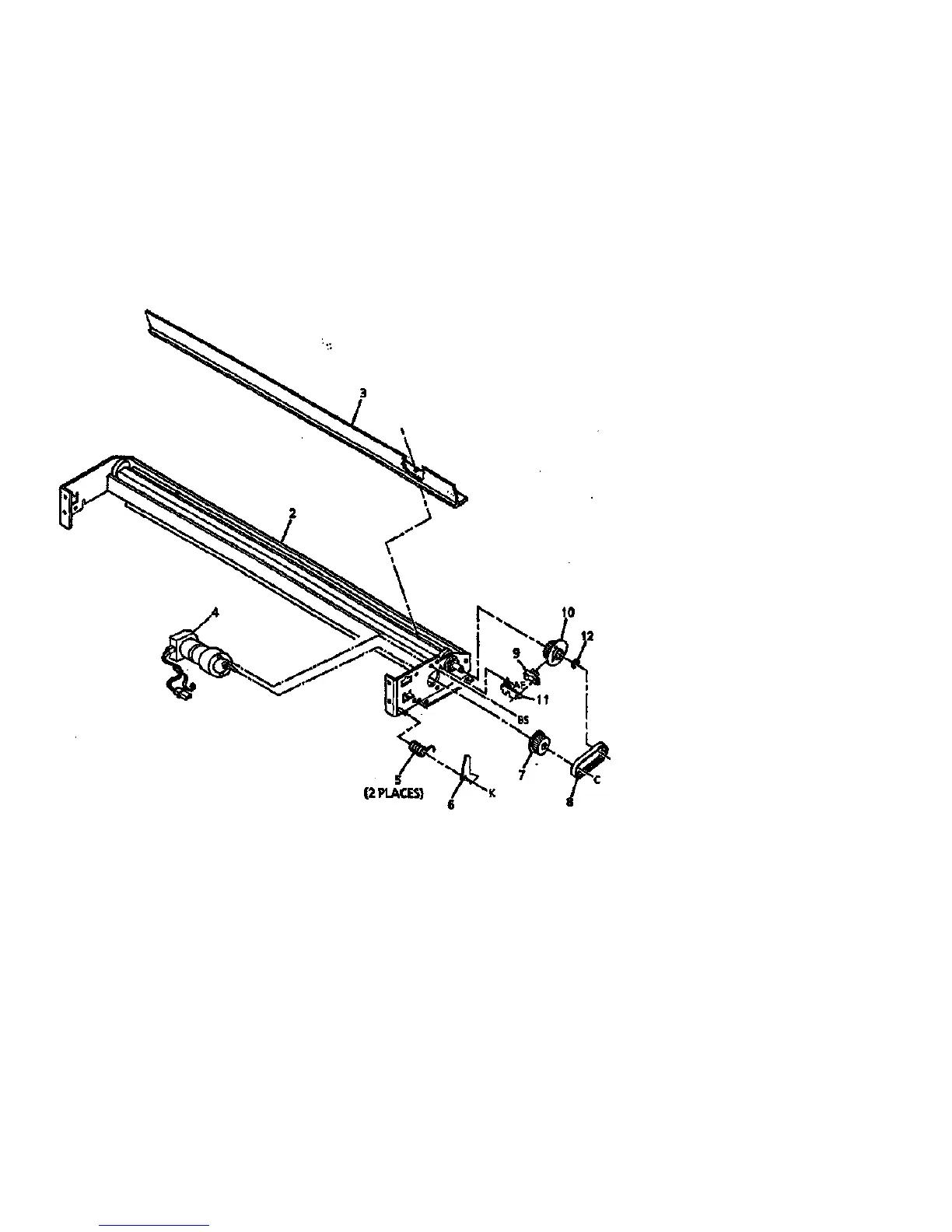

PL 7.8 MEDIA CUTTER COMPONENTS
AG
ITEM
1
2
3
4
5
6
7
B
9
10
11
12
PART
..
38K6601
127K19850
9E27340
3E16521
-
423W57550
130E3250
20E18B30
2BE7430
DESCRIPTION
PART OF MEDIA
CUTTER ASSEMBLY
(REF: PL7.7 ITEM 1)
MEDIA CUTTER FRAME
(P/O ITEM 1)
MEDIA EXIT GUIDE
CUTTER MOTOR
LATCH SPRING
CUTTER LATCH
DRIVE PULLEY (34T)
(P/O ITEM 1)
DRIVE BELT
CUTTER HOME SENSOR
(REP 8.15)
CUTTER DRIVE PULLEY
SENSOR BRACKET
(P/O ITEM 1)
RETAINING RING
00000I4A-RNO
8830
2/97
6-15
PARTS LIST SECTION
PL 7.8
1{2-12
