REP 9.19 Roller Kit
Parts List on PL 9.3
NOTE: These are the instructions to install Roller
Kit 600K58740. The kit contains the following items:
• Rollers (2)
• Pins (2)
WARNING
Switch off the Main Power Switch. Disconnect the
Power Cord.
Removal
1. Raise and secure the Top Cover.
2. Open the Image Module.
3. (Figure 1): Using pliers, pull out the pin and
remove the roller.
Replacement
1. Replace the roller and pin with parts from the kit.
2. Repeat the procedure at the rear of the Image
Module.

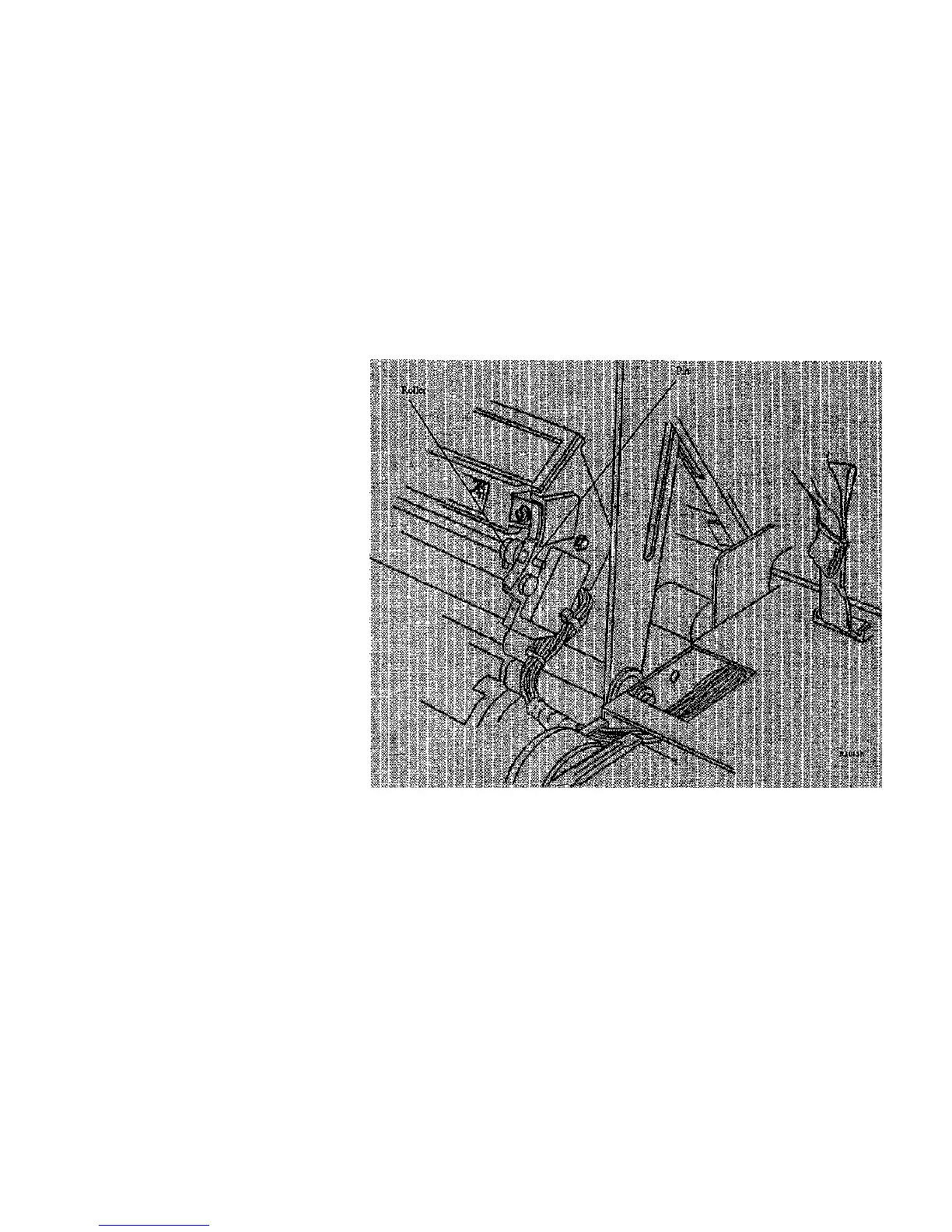

Figure 1. Removing the Front Roller
8830
1/98
4-77
