Xerox 8830 Service Manual

ADJ 8.4 Media Transport
Purpose
The purpose is to set the correct spacing between the
Media Transport and the Drum when a new Media
Transport is installed. The correct spacing is obtained
by adjusting the position of the Lower Turnaround
•Baffle.
NOTE: The art used for this procedure was
developed for previous products and may not match
the 8830 configuration exactly.
WARNING
Switch off the Main Power Switch. Disconnect the
Power Cord.
Check
1. Remove the Developer Module (REP 9.5).
2. Remove the white toner shield.
3. Prepare two strips of 0.030 inch (coral)
shimstock 0.75 inches (20 mm) wide.
4. Ensure that the Media Transport Cover is closed.
5. (Figure 1): Check that the Media Transport to
Drum spacing is 0.030 ± 0.005 inches (0.76 ±
0.1 mm).
1
Position the shims
in the notches of
the Turnaround
Baffle
Shim should just fit in
the Lower Baffle to
Drum gap
Drum
View is looking in at the
Right Side of the Printer
Turnaround
Baffle

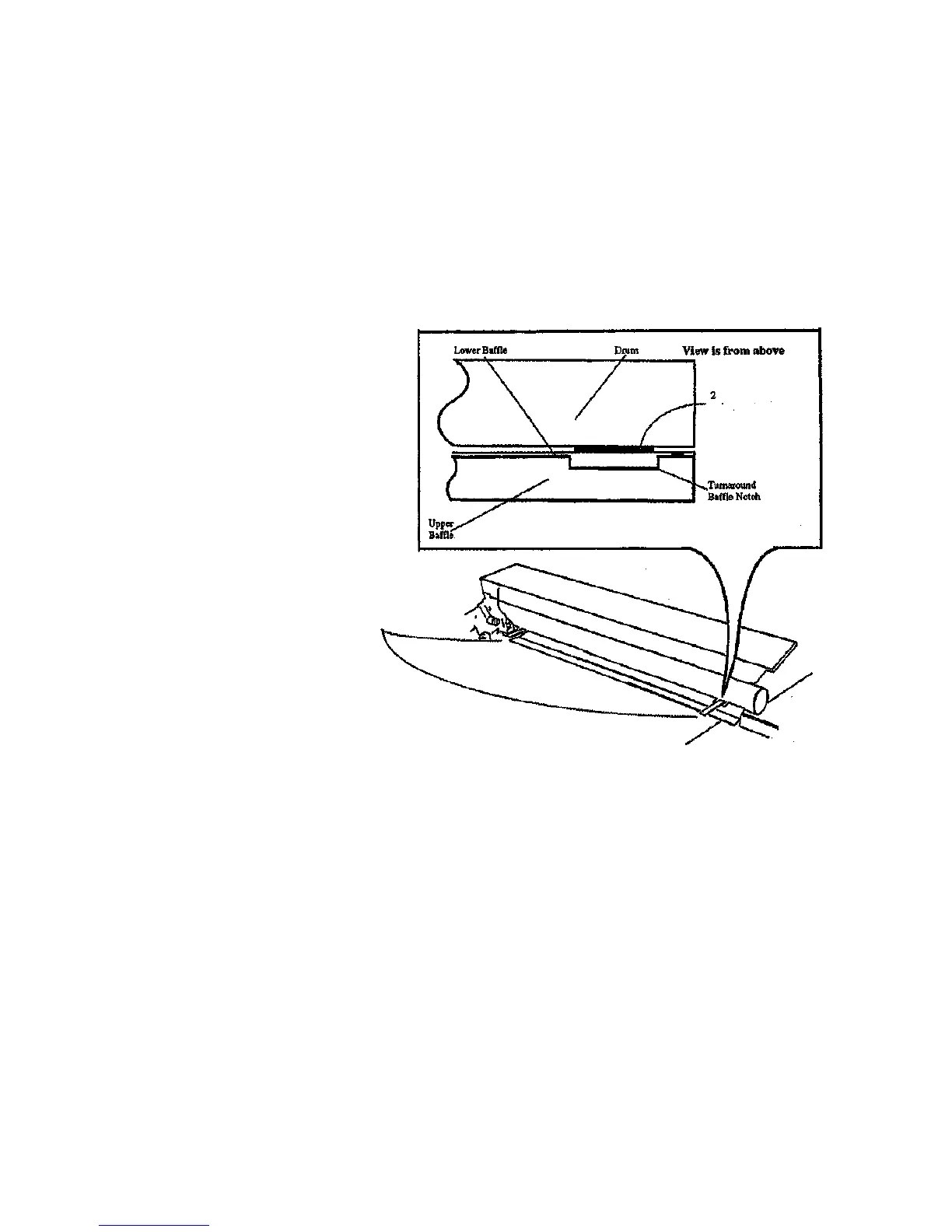

Figure 1. Checking the Media Transport to Drum Spacing
8830
1/98
4-97
ADJ 8.4
