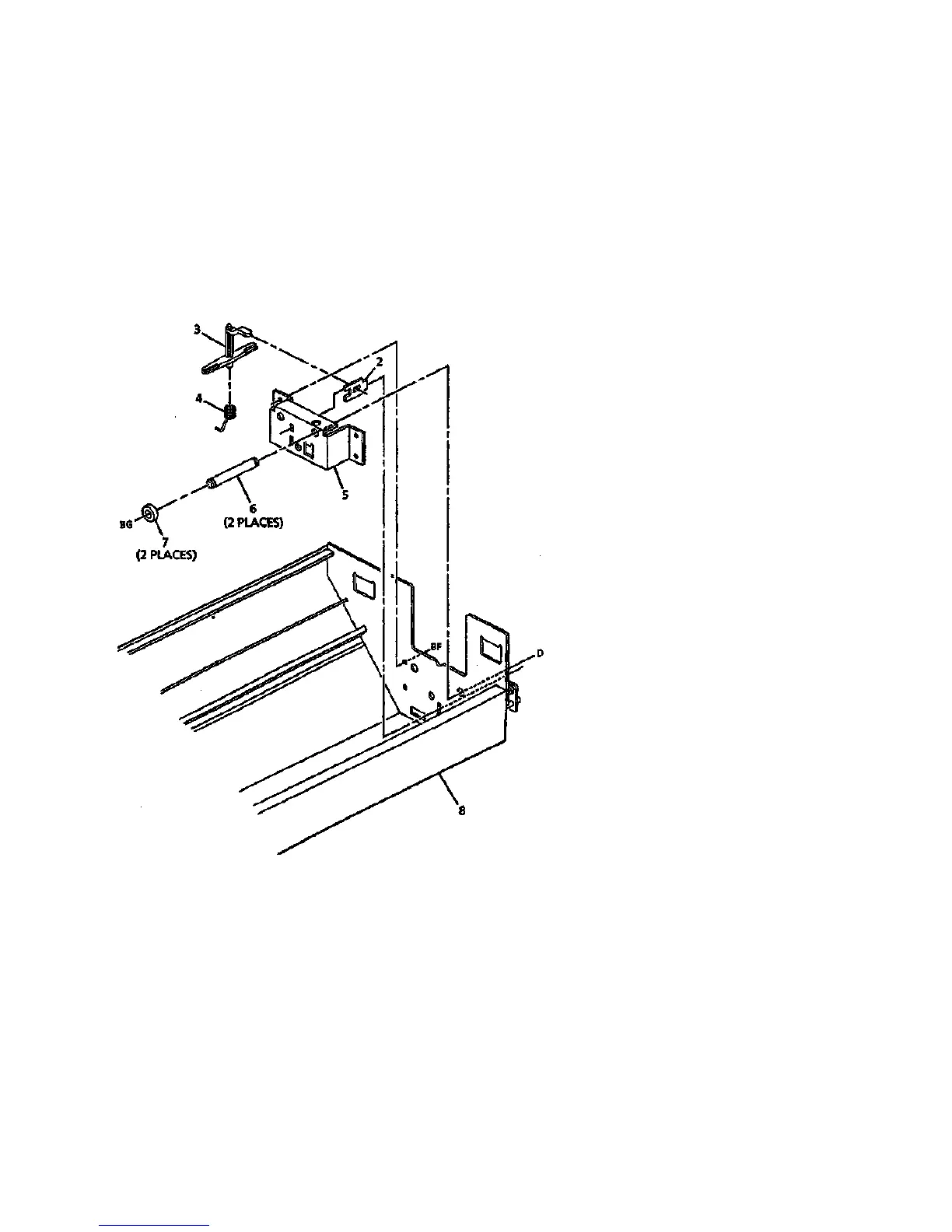

PL 7.4 ROLL SUPPLY DRAWER COMPONENTS (PART 2 OF 4)
1(2-8
ITEM
1
2
3
4
5
6
7
8
PART
..
3E17610
9E27340
..
29E14750
22E11540
DESCRIPTION
PART OF ROLL SUPPLY
DRAWER ASSEMBLY
(REF PL7.1 ITEM 3)
RH ROLL LOCK
(P/O ITEM 1)
ROLL LOCK
ROLL LOCK SPRING
RH CRADLE BRACKET
(P/O ITEM 1)
RH SUPPORT PIN
SUPPORT ROLLER
DRAWER FRAME
(P/O ITEM 1)
0000010A-RNO
8830
2/97
5-11
PARTS LIST SECTION
PL 7.4
