Xerox 8830 Service Manual

REP 8.10 Media Transport
Drive Motor
Parts List on PL 8.1
WARNING
Switch off the Main Power Switch. Disconnect the
Power Cord.
Removal
1. Latch the Xerographic Module at the Service
Position (REP 9.2).
Remove the Media Transport Assembly (REP
8.1).
Remove the Fabric Guide (REP 8.9).
Remove the Pressure Plates (REP 8.5).
Turn the Media Transport Assembly over.
(Figure 1): Remove the Media Transport Drive
Motor Assembly.
(Figure 2): Remove the motor from the
mounting plate.
Replacement
1. Ensure that the belt is over the Idler Pulley.
2. If a new motor is being installed, use the Drive
Pulley from the old assembly.
2
Remove the
screws (3)
1
Disconnect the
connector
2.
3.
4.
5.
6.
7.
1
Remove the ground
wire and the screw
2
Remove the retaining clip and
the Drive Pulley
Remove the Motor
Assembly
Idler Pulley.

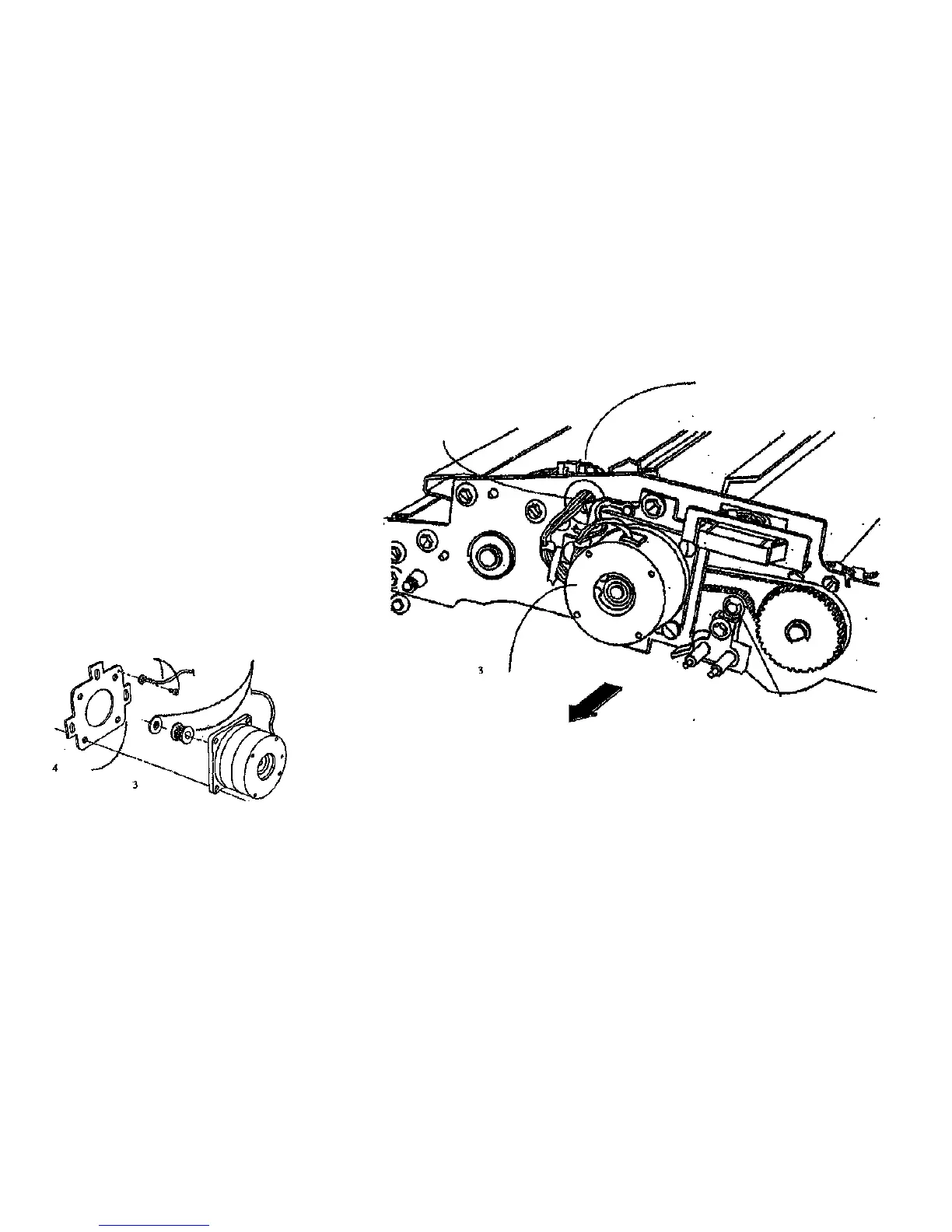

Figure 1. Removing the Media Transport Drive Motor Assembly
Remove the
mounting plate
Remove the
screws and
washers (3)
Figure 2. Removing the Motor
1/98
4-31
REP 8.10
R2448
