Xerox 8830 Service Manual

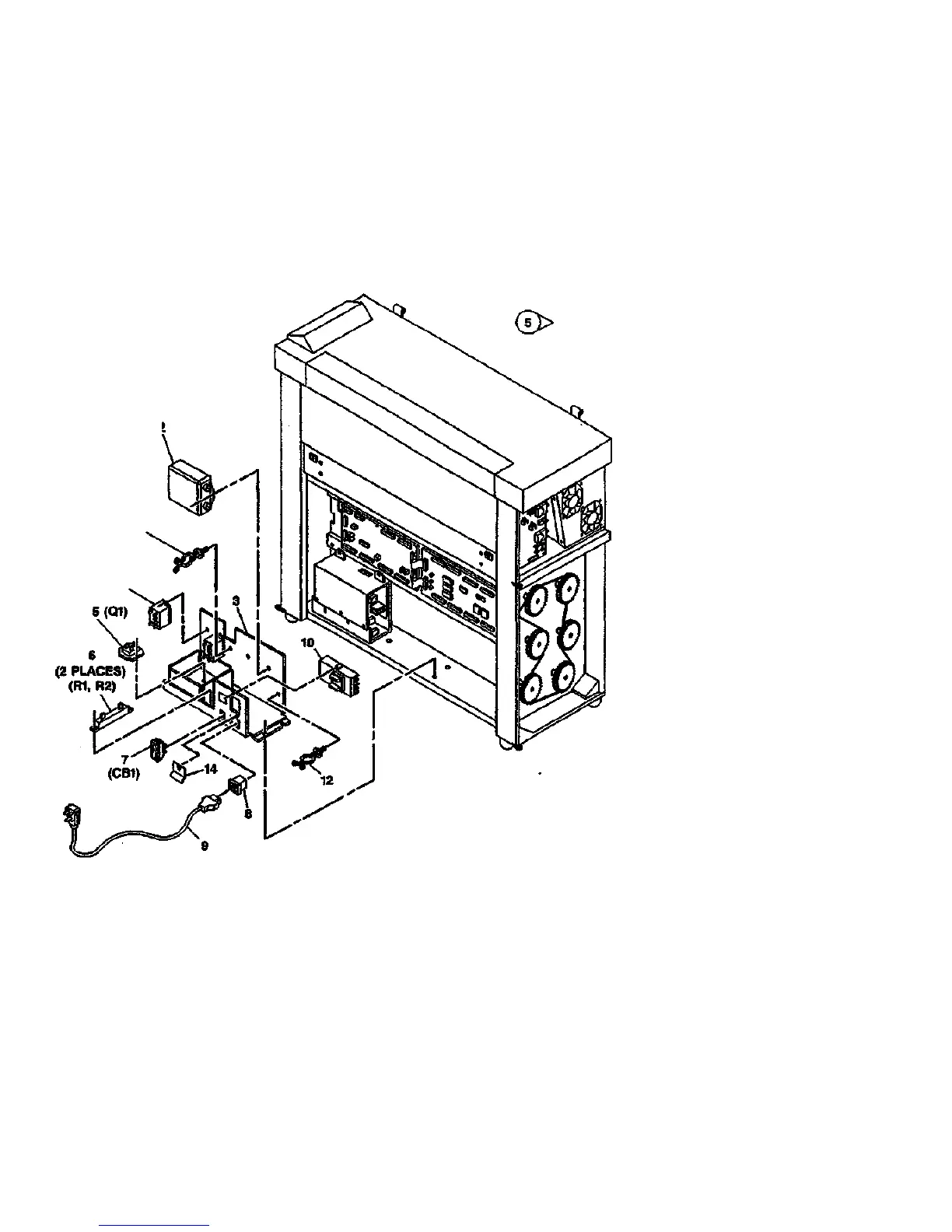

PL 1.2 AC ELECTRICAL COMPONENTS
1 {2-12
13 {14
11
(2 PLACES)
(2 PLACES)
(K1, K3)
ITEM
1
2
3
4
5
6
.
7
8
9
-
10
11
12
13
14
PART
142K1540
—
109E1040
707W1652
103E2721
103E2731
-
-
117K22761
117K27550
10BE1762
120E2160
120E2150
600K60610
DESCRIPTION
AC MODULE ASSEMBLY
(60HZ) (50HZ)
(NOT SPARED)
FILTER
AC COMPONENT
(60HZ) (50HZ)
(P/O ITEM 1)
AC RELAY (K1, K3)
FUSER TRIAC (Qi)
(REP 10.3)
BALLAST RESISTOR
(R1, R2) (60HZ)
BALLAST RESISTOR
(R1, R2) (50HZ)
MAIN POWER SWITCH (CB1)
(P/O ITEM 1)
INLET CONNECTOR
(P/O ITEM 1)
POWER CORD (60HZ)
POWER CORD (50HZ)
GROUND FAULT PANEL
TWIST CLAMP
TWIST CLAMP
AC MODULE KIT (TAG 5)
SUPPORT BRACKET
(P/O ITEM 13)
0000002B ANO
8830
9/97
5-5
PARTS LIST SECTION
PL 1.2
