REP 10.1 Heat Rod

Parts List on PL 10.2

WARNING

Switch off the Main Power Switch. Disconnect the

Power Cord. Allow the Fuser Assembly to cool

before the procedure is performed.

Removal

1. Remove the Stripper Finger Assembly.

2. Perform the Xerographic Module procedure

(REP 9.1) through Step 11. This will leave the

Xerographic Module at the Service Position,

handles installed, and the Drum Assembly

removed.

NOTE: In the following steps, "Left" and "Right"

describe machine locations as observed when you

are facing the Xerographic Module at the left side of

the Printer.

3. (Figure 1): Disconnect the Heat Rod (Right

Side).

Disconnect the connector

and straighten the Heat Rod

Wire

Remove the Heat Rod

Wire from the clamp

Remove the bracket

from the grommet

Grommet

Remove the grommet from

the Heat Rod Wire

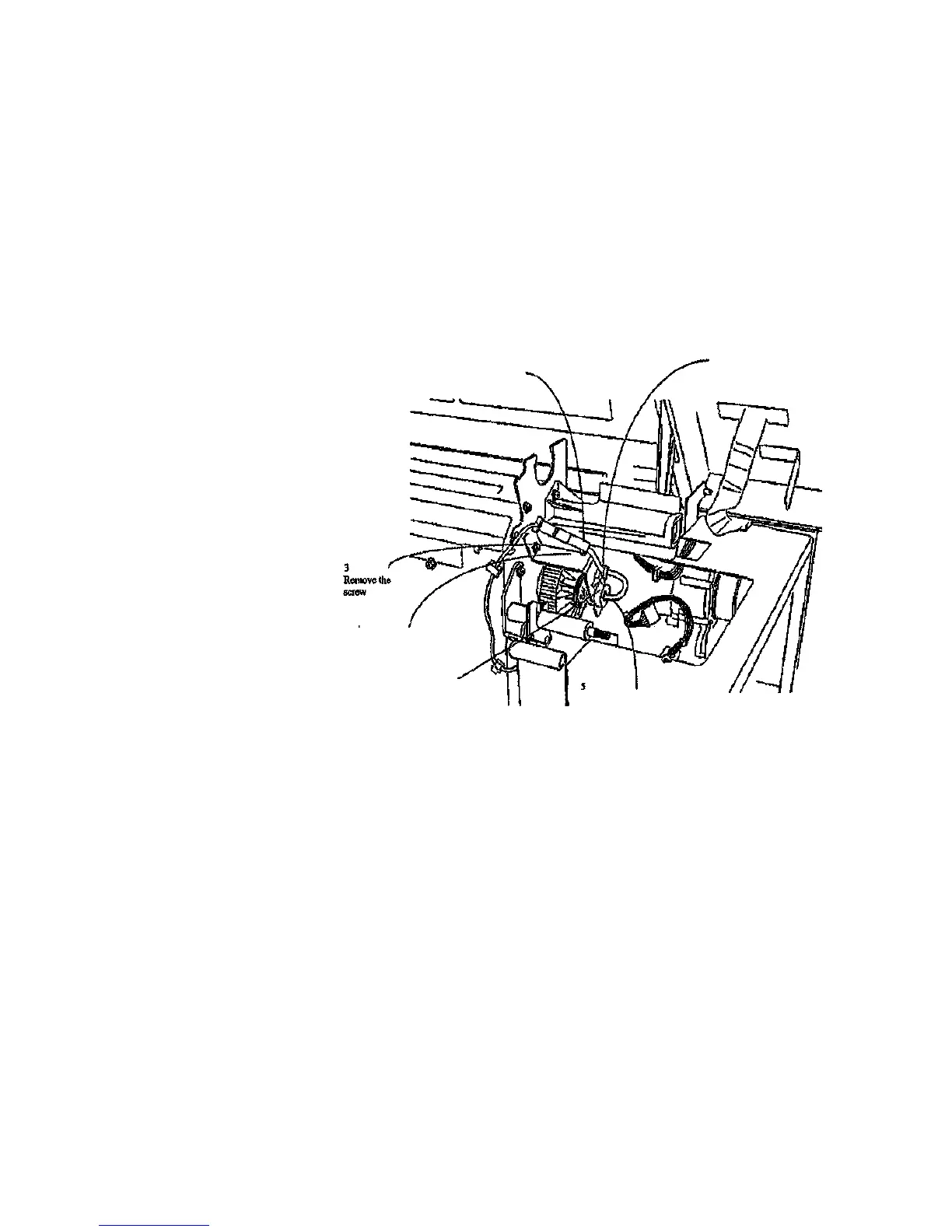

Figure 1. Removing the Bracket and Grommet (Right Side)

8830

1/98

4-83

REP 10.1

Xerox 8830 Service Manual
