Xerox 8830 Service Manual

REP 8.11 Sheet Feed Switch
Parts List on PL 8.4
WARNING
Switch off the Main Power Switch. Disconnect the
Power Cord.
Removal
1. Latch the Xerographic Module at the Service
Position (REP 9.2).
2. Remove the Media Transport Assembly (REP
8.1).
3. Remove the Fabric Guide (REP 8.9).
4. Remove the Pressure Plates (REP 8.5).
5. Remove the Front Pivot Assembly using REP
8.2.
6. Remove the Sheet Drive Roll (REP 8.6).

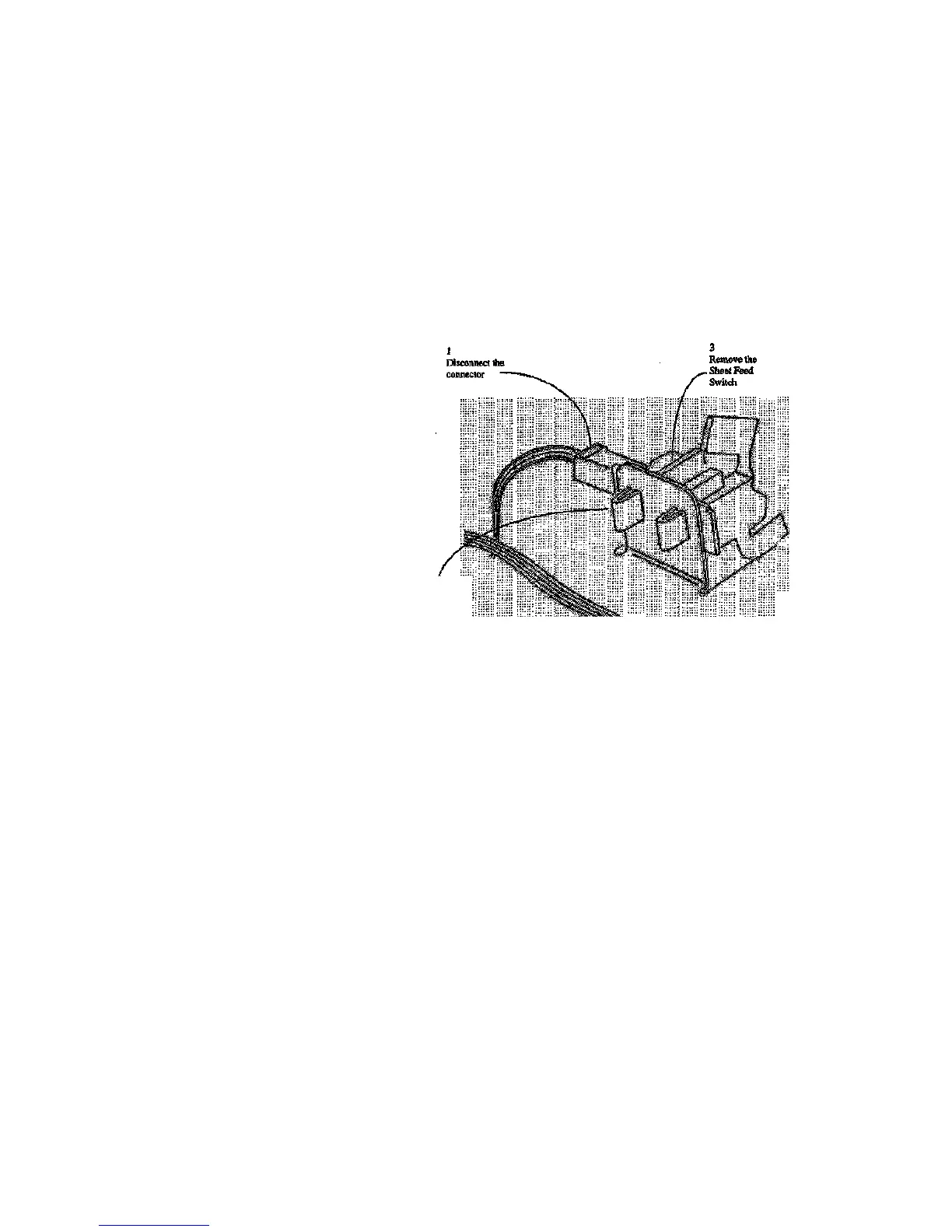

7. (Figure 1): Remove the Sheet Feed Switch.
2
Squeeze the tabs
R3024K
Figure 1. Removing the Sheet Feed Switch
REP 8.11
1/98
4-32
8830
