REP 7.9 Roll Drive Motor

Parts List on PL 7.2

WARNING

Switch off the Main Power Switch.

Disconnect the Power Cord.

Removal

1. Loosen the screws and open the Rear Door.

2. (Figure 1): Remove the Roll Drive Motor

Assembly.

3. (Figure 2): Remove the bracket from the

Roll Drive Motor.

Remove the Roll

Drive Motor

Assembly

Move the bracket

and disconnect the

chain from the

drive sprocket

Loosen the

screws (2)

Remove the

screws (2)

R01940

Remove the bracket from

the motor

Remove the

screws (4)

R01868

Figure 2. Removing the Roll Drive Motor

Bracket

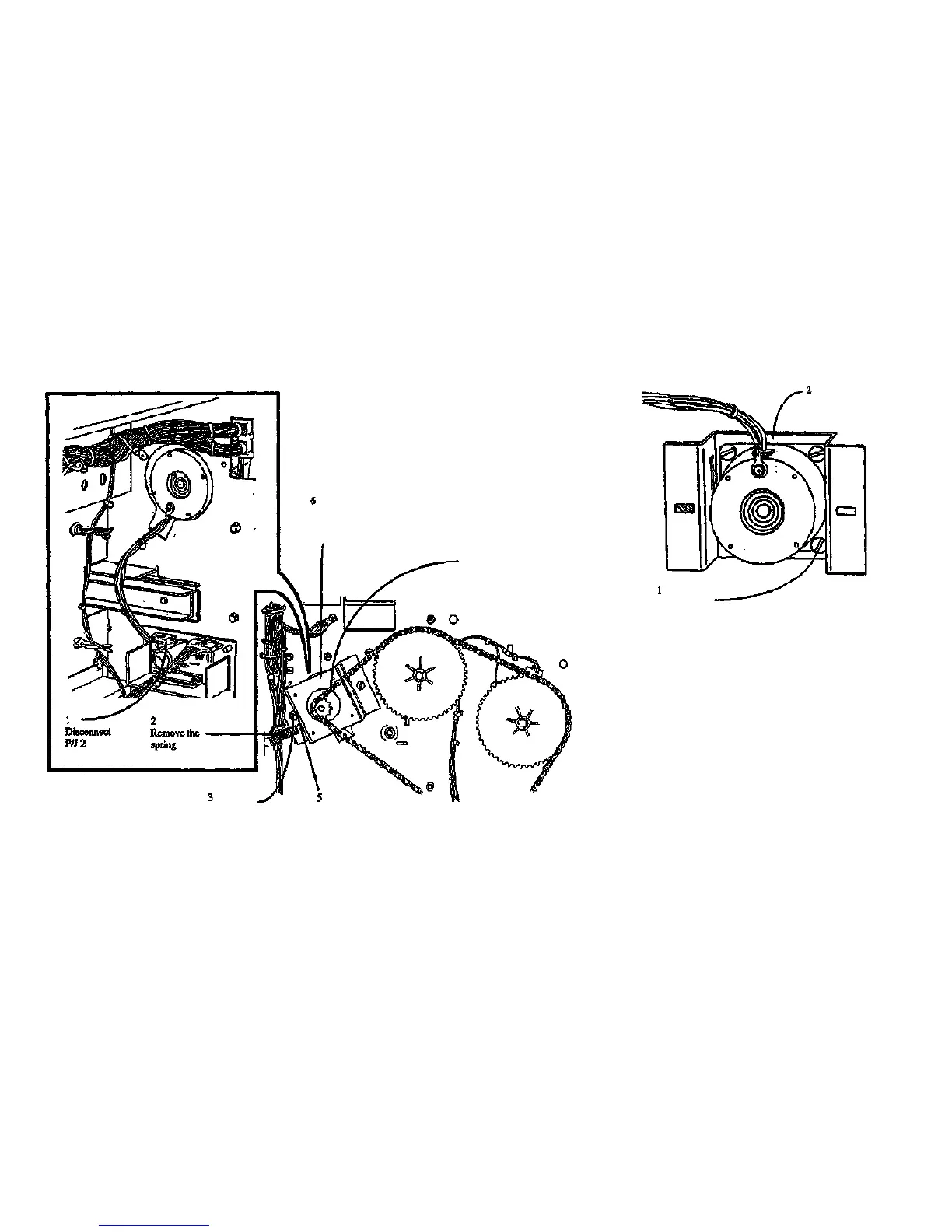

Figure 1. Removing the Roll Drive Motor Assembly

REP 7.9

1/98

4-12

8830
