Xerox 8830 Service Manual

REP 9.13 Sump Shield
Parts List on PL 9.9
WARNING
Switch off the Main Power Switch. Disconnect the
Power Cord.
NOTE: The art used for this procedure was
developed for previous products and may not match
the 8830 configuration exactly.
Removal
1. Remove the Developer Module (REP 9.5).
2. (Figure 1): Remove the Sump Shield.
Remove the
Sump Shield
Remove the Sump Shield
from under the edge (full
length)

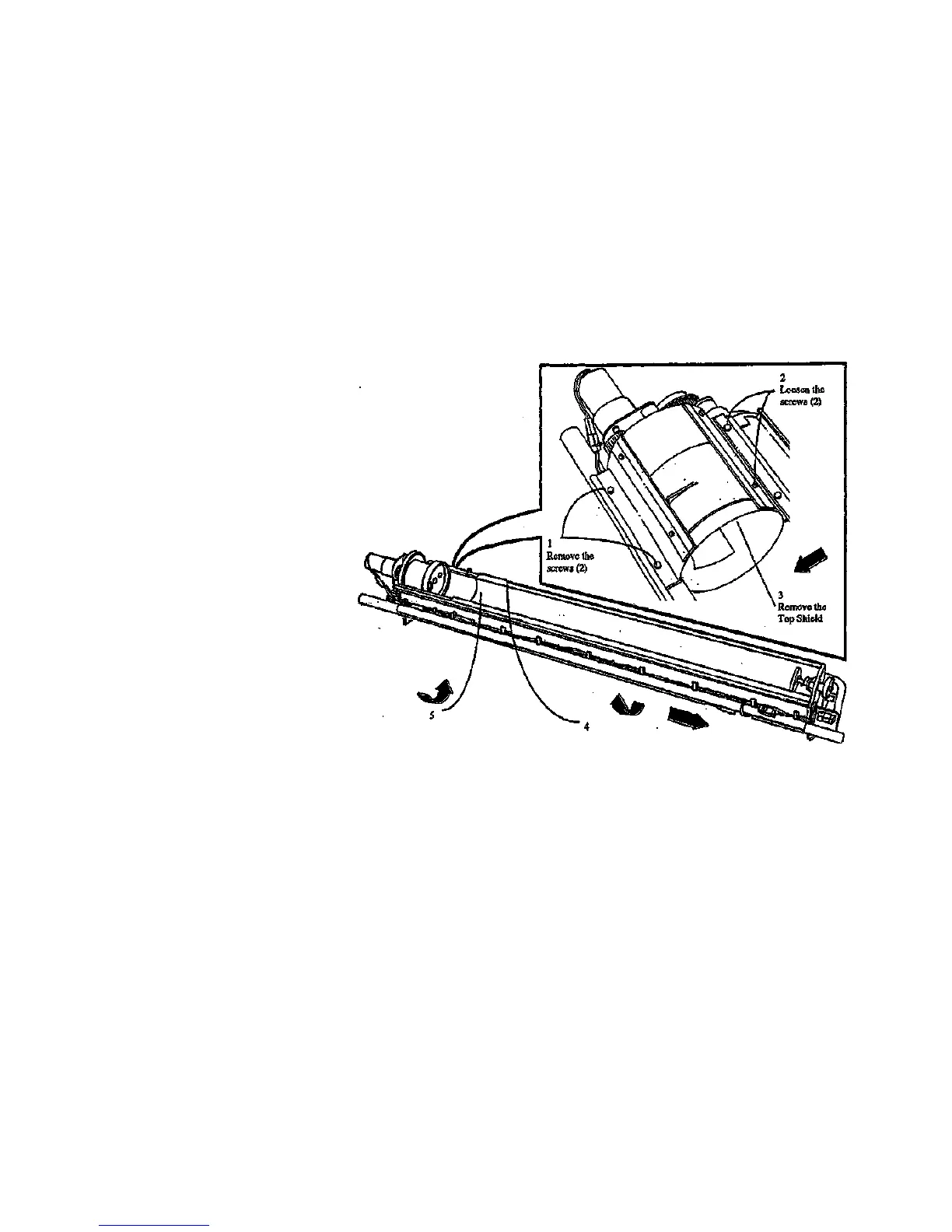

Figure 1. Removing the Sump Shield from the Developer Module
REP 9.13
1/98
4-70
8830
R1626
