Xerox 8830 Service Manual

SCSI
Returning to Normal Configuration
If the Scanner is used with a controlling device other than the Xerox
Productivity Centre (XPC) or the ES8150 System Interconnection
Module (SIM), connect the Scanner as it was before configuring for
diagnostics.
If the Scanner is used with the XPC or the ESB150 SIM, do the following Connector -
steps: SCAN PWB
1. Exit from the diagnostic software.
2. Switch off the Scanner and the XPC/SIM.
3. (Figure 6-2): Disconnect the Scanner SCSI cable from the SCSI port
on the Ul.
4. Connect the Scanner SCSI cable to:
a. the SCSI B connector on the TURBO PWB if a TURBO PWB is
installed.
b. the SCSI connector on the SCAN PWB, if a TURBO PWB is not
installed.
5. Connect the short SCSI cable from the Green Spring PWB to the
SCSI port on the Ul.
6. Switch on the Scanner.
7. Switch on the XPC/SIM.
Short SCSI
Cable
Green Spring PWB
Interconnection
Module (IM)
TURBO PWB
0001073A-CO8

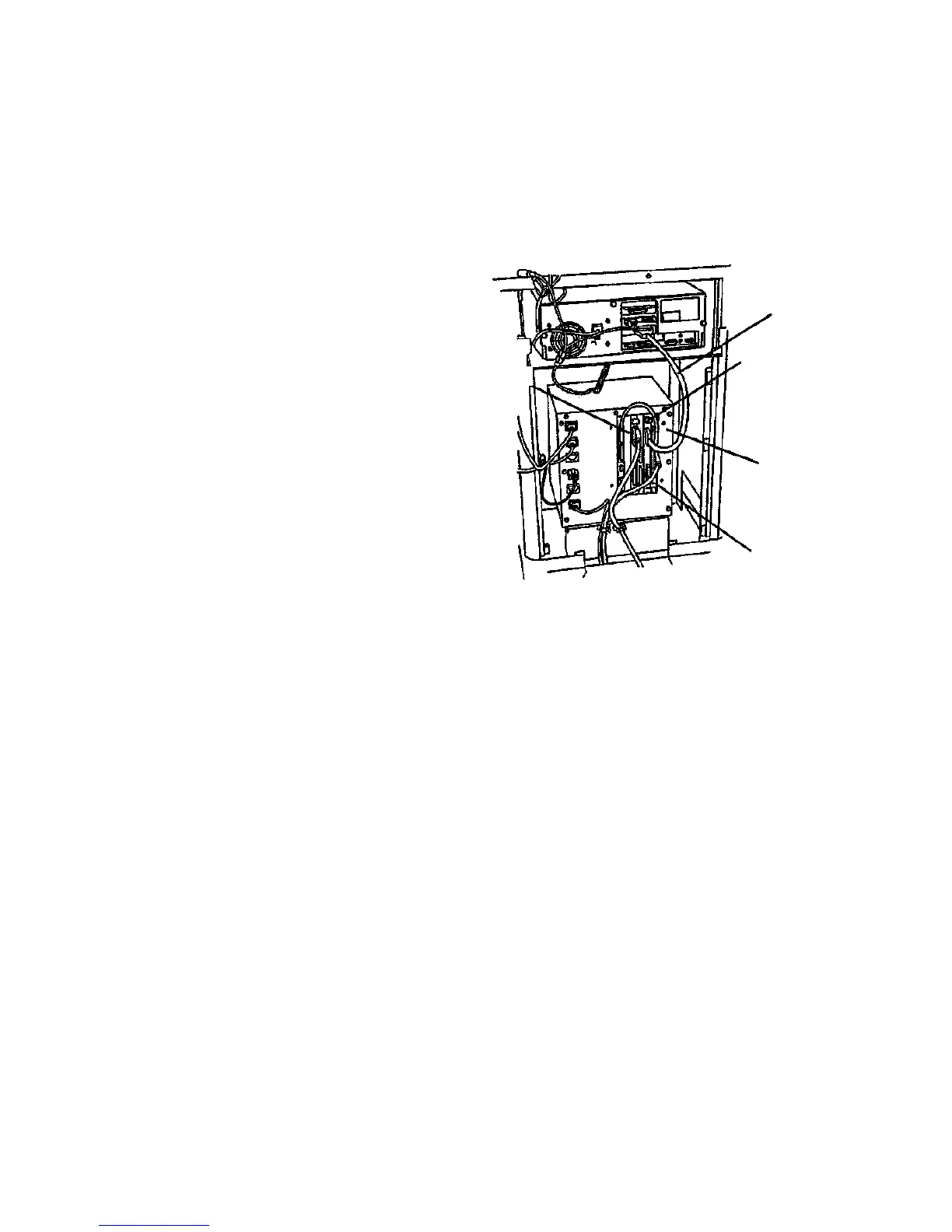

Figure 6-3. Normal Cable Connections - XPC
7356 Scanner
4/97
6-5
Diagnostics
