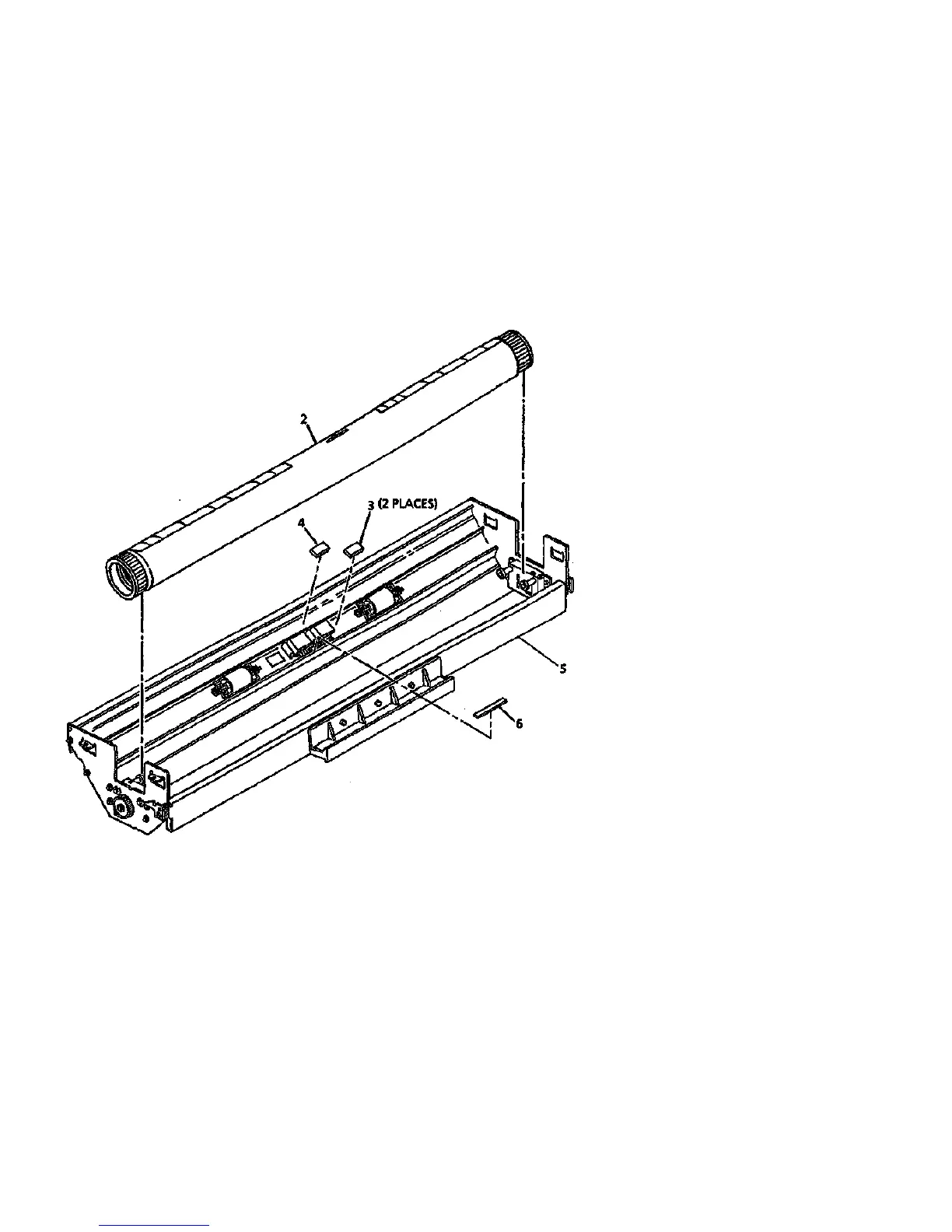

PL 7.6 ROLL SUPPLY DRAWER COMPONENTS (PART 4 OF 4)
1(3-6
ITEM
1
2
3
4
S
6
PART
--
52K3580
92E22541
92E36431
92E22560
DESCRIPTION
PART OF ROLL SUPPLY
DRAWER ASSEMBLY
(REF: PL7.1 ITEM 3)
ROLL SUPPORT
TUBE ASSEMBLY
LABEL (PUSH HERE)
LABEL (MEDIA LEAD)
DRAWER FRAME
(P/O ITEM 1)
LABEL (PINCH ARROWS)
0000012A-RNO
8830
2/97
5-13
PARTS LIST SECTION
PL 7.6
