Xerox 8830 Service Manual

REP 7.7 Motion Sensor
Parts List on PL 7.2
WARNING
Switch off the Main Power Switch.
Disconnect the Power Cord.
Removal
1. Loosen the screws and open the Rear Door.
2. Remove the Rewind Clutch (REP 7.6).
3. (Figure 1): Remove the Motion Sensor.
Replacement
1. Reinstall the Motion Sensor and the Rewind
Housing.
2. (Figure 2): Reinstall the Encoder Disk.
1
Disconnect the
connector
4
Remove the Rewind
Housing
Press the Motion
Sensor tabs outward
through the slots
Remove the
Motion Sensor
Ensure that the slot
in the Encoder Disk
• aligns with the pin
in the shaft
Reinstall the
Encoder Disk
Remove the
screws (3)
1
Align the open slot in (he
Encoder Disk with the
opening in the housing
Figure 2. Reinstalling the Encoder Disk
2
Remove the
Encoder Disk
R01863

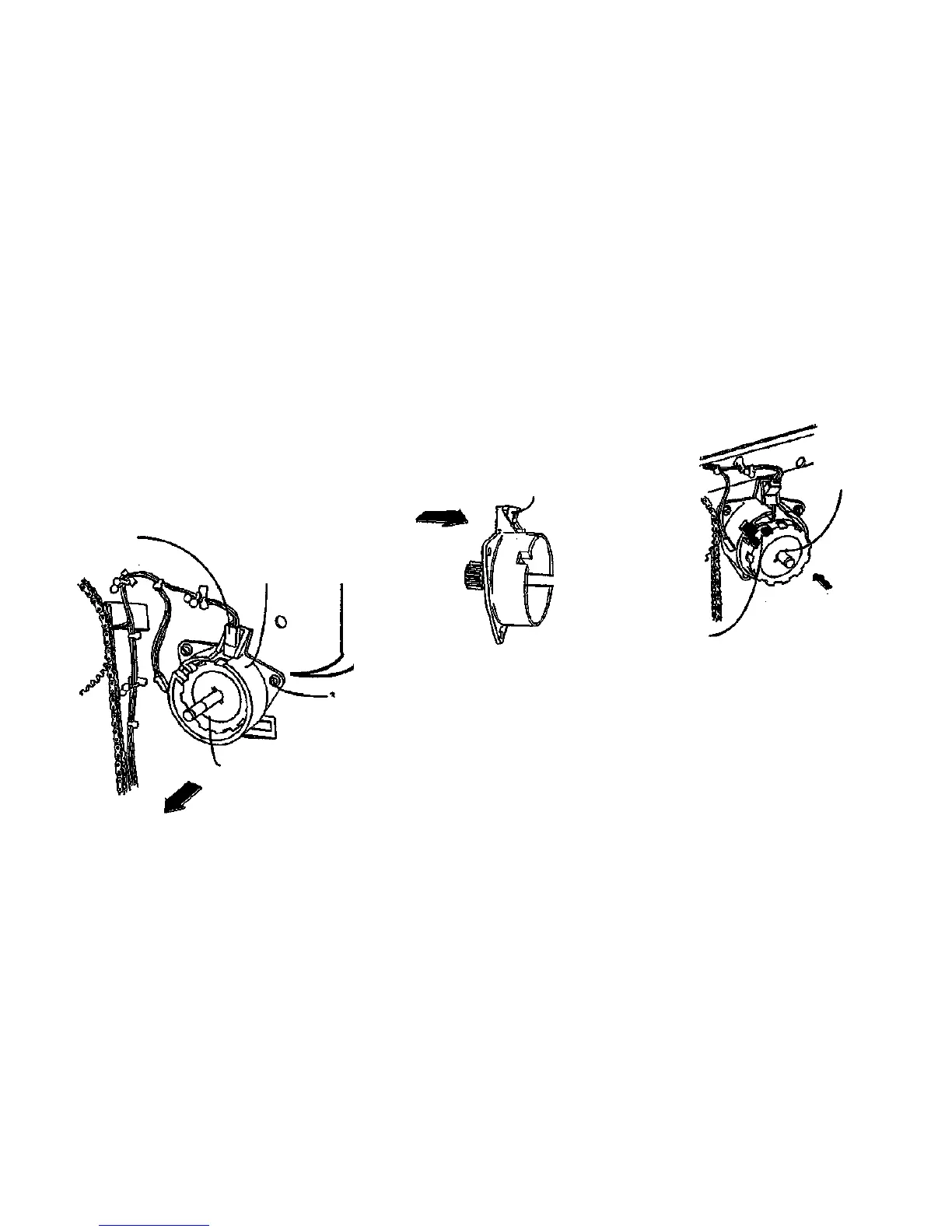

Figure 1. Removing the Motion Sensor
1/98
4.11
REP 7.7
