REP 9.7 Developer Material
Parts List (Refer to Other Tools and Supplies,
Machine Consumables, Section 6.)
WARNING
Switch off the Main Power Switch. Disconnect the
Power Cord.
NOTE: The art used for this procedure was
developed for previous products and may not match
the 8830 configuration exactly.
Removal
1. Remove the Developer Module (REP 9.5).
CAUTION
Do not rotate the Developer Module in the vertical
position. This may cause Developer Material to get
into the Toner Cartridge Clutch (located at the end of
the Developer Module).
2. Place the Developer Module on a drop cloth on
the floor.

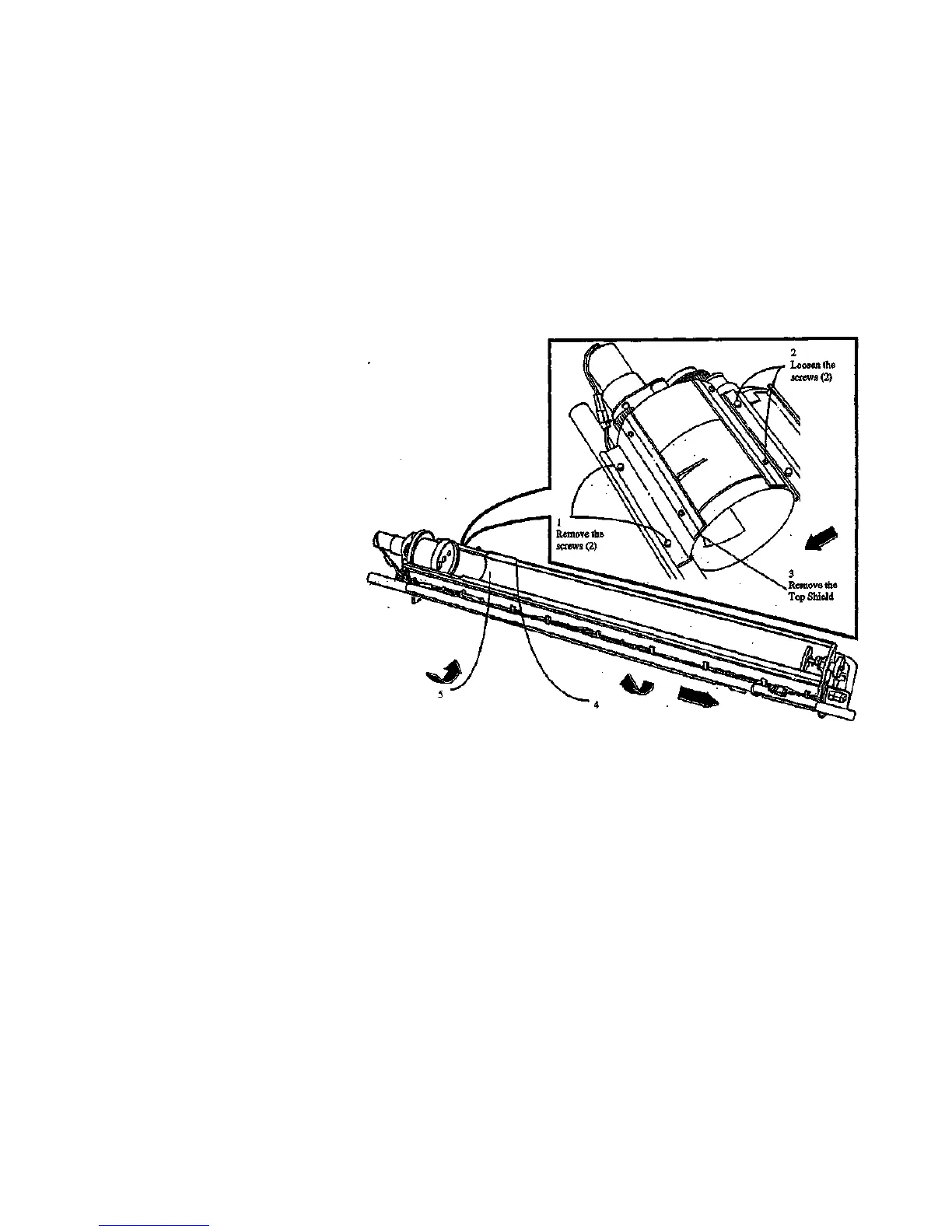

3. (Figure 1): Remove the Sump Shield from the
Developer Module.
Remove the
Sump Shield
Remove the Sump Shield
from under the edge (full
length)
Figure 1. Removing the Sump Shield from the Developer Module
REP 9.7
1/98
4-58
8830
