REP 10.2 Heat Roll
Parts List on PL 10.2
WARNING
Switch off the Main Power Switch. Disconnect the
Power Cord. Allow the Fuser Assembly to cool
before the procedure is performed.
NOTE: The art used for this procedure was
developed for previous products and may not match
the 8830 configuration exactly.
Removal
1. Remove the Stripper Finger Assembly.
2. Perform the Xerographic Module procedure
(REP 9.1) through Step 11. This will leave the
Xerographic Module at the Service Position,
handles installed, and the Drum Assembly
removed.
3. Remove the Heat Rod (REP 10.1).
WARNING
Wear protective gloves when handling parts with
silicon oil on them. Do not allow silicon oil to
contact your eyes. Silicon oil can cause severe eye
irritation. Wash your hands immediately after
handling any component covered with silicon oil.

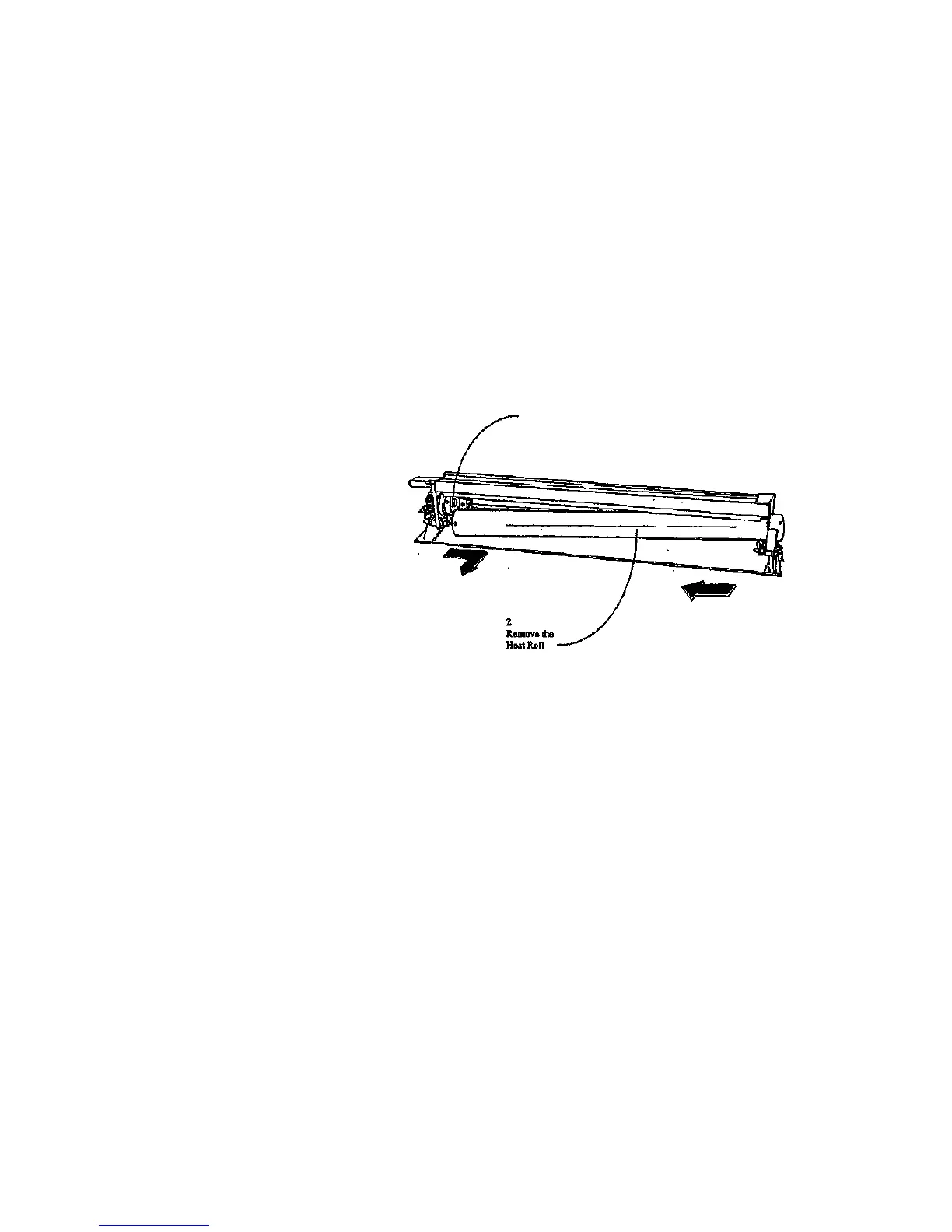

4. (Figure 1): Remove the Heat Roll.
Push the pin while
removing the Heat
Roll from the Hub
Assembly
View from Right Side
of Printer, Top Cover
removed for clarity
Figure 1. Removing the Heat Roll
8830
1/98
4-87
REP 10.2
