Xerox 8830 Service Manual

REP 7.11 Encoder Disk
Parts List on PL 7.2
WARNING
Switch off the Main Power Switch.
Disconnect the Power Cord.
Removal
1. Loosen the screws and open the Rear Door.
2. Remove the Rewind Clutch (REP 7.6).
3. (Figure 1): Remove the Encoder Disk.
Replacement
1. Reinstall the Motion Sensor and the Rewind
Housing.
2. (Figure 2): Reinstall the Encoder Disk.
Ensure that the slot
in the Encoder Disk
aligns with the pin
in the shaft
1
Align the open slot in the
Encoder Disk with the
opening in the housing
R01865

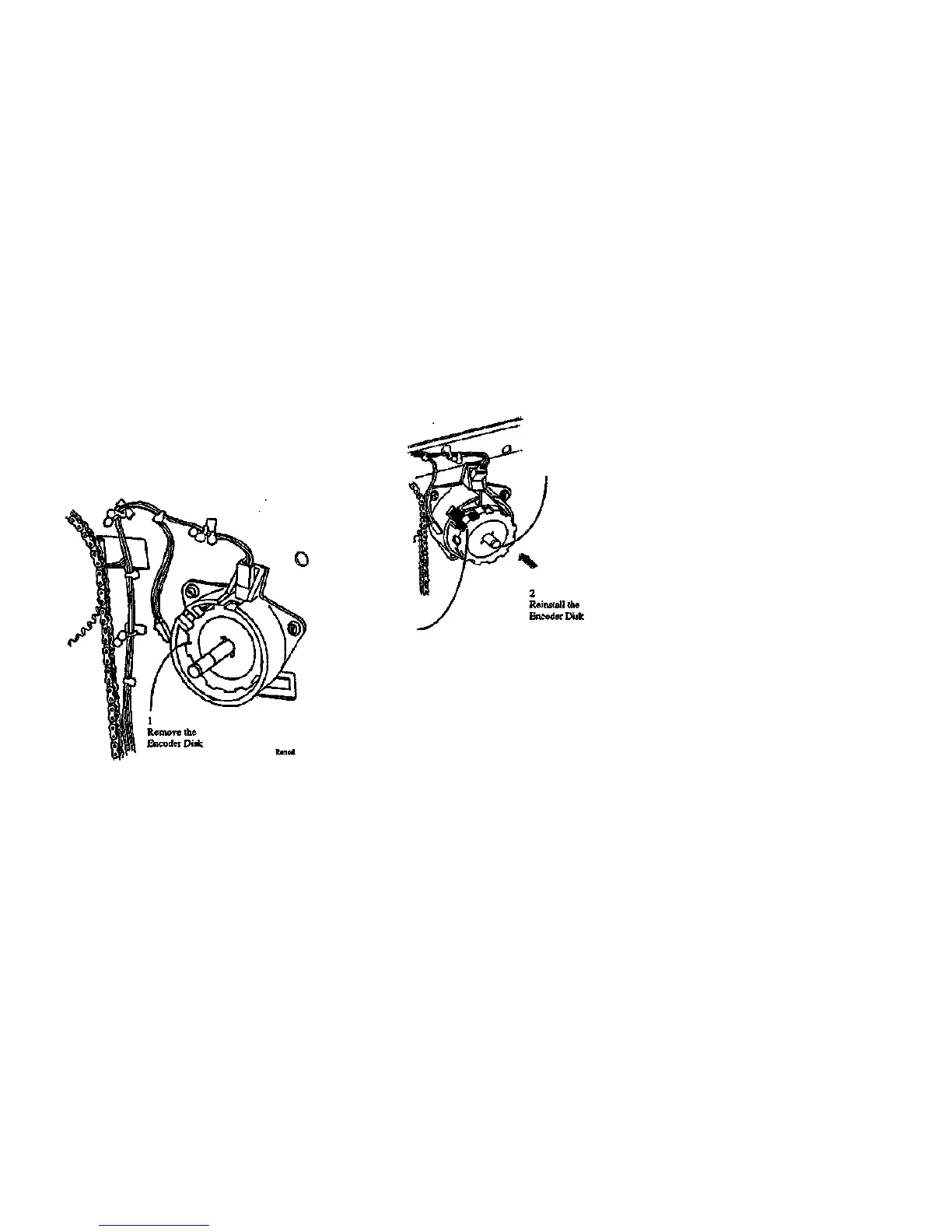

Figure 2. Reinstalling the Encoder Disk
Figure 1. Removing the Encoder Disk
8830
1/98
4-15
REP 7.11
