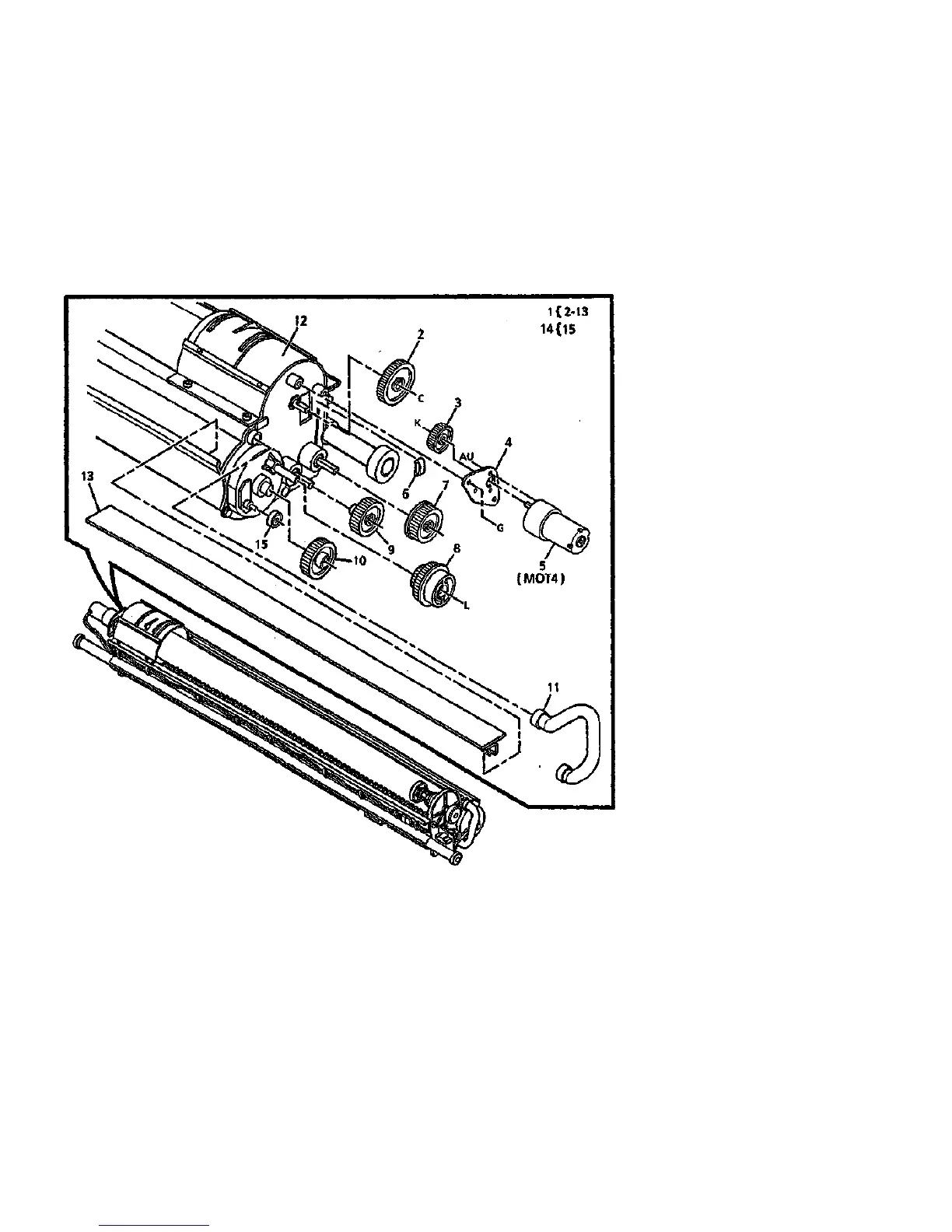

PL 9.10 DEVELOPER MODULE COMPONENTS (PART 2 OF 2)
ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART
--
7E16330
7E16341
127K22600
120E4750
7E14690
7K5260
7E14700
7E14710
54E3491
35K4581
600K58720
-
DESCRIPTION
PART OF DEVELOPER
MODULE ASSEMBLY
(REF: PL9.8 ITEM 12)
CARTRIDGE GEAR (44T)
CARTRIDGE DRIVE
GEAR (26T)
MOTOR MOUNTING PLATE
(P/O ITEM 1)
CARTRIDGE DRIVE MOTOR
(MOT4) (REP 9.6)
CABLE CLIP
AUGER DRIVE GEAR (37T)
DEVELOPER DRIVE
GEAR (43T/25T)
AUGER DRIVE GEAR (37T)
MAGNETIC ROLL DRIVE
GEAR (40T)
PRESSURE EQUALIZER
TUBE (REP 9.18)
DEVELOPER FRAME
(P/O ITEM 1)
SEAL
DRS ROLLER KIT
ROLLER (P/O ITEM 14)
0000027A-RNO
8830
2/97
5-31
PARTS LIST SECTION
PL 9.10
