Xerox 8830 Service Manual

REP 4.1.16 Power Supply
Parts List on PL 1.1
Removal
WARNING
High Voltage
Switch off the Scanner and disconnect the Power
Cord.
1. Remove:
• Rear Panel (REP 4.1.2)
• Power Distribution PWB (REP 4.1.15)
2. (Figure 1) Disconnect Connector P1.
.Connector PI

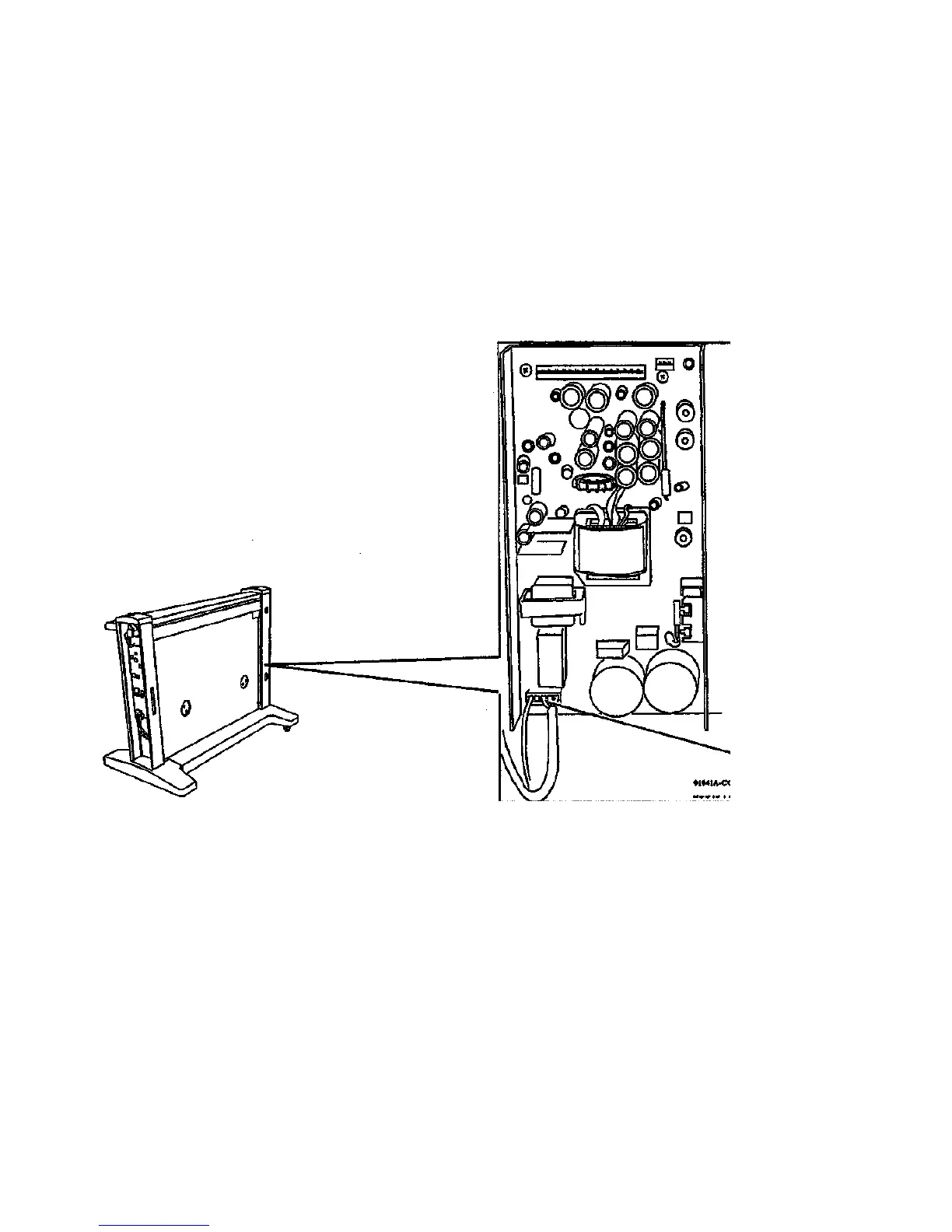

Figure 1. Power Supply
REP 4.1.16
4/97
4-26
7356 SCANNER
