Xerox 8830 Service Manual

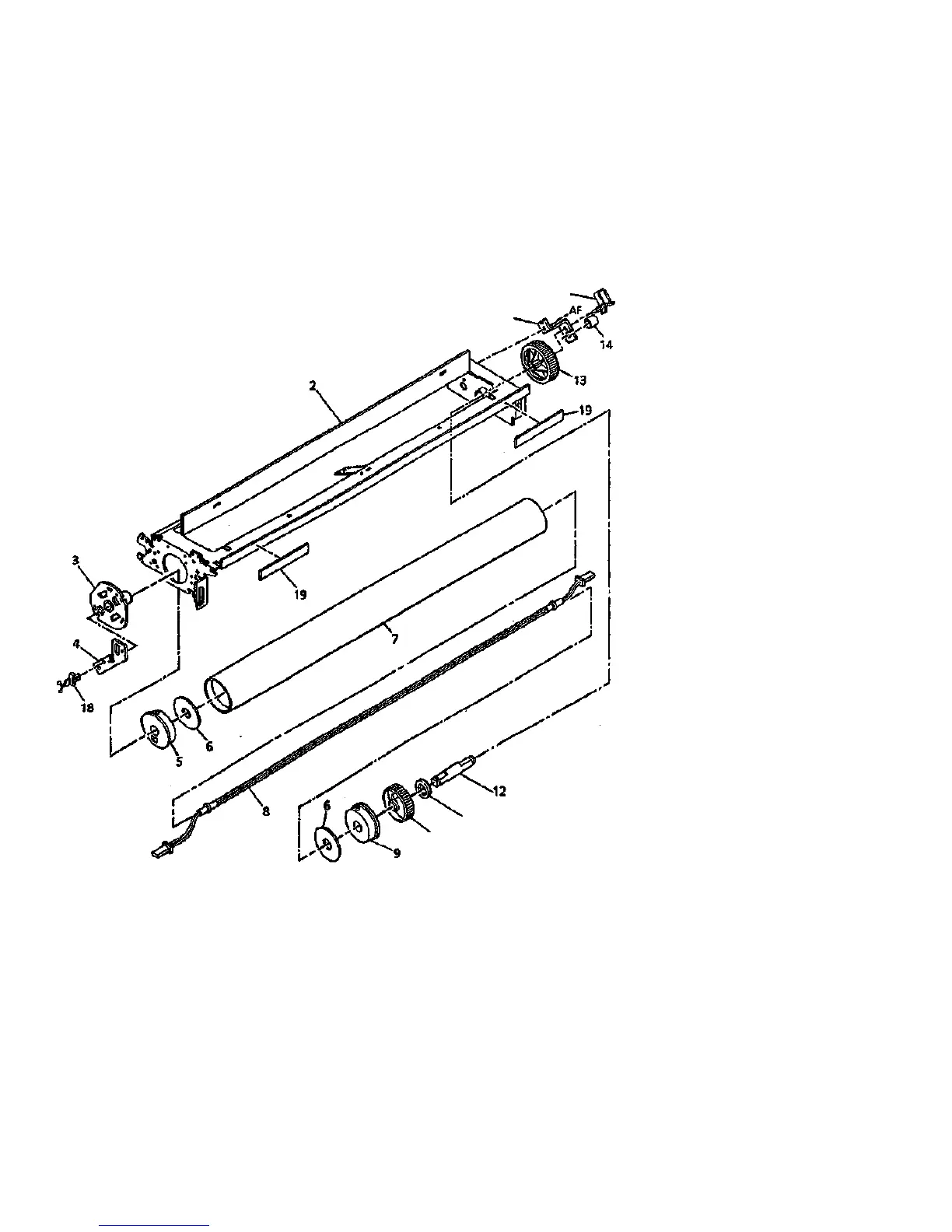

PL 10.2 FUSER COMPONENTS
1(2-8,10,13,15,17,18,19
16{ 9,11,12
17-
15-
11
ITEM
1
2
3
4
5
6
7
8
-
9
10
11
12
13
14
15
16
17
18
19
PART
--
5K3430
5K2613
62E5461
22K40050
126E492
126E821
—
7E42570
115E2231
6E23471
7E42780
16E8080
49E6460
600K45270
120E5440
120E6510
121E1402
DESCRIPTION
PART OF XEROGRAPHIC
MODULE ASSEMBLY
(REF: PL10.1 ITEM 1)
XEROGRAPHIC FRAME
(P/O ITEM 1)
FUSER HUB
LH LAMP BRACKET
(P/O ITEM 1)
LH FUSER BEARING
REFLECTOR
FUSER HEAT ROLL
(REP 10.2)
FUSER HEAT ROD
(60HZ) (REP 10.1)
FUSER HEAT ROD
(50HZ) (REP 10.1)
RH FUSER BEARING
(P/O ITEM 16)
EXIT DRIVE GEAR
GROUND RING
FUSER DRIVE SHAFT
FUSER GEAR (80T)
GROMMET
RH LAMP BRACKET
FUSER DRIVE SHAFT KIT
CLIP
TWIST TIE CLAMP
MAGNET
10
0000029A-RNO
8830
9/97
5-33
PARTS LIST SECTION
PL 10.2
