Xerox 8830 Service Manual

REP 4.1.1 Right and Left Side Pane!
Parts List on PL 14.2
Removal
WARNING
Switch off the Scanner and disconnect the Power
Cord.
Note: The Right Side Panel procedure is shown. The Left Side Panel is
removed in the same way.

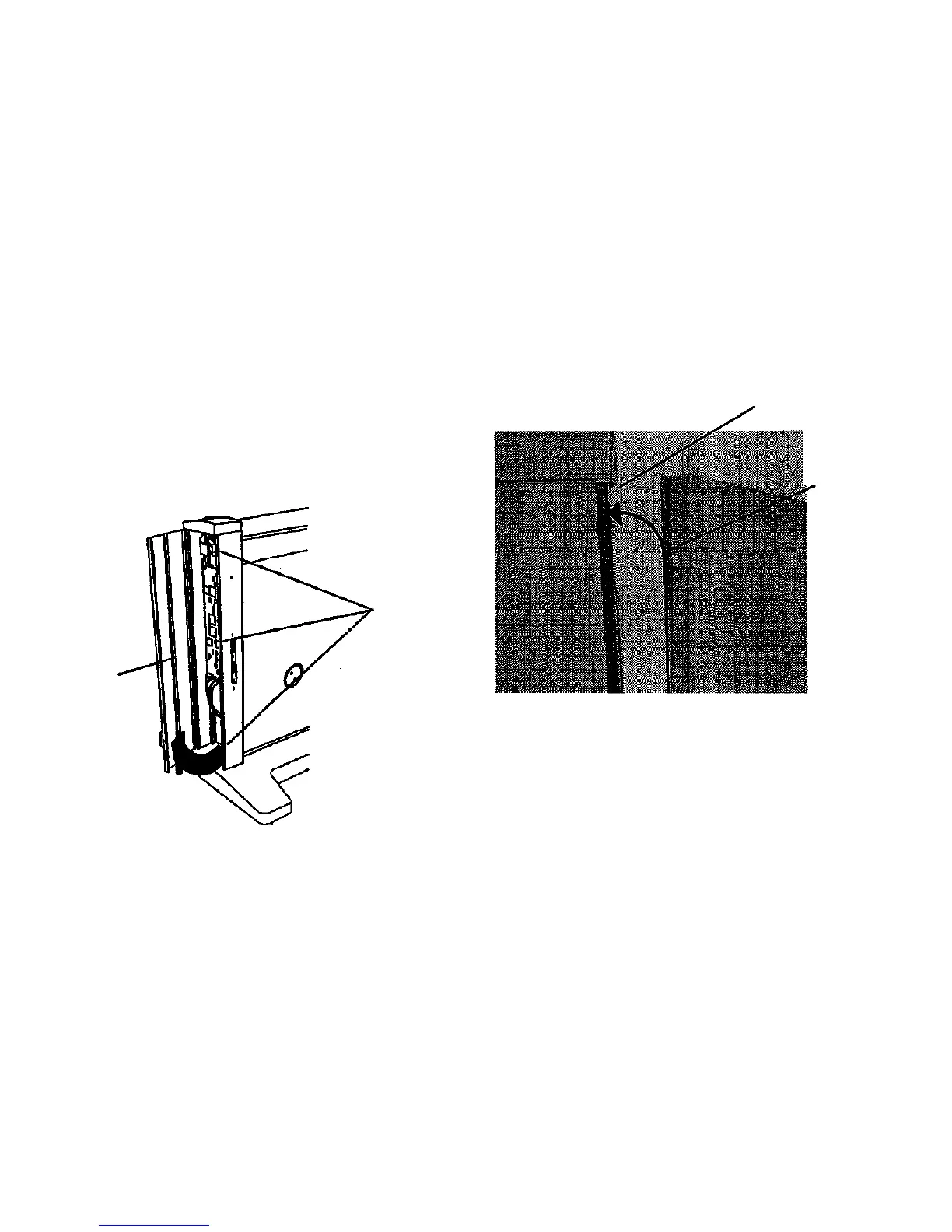

1. (Figure 1): Remove the Right Side Panel.
B
Rotate the
panel outward
and remove it
A
Remove the 3
screws
REAR VIEW
Installation
1. (Figure 2): Engage the hinge edge of the Side Panel.
2. Close the panel.
3. (Figure 1): Install the 3 screws. Hinge Edge
Side Panel
Figure 2. Installing a Side Panel
01051A-COB
Figure 1. Removing a Side Panel
7356 SCANNER
4/97
4-3
REP 4.1.2
