Xerox 8830 Service Manual

REP 7.2 Rewind Gear and
Rewind Internal Gear
Parts List on PL 7.3
WARNING
Switch off the Main Power Switch.
Disconnect the Power Cord.
NOTE: All three Rewind Gears and Rewind
Internal Gear Assemblies are removed the same
way.
Removal
1. Pull out the Media Supply Drawer.
2. Remove the roll of media.
3. (Figure 1): Remove the Rewind Gear and
the Rewind Internal Gear.
Remove the
E-ring
Remove the Rewind
Internal Gear
Remove the
E-ring

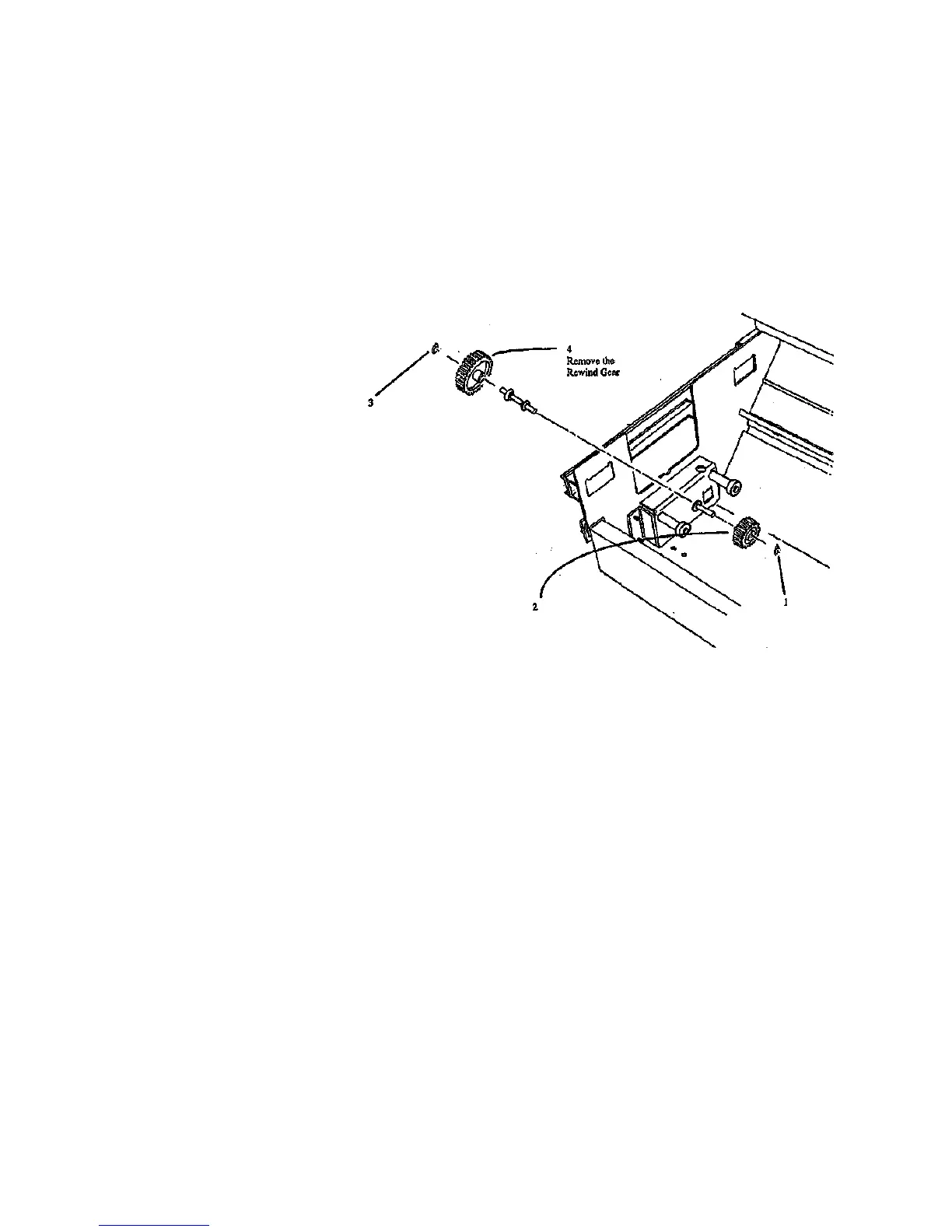

Figure 1. Removing the Rewind Gears
REP 7.2
1/98
4-6
8830
R01809
