REP 9.1 Xerographic Module
Parts List on PL 9.1,10.1
WARNING
Switch off the Main Power Switch. Disconnect the
Power Cord.
Removal
1. Loosen the screws and open the Rear Door.
2. Raise and latch the Top Cover.
3. Lift and rotate the Image Module to the Service
Position.
4. Lower the Media Transport Cover.
NOTE: Figure 1 shows only the Front Support
Bracket.

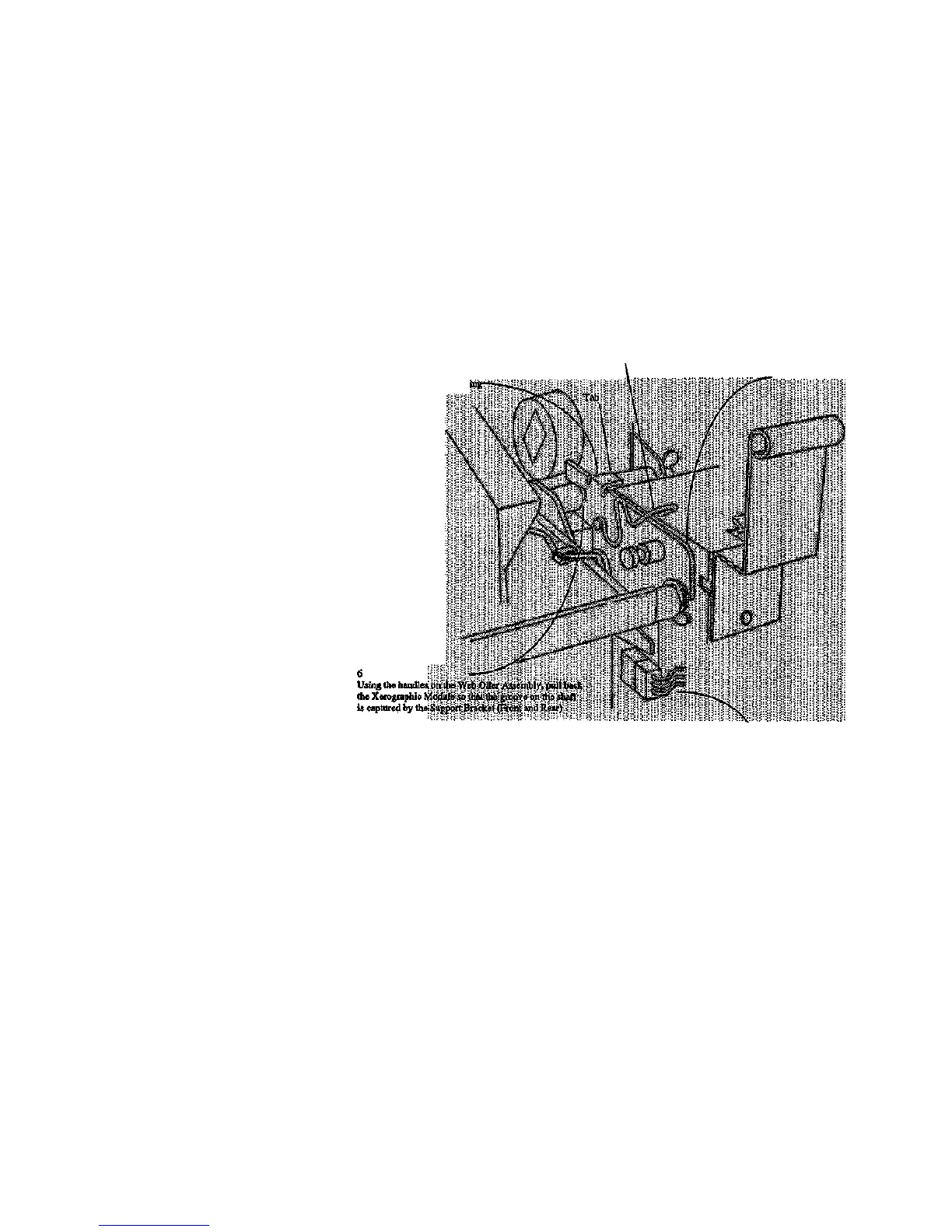

5. (Figure 1): Prepare the Front and Rear Support
Brackets for raising the Xerographic Module to
the Service Position.
1
Lift the bracket at the tab in
order to disconnect the spring
2
Pull the spring away from the
shaft
3
Push the bracket down to the
horizontal position
R3001K
5
Perform Steps 1 thru 3 for
the Rear Support Bracket
Figure 1. Preparing the Support Bracket
Disconnect
A23P1
8830
1/98
4-43
REP 9.1
To Next Page
