Set Machine Motor Speed
The Set Machine Motor Speed screen allows up to a 2% change to the
factory determined motor speed.
Wear of the document drive rolls or an unusual thickness of the
document media may cause magnification error in the paper path
direction. The Set Machine Motor Speed parameter allows correction of
this error.
• The Current box shows the motor speed value that exists before
adjustment. A value of 10000 means the factory base value is used.
A value of 10100 means that the ratio of the current speed to the
base speed is 1.01:1.
• The New box allows entry of the new value. Only values between
9800 and 10200 may be entered.
• Selecting the Set button enters the value in the New box. This value
is stored in the NVR.
• Selecting Exit returns to the Read NVR screen.

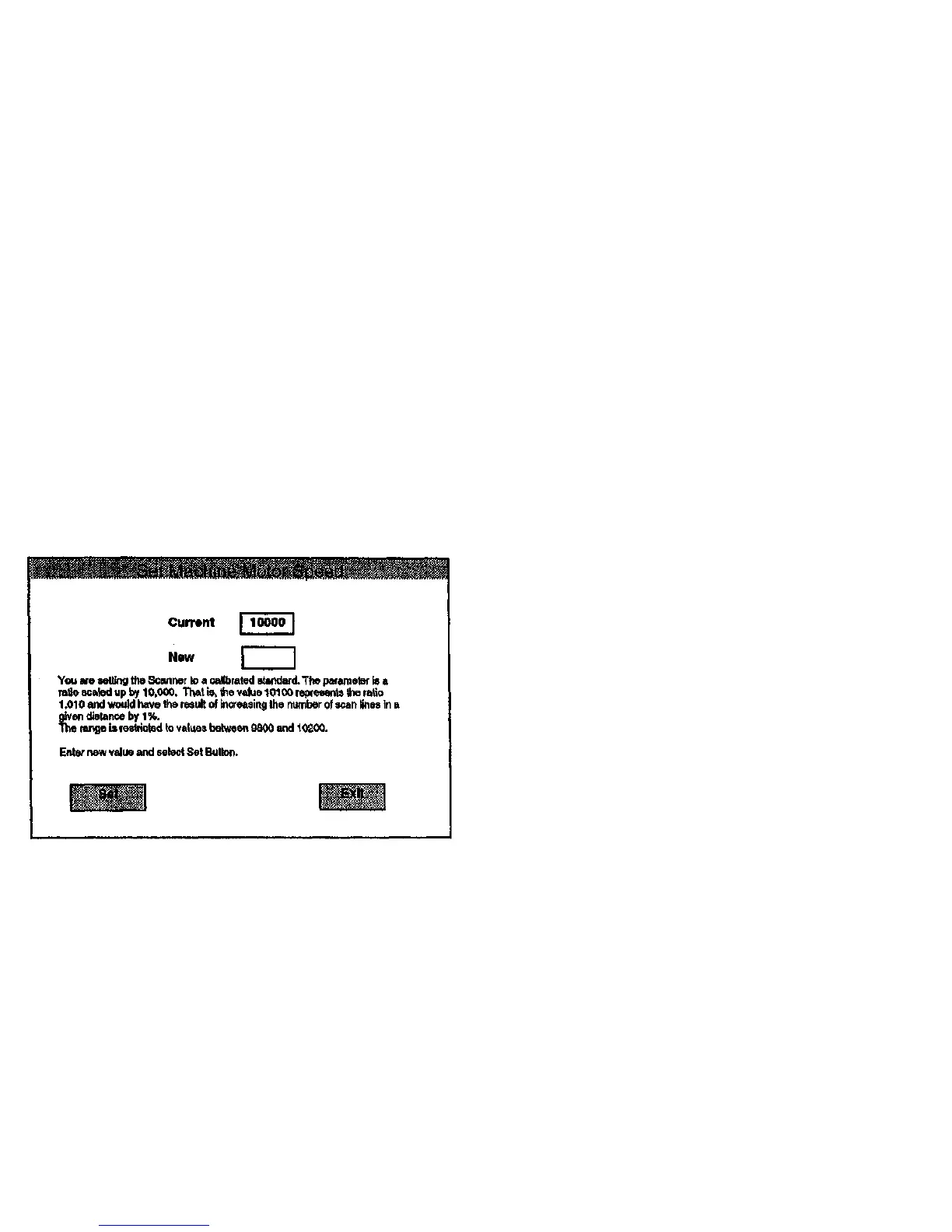

Figure 6-20. Set Machine Motor Speed Screen
Diagnostics
4/97
6-20
7356 Scanner
