REP 10.7 Web Oiler Assembly
Parts List on PL 9.6
WARNING
Switch off the Main Power Switch. Disconnect the
Power Cord.
Removal
1. Loosen the screws and open the Rear Door.
2. Raise and latch the Top Cover.
3. Ensure that there is a clean, flat surface on which
to place the Web Oiler Assembly after it is
removed.
4. (Figure 1): Remove the Web Oiler Assembly
and place it top down, resting on the handles, on
a flat surface.
Replacement
1. At reinstallation, engage the rear lip of the Web
Oiler Housing over the metal bracket of the
Xerographic Module.
2. After completing the reassembly, enter
diagnostics and perform one of the following
actions.
• If a new Web Oiler has been installed,
initialize the Web Oiler using [1030].
• If the old Web Oiler is still in the assembly,
remove the slack in the web by running
[1033] until the display shows the following:
Holding the handles, rotate the rear
upward, lift, and remove
Loosen the two
thumbscrews
2
Disconnect
P/J 4

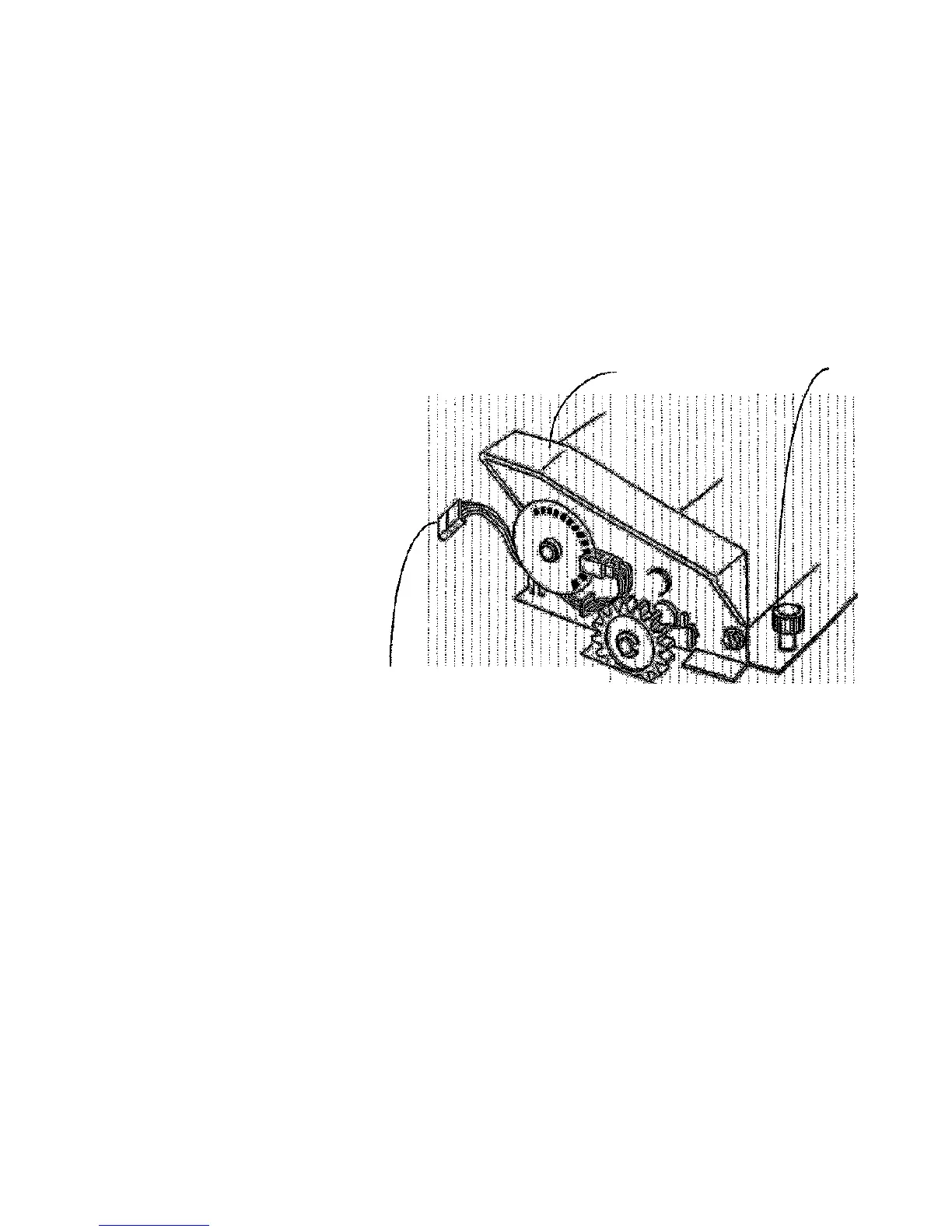

Figure 1. Removing the Web Oiler Assembly
COUNT = 001
8830
1/98
4-89
REP 10.7
To Next Page
