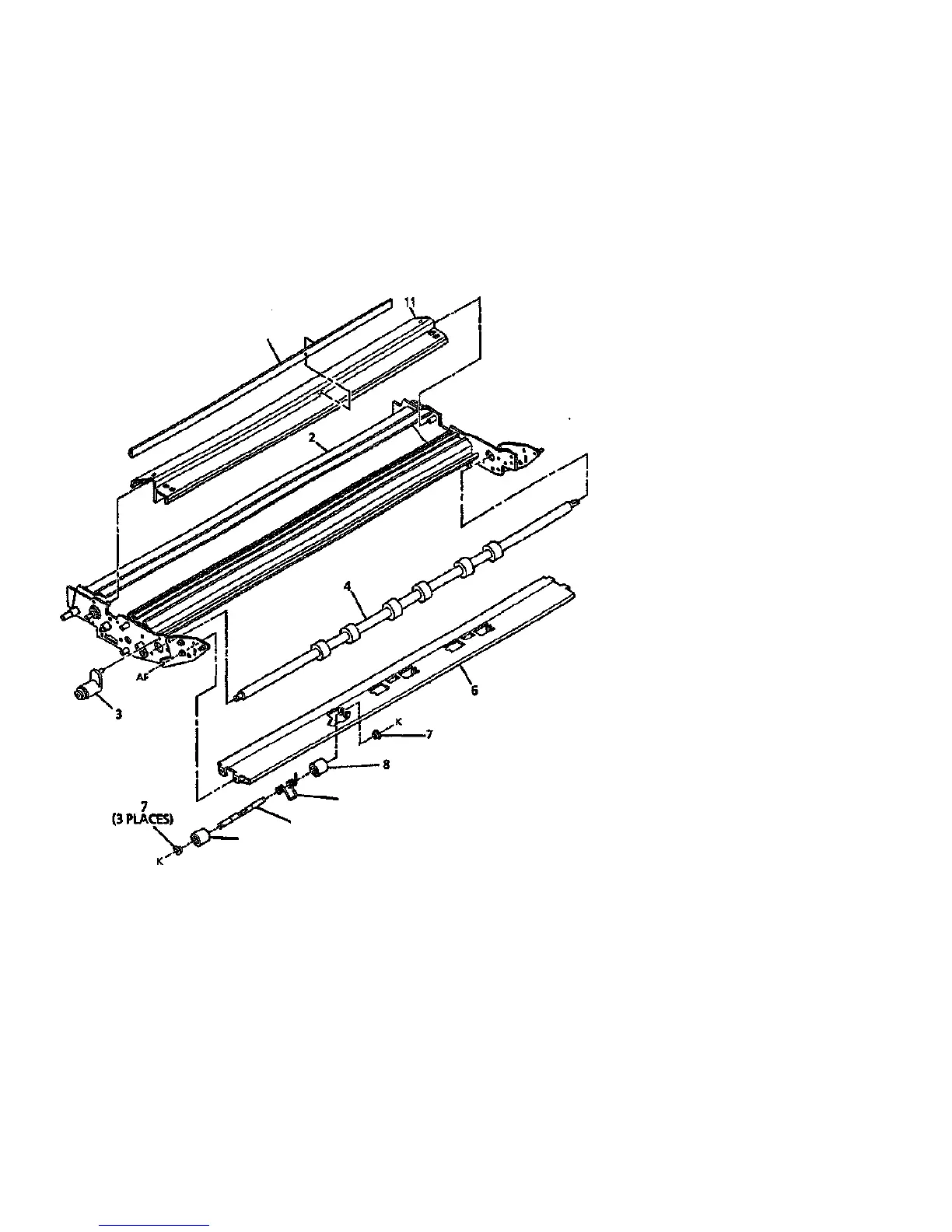

PL 8.3 CUT SHEET FEED COMPONENTS

1 {2-5,11,12

5 {6-10

(3 PLACES)

(3 PUCES)

(3 PLACES)

ITEM

PART

19E14350

6K15681

16E6020

22E9390

9E32490

6E23540

DESCRIPTION

PART OF MEDIA

TRANSPORT ASSEMBLY

(REF: PL8.1 ITEM 4)

MEDIA TRANSPORT FRAME

(P/O ITEM 1)

DRAG BRAKE

SHEET DRIVE ROLL

(REP 8.7)

SHEET SUPPORT

ASSEMBLY (P/O ITEM 1)

SHEET LOWER BAFFLE

(P/O ITEM 5)

BUSHING

SHEET PINCH ROLL

(REP 8.6)

SHEET PINCH SPRING

SHEET PINCH SHAFT

TOP GUIDE (P/O ITEM 1)

SHIELD (P/O ITEM 1)

{3 PLACES)

0000017A-RNO

PARTS LIST SECTION

PL 8.3

2/97

5-18

8630
