Xerox 8830 Service Manual

REP 4.1.8 Left Top Cap
Parts List on PL 14.1
Removal
WARNING
Switch off the Scanner and disconnect the Power
Cord.
1. Remove the Left Side Panel (REP 4.1.1).
2. (Figure 1): Remove the Left Top Cap.
Left Top Cap
A
Loosen
the 2
inner
screws
B
Remove the 2
outer screws and
the cap

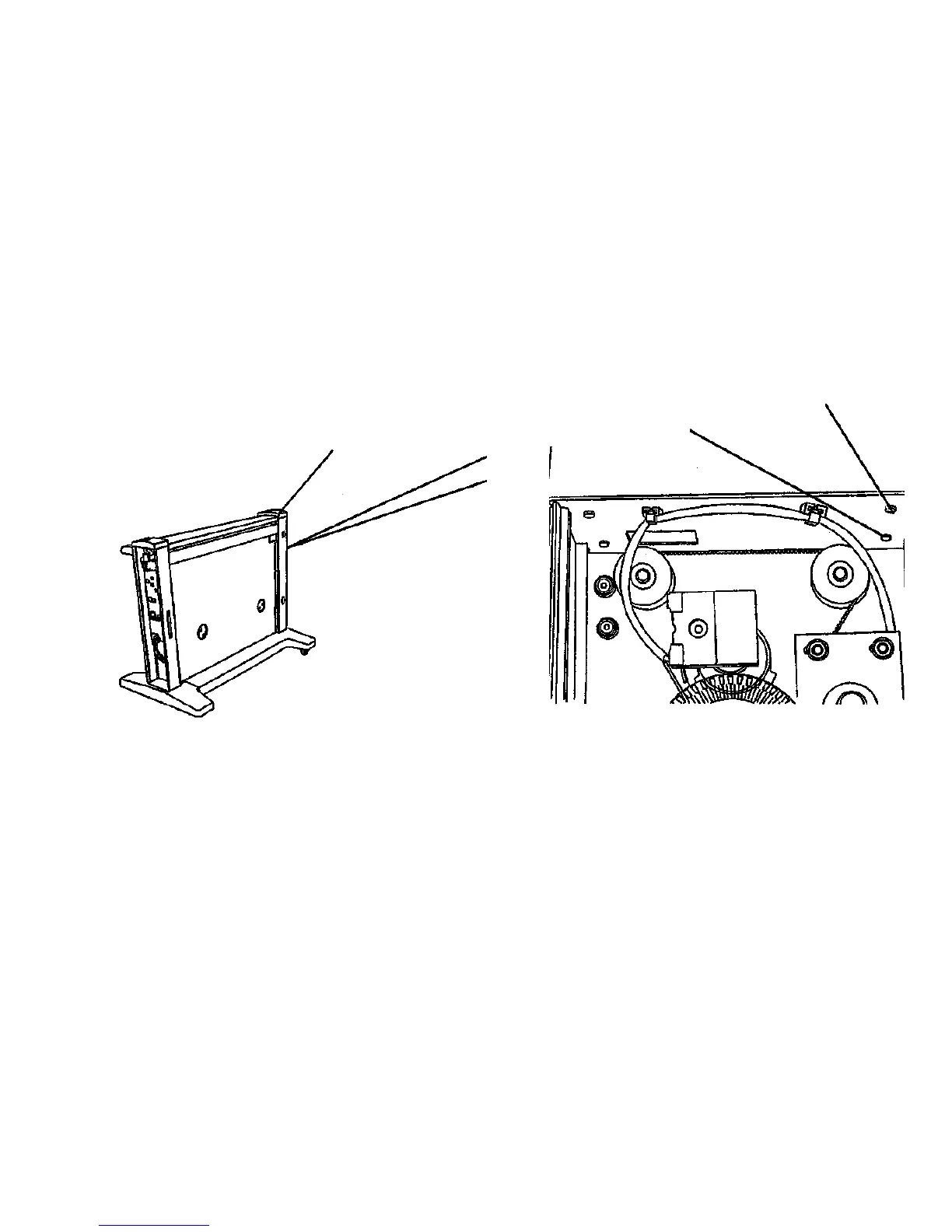

Figure 1. Removing the Left Top Cap
7356 SCANNER
4/97
4-13
