Xerox 8830 Service Manual

REP 9.11 Toner Sensor
Parts List on PL 9.9
WARNING
Switch off the Main Power Switch. Disconnect the
Power Cord.
NOTE: The art used for this procedure was
developed for previous products and may not match
the 8830 configuration exactly.
Removal
1. Remove the Developer Module (REP 9.5).
CAUTION
The Developer Material must be removed before
removing the Toner Sensor, or there will be a mess.
2. Remove the Developer Material (REP 9.7).
3. (Figure 1): Remove the Toner Sensor and the
spacer.
Replacement
1. Reinstall the Toner Sensor and spacer.
CAUTION
If a new Toner Sensor is being installed, new
Developer Material must be installed.
2. Reinstall the Developer Material (REP 9.7).
CAUTION
Do not run prints before calibrating the Toner
Sensor. Running prints before performing the
calibration may cause toner faults or print defects.
3. If a new Toner Sensor has been installed,
perform Toner Sensor Calibration Code [09216].
4. Perform the Electrostatic Series (ADJ 9.2).

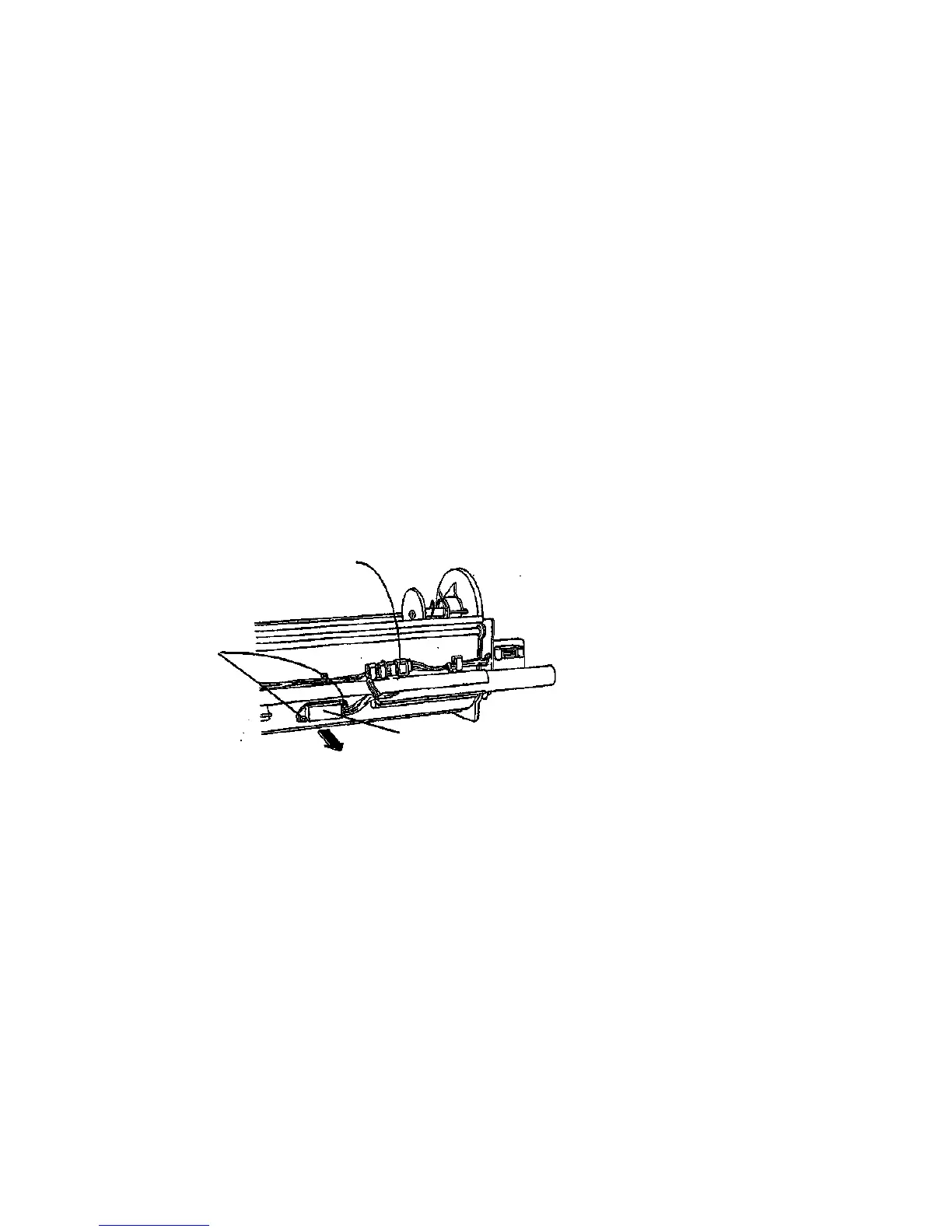

1
Disconnect Q1P1
2
Remove
screws (2)
Remove the Toner Sensor and
spacer.
Figure 1. Removing the Toner Sensor
8830
1/98
4-67
REP 9.11
R1489
