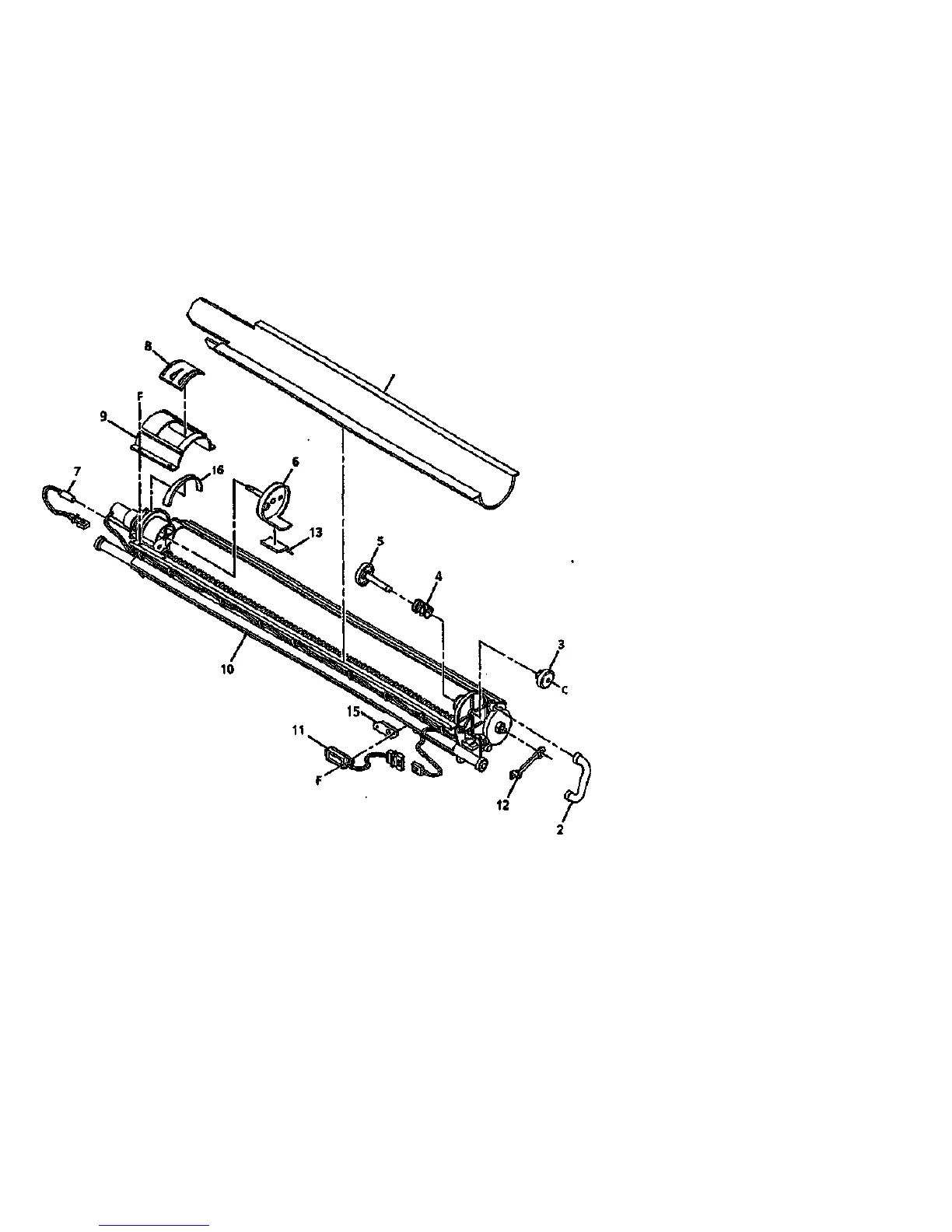

PL 9.9 DEVELOPER MODULE COMPONENTS (PART 1 OF 2)
14
ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
PART
54E3181
3E19330
-
5K1351
130K30381
2E40470
55K13840
130K53300
19E15551
1E23080
55K13830
35E12210
DESCRIPTION
PART OF DEVELOPER
MODULE ASSEMBLY
(REF: PL9.8 ITEM 12}
PRESSURE EQUALIZER
TUBE (REP 9.8)
CARTRIDGE KNOB
SPRING (P/O ITEM 1)
CARTRIDGE HUB
CARTRIDGE DRIVE PLATE
(P/O ITEM 1) (REP 9.14)
TONER CARTRIDGE
HOME SENSOR
(REP 9.12, ADJ 9.5)
TOP SHIELD DOOR
TOP SHIELD
DEVELOPER FRAME
(P/O ITEM 1)
TONER SENSOR (REP 9.11)
BIAS CLIP
TONER STRIP
SUMP SHIELD (REP 9.13)
SENSOR SPACER
(P/O ITEM 1)
SEAL
0000026A-RNO
PARTS LIST SECTION
PL 9.9
2/97
5-30
8830
