Xerox 8830 Service Manual

REP 4.1.13 Stall Detect Sensor Assembly, Tachometer Drive Belt, and Tachometer Pulley
Parts List on PL 2.1
Removal
Introduction
This procedure is used to remove the following parts:
• Stall Detect Sensor
• Tachometer Drive Belt
• Tachometer Pulley
B
Loosen the
setscrew on the
Tachometer
Pulley
Tachometer
WARNING
Switch off the Scanner and disconnect the Power
Cord.
1. Remove the Motor Assembly (REP 4.1.12).
2. (Figure 1): Remove the Stall Detect Sensor, Tachometer Drive Belt,
or Tachometer Pulley.
A
Remove the 2
retaining screws
and the Stall
Detect Sensor
Assembly
Slide the Tachometer
Pulley free of the
Tachometer Drive
Belt and off of the
Tachometer Drive
Shaft
Tachometer
rive Belt
01020A-COB

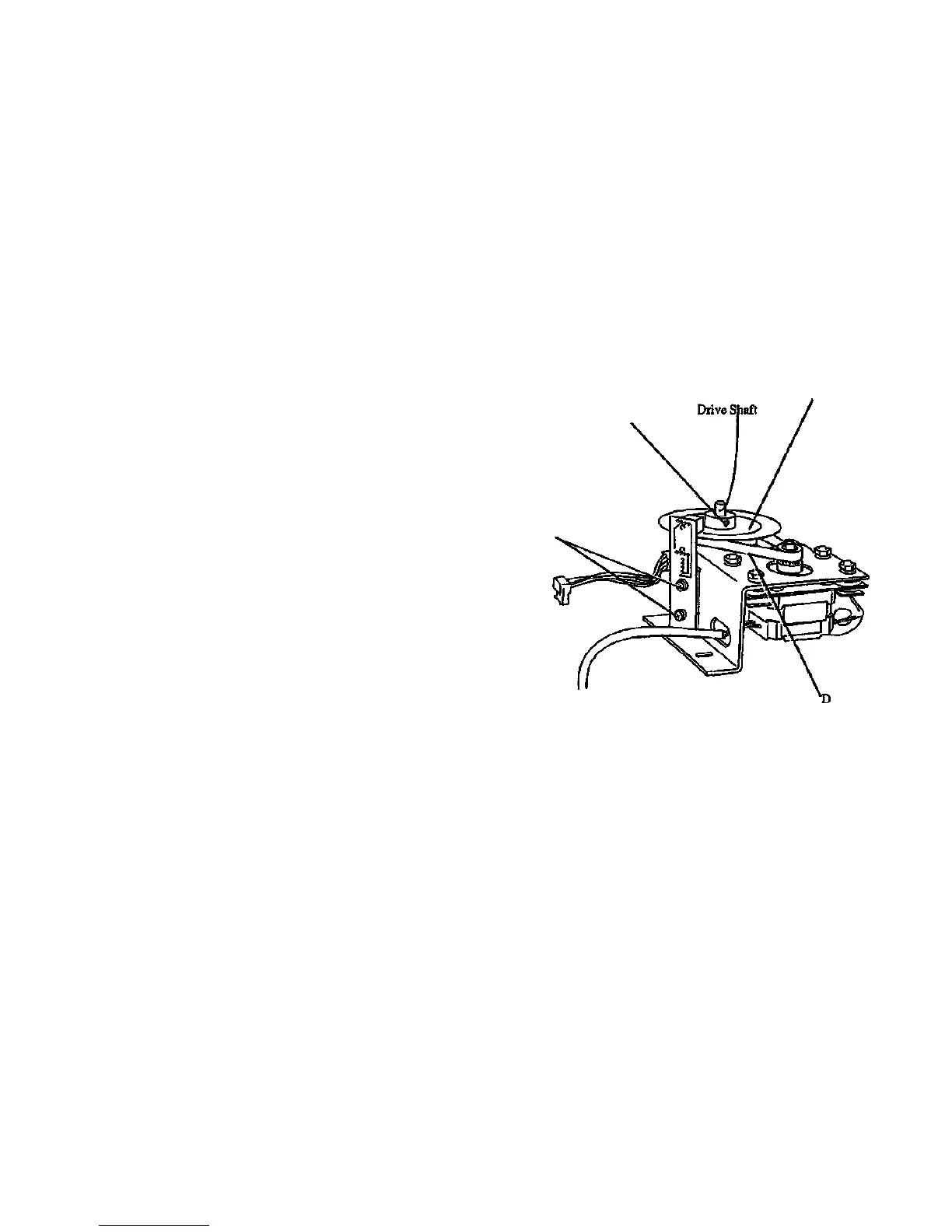

Figure 1. Motor Assembly
7356 SCANNER
4/97
4-21
REP 4.1.13
