3-33
CLEANING THE AIR FILTER ELEMENT/
CHECKING THE THROTTLE BODY JOINTS
CHK
ADJ
NOTE:
When installing the air filter element into the air
filter case cover, make sure their sealing sur-
faces are aligned to prevent any air leaks.
6. Install:
S fuel tank
Refer to “FUEL TANK”.
S front cowling inner panel (left and right)
Refer to “COWLINGS”.
S rider seat
Refer to “SEAT”.
EAS00095

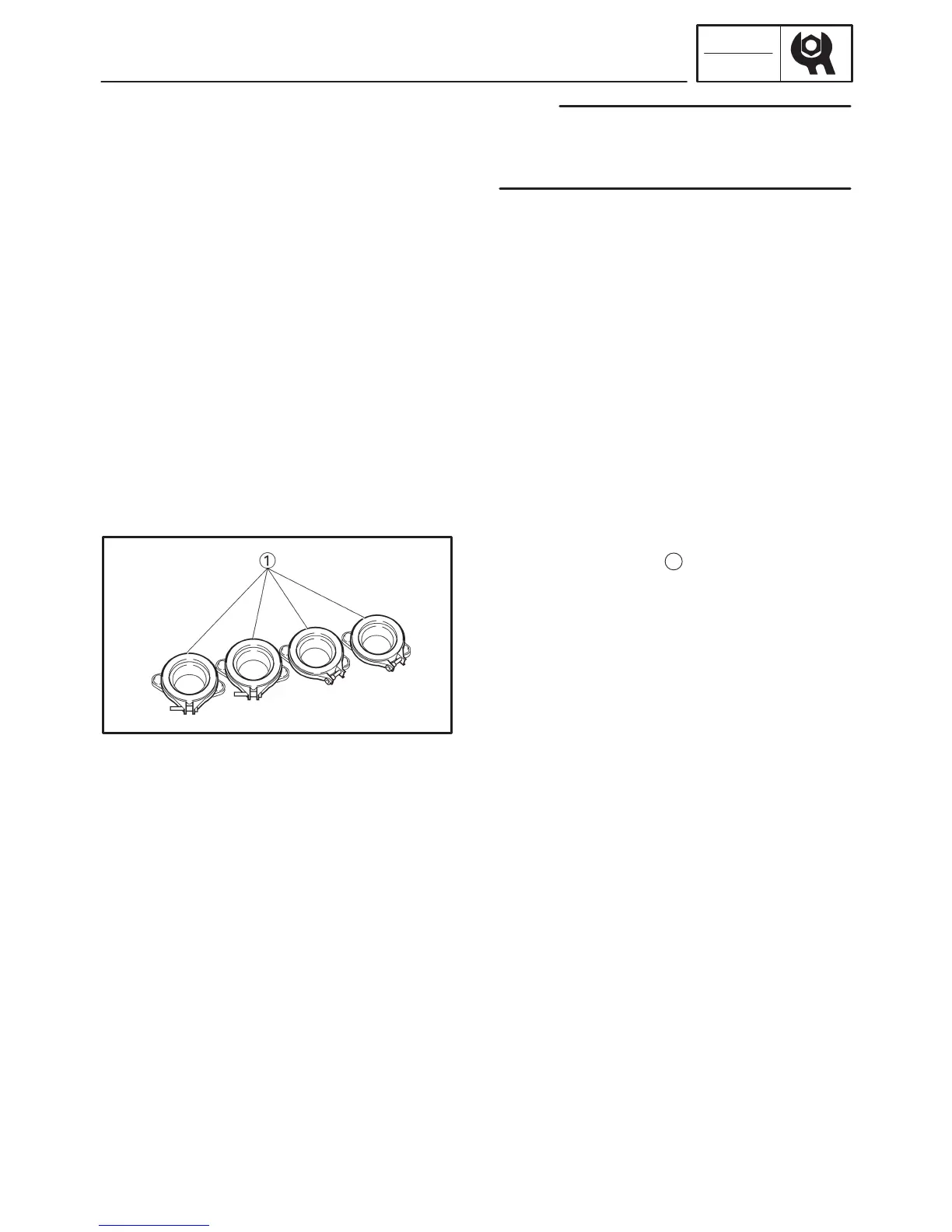

CHECKING THE THROTTLE BODY JOINTS
The following procedure applies to all of the
throttle body joints and intake manifolds.
1. Remove:
S throttle bodies
Refer to “THROTTLE BODIES” in chapter 7.
2. Check:
S throttle body joints
1
Cracks/damage ! Replace.
3. Install:
S throttle bodies
Refer to “THROTTLE BODIES” in chapter 7.
