AIR INDUCTION SYSTEM
FI
EAS00510
CHECKING THE AIR INDUCTION SYSTEM
1. Check:
S hoses
Loose connection ! Connect properly.
Cracks/damage ! Replace.
S pipes
Cracks/damage ! Replace.

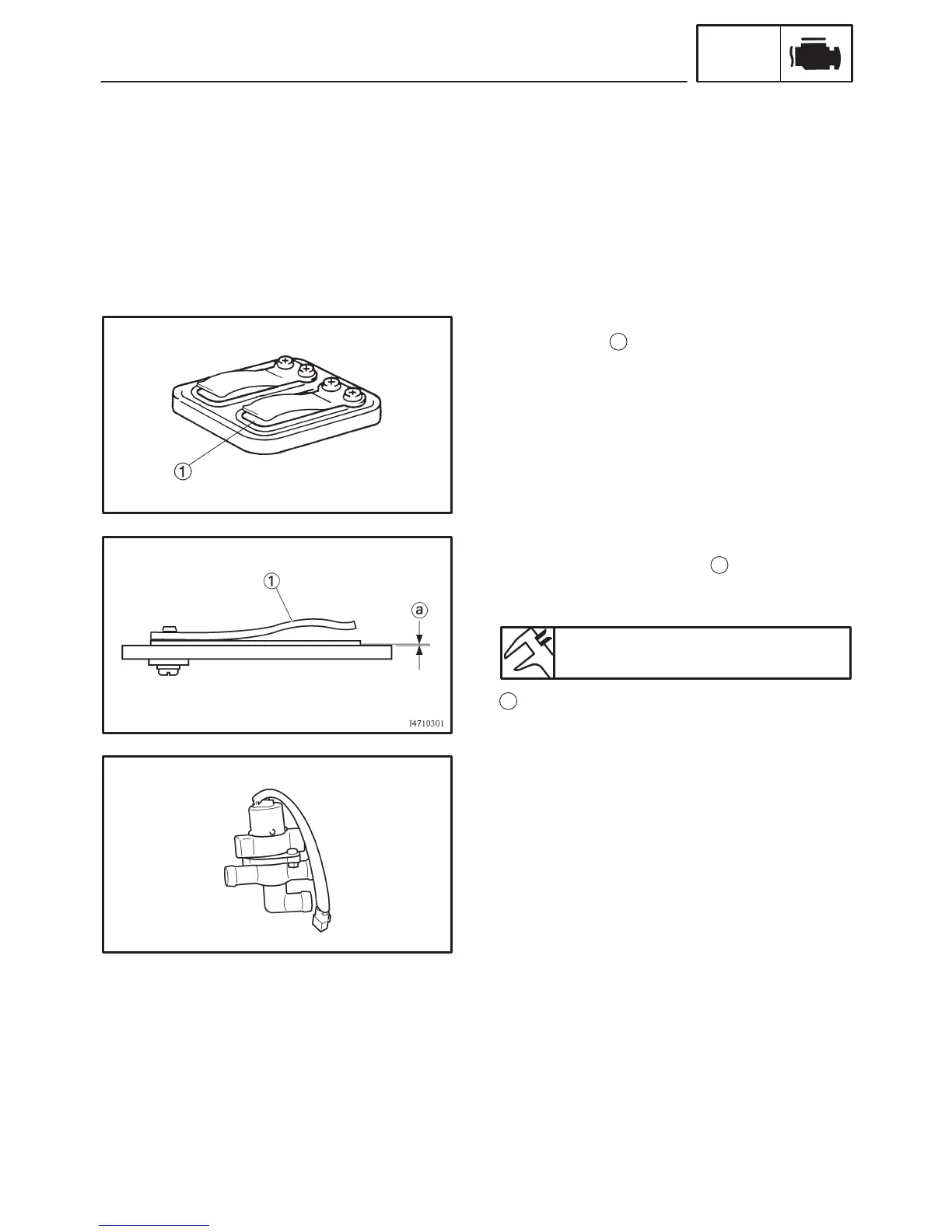

2. Check:
S reed valve
1
S reed valve stopper
S reed valve seat
Cracks/damage ! Replace the reed valve.
3. Measure:
S reed valve bending limit
a
Out of specification ! Replace the reed
valve.
Reed valve bending limit
0.4 mm (0.016 in)
1
Surface plate
4. Check:
S air cut-off valve
Cracks/damage ! Replace.
