CHECKING THE BRAKE FLUID LEVEL/
CHECKING THE FRONT AND REAR BRAKE PADS
CHK
ADJ
CAUTION:
NOTE:
Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean
up any spilt brake fluid immediately.
In order to ensure a correct reading of the brake
fluid level, make sure the top of the brake fluid
reservoir is horizontal.
EAS00118

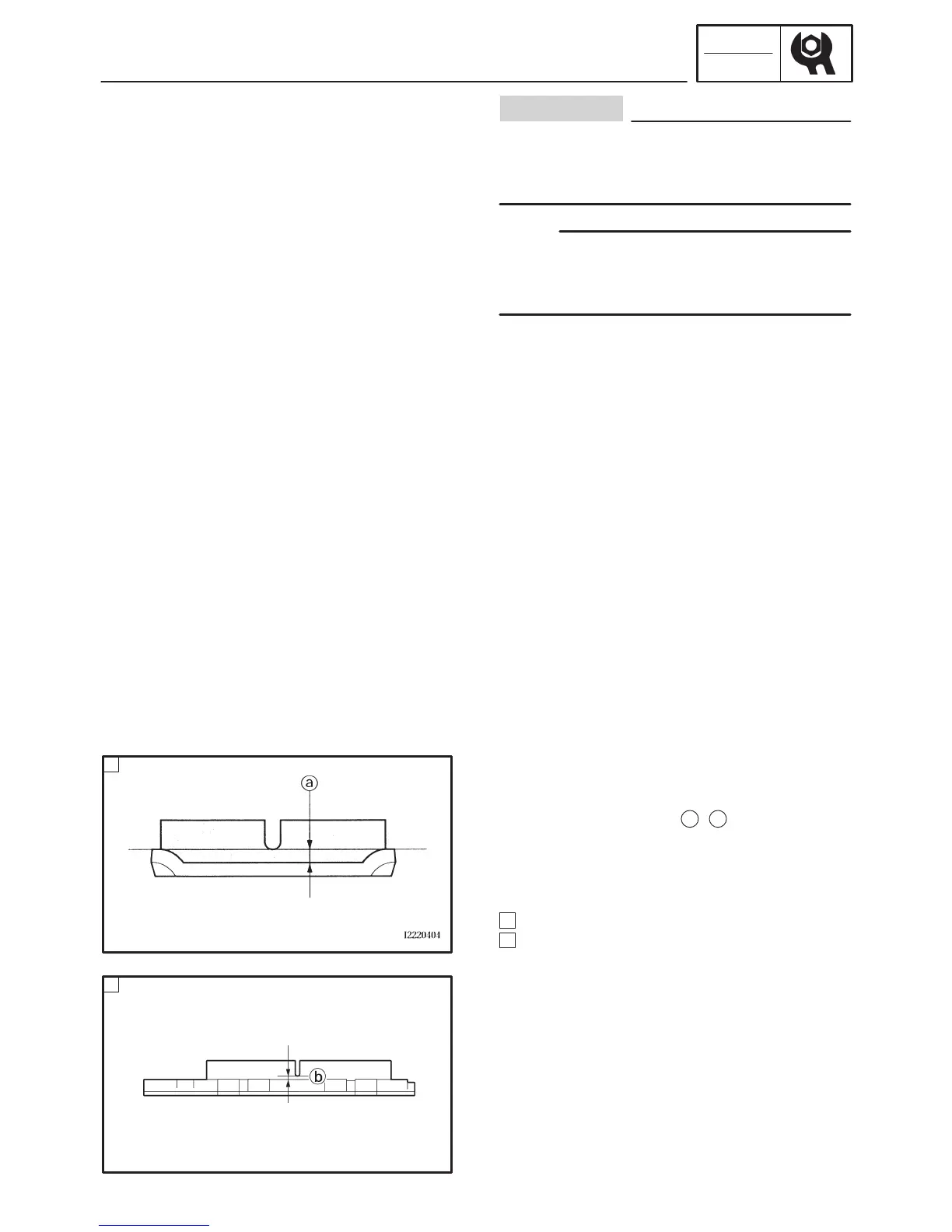

CHECKING THE FRONT AND REAR BRAKE
PADS
The following procedure applies to all of the
brake pads.
1. Operate the brake.
2. Check:
S front brake pad
S rear brake pad
Brake pad wear limit
a
,
b
Wear limit reached ! Replace the brake
pads as a set.
Refer to “FRONT AND REAR BRAKES” in
chapter 4.
A
Front brake
B
Rear brake
