8-43
1 Main switch
6 Fuse (main)
9 Battery
19 Coolant temperature sensor
20 ECU
42 Fuse (radiator fan motor)
43 Radiator fan motor relay
44 Radiator fan motor
47 Fuse (ignition)
COOLING SYSTEM
ELEC
EAS00807
COOLING SYSTEM

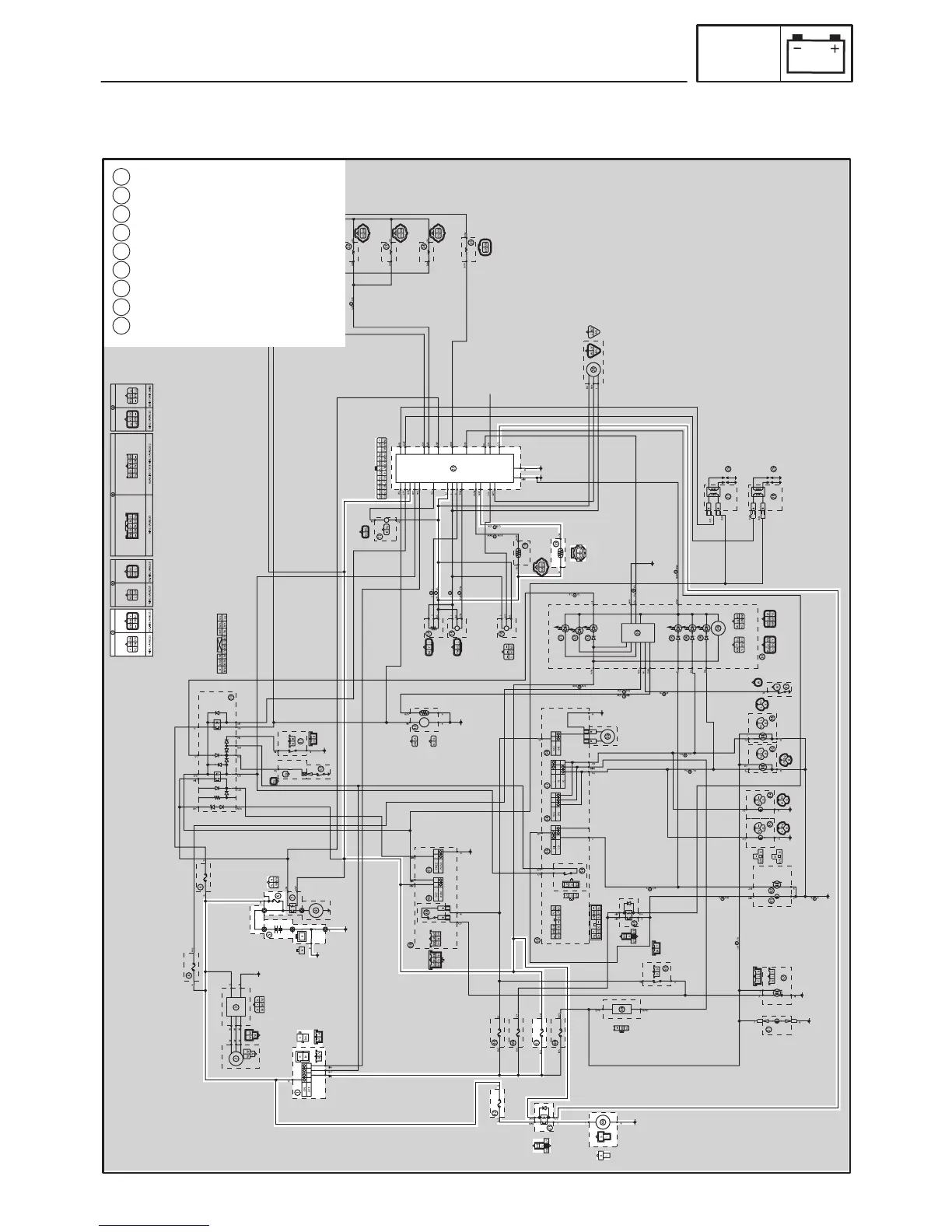

CIRCUIT DIAGRAM
