4-59

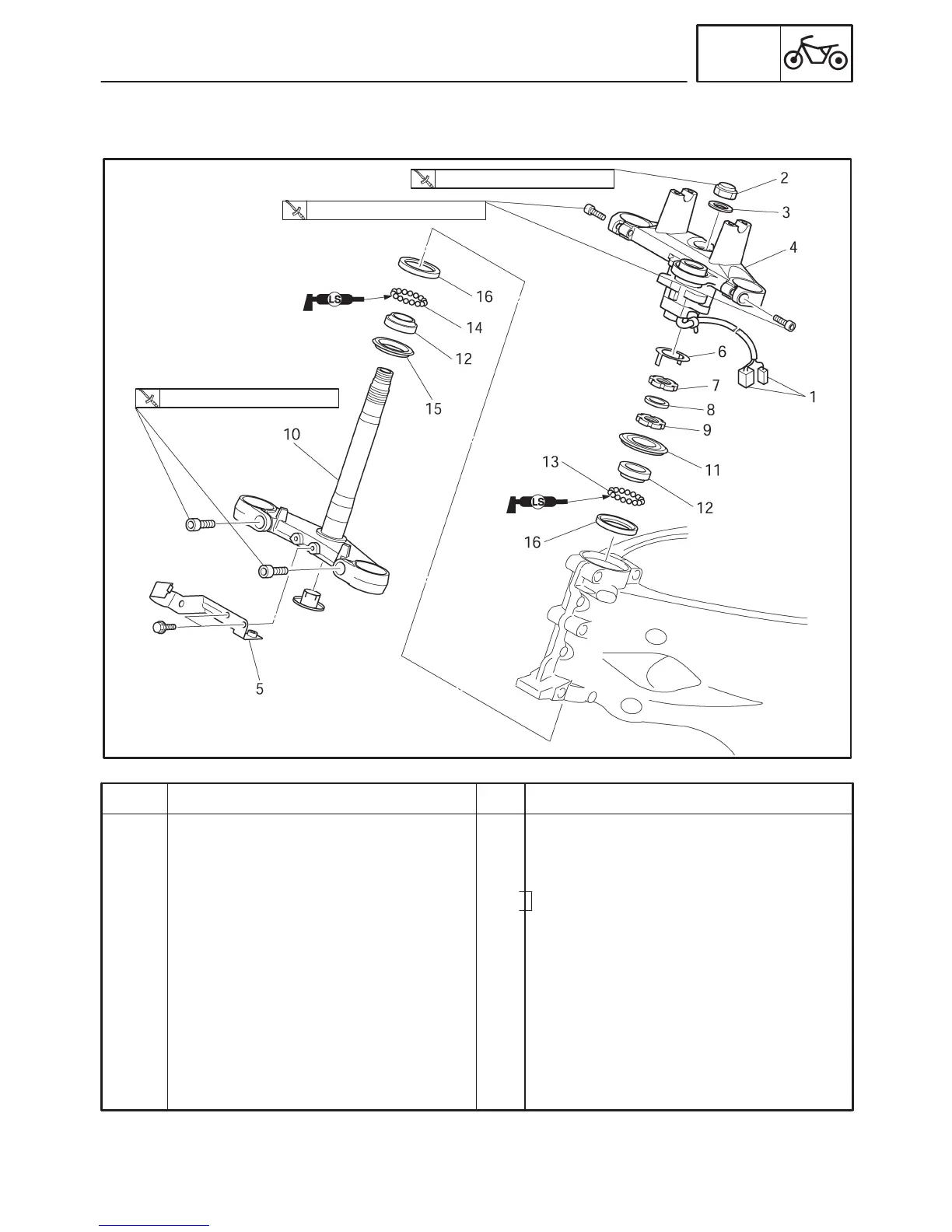

STEERING HEAD
CHAS
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
Removing the under bracket
Front wheel
Front fender
Front fork
Handlebar
Front cowling inner panel (left and right)
Fuel tank
Main switch coupler
Steering stem nut
Washer
Upper bracket
Horn stay
Lock washer
2
1
1
1
1
1
Remove the parts in the order listed.
Refer to “FRONT WHEEL AND BRAKE
DISCS”.
Refer to “HANDLEBAR”.
Refer to “COWLINGS” in chapter3.
Refer to “FUEL TANK” in chapter 3.
Disconnect.
Refer to “FRONT FORK”.
30 Nm (3.0 mSkg, 22 ftSlb)
30 Nm (3.0 mSkg, 22 ftSlb)
110 Nm (11 mSkg, 80 ftSlb)
EAS00676
STEERING HEAD
UNDER BRACKET
