3-17
ADJUSTING THE VALVE CLEARANCE/
SYNCHRONIZING THE THROTTLE BODIES
CHK
ADJ
NOTE:
NOTE:
NOTE:
7. Install:
S all removed parts
For installation, reverse the removal procedure.
SYNCHRONIZING THE THROTTLE BODIES
Prior to synchronizing the throttle bodies, the
valve clearance and the engine idling speed
should be properly adjusted and the ignition tim-
ing should be checked.
1. Stand the motorcycle on a level surface.
Place the motorcycle on a suitable stand.
2. Remove:
S seat
Refer to “SEAT”.
S front cowling inner panel (left and right)
Refer to “COWLINGS”
S fuel tank
Refer to “FUEL TANK”.
S air filter case
Refer to “AIR FILTER CASE”.

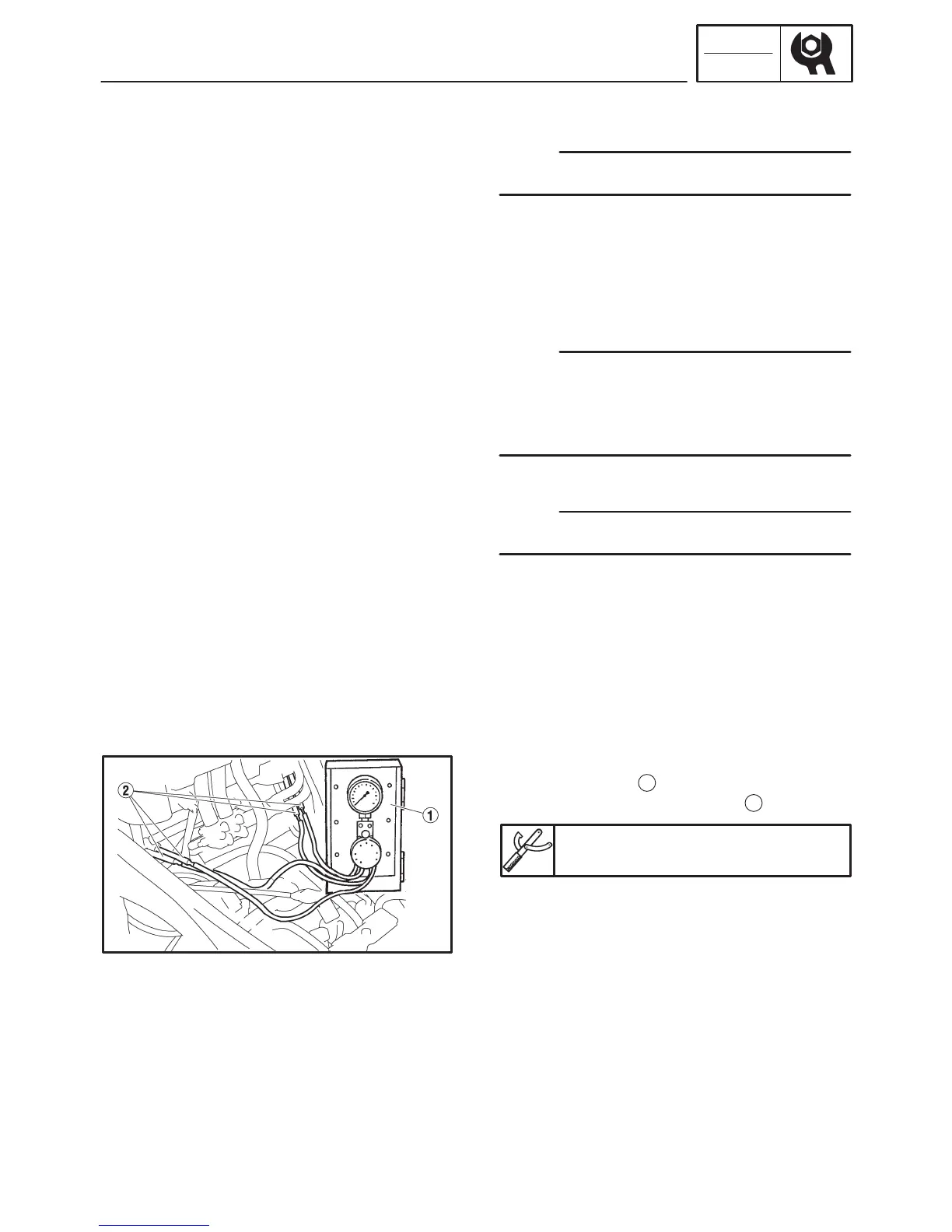

3. Install:
S vacuum gauge
1
(onto the synchronizing hose
2
)
Vacuum gauge
90890-03094, YU-08030
4. Install:
S air filter case
Refer to “AIR FILTER CASE”.
S fuel tank
Refer to “FUEL TANK”.
S changing the meter display.
Refer to “FEATURES” in chapter 1.
5. Start the engine and let it warm up for several
minutes.
To Next Page
