8-19
STARTER MOTOR
ELEC
Order Job/Part Q’ty Remarks
1
2

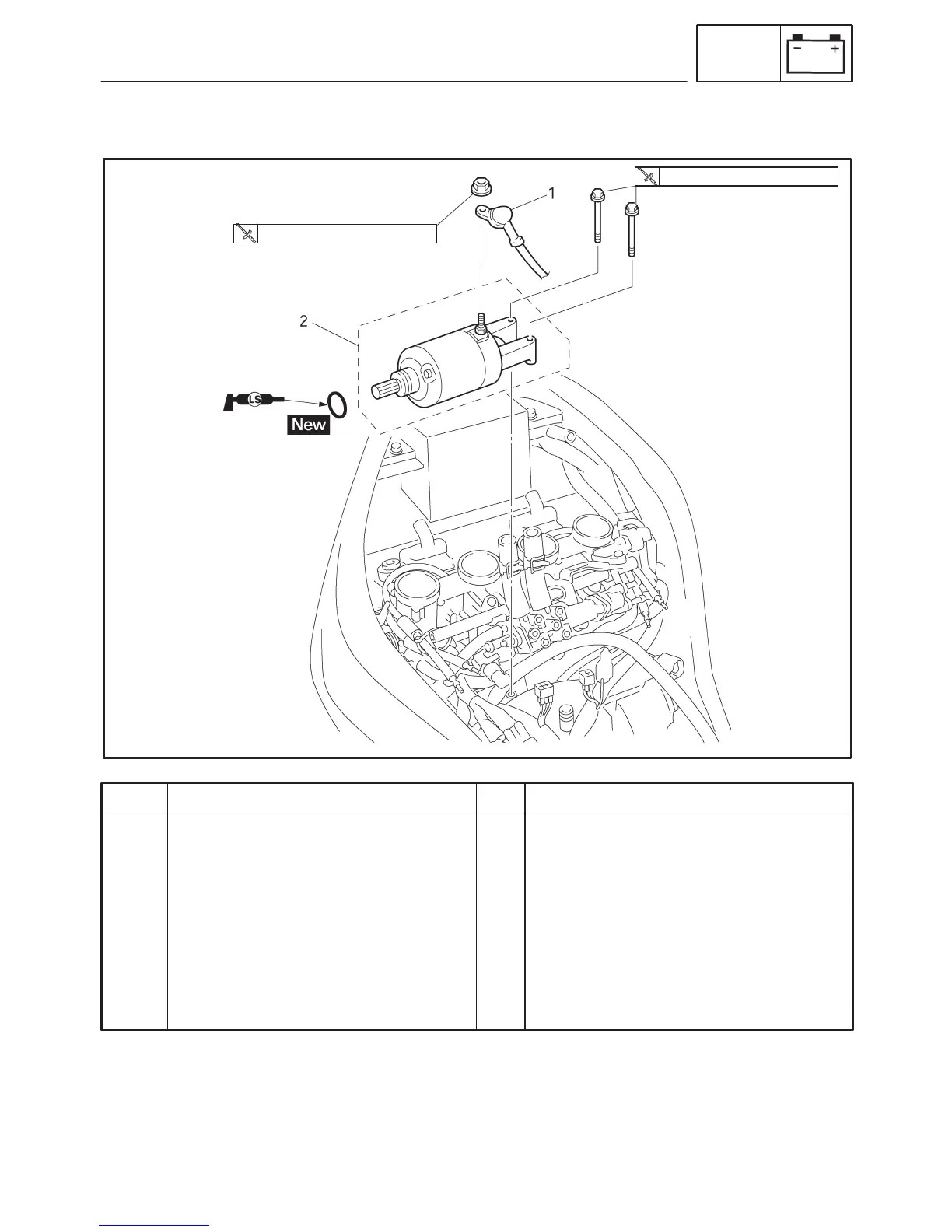

Removing the starter motor
Seat
Front cowling inner panel (left and right)
Fuel tank
Throttle bodies
Starter motor lead
Starter motor
1
1
Remove the parts in the order listed.
Refer to “SEAT” in chapter 3.
Refer to “COWLINGS” in chapter 3.
Refer to “FUEL TANK” in chapter 3.
Refer to “THROTTLE BODIES” in
chapter 7.
For installation, reverse the removal
procedure.
10 Nm (1.0 mSkg, 7.2 ftSlb)
5 Nm (0.5 mSkg, 3.6 ftSlb)
EAS00767
STARTER MOTOR
