4-1
4

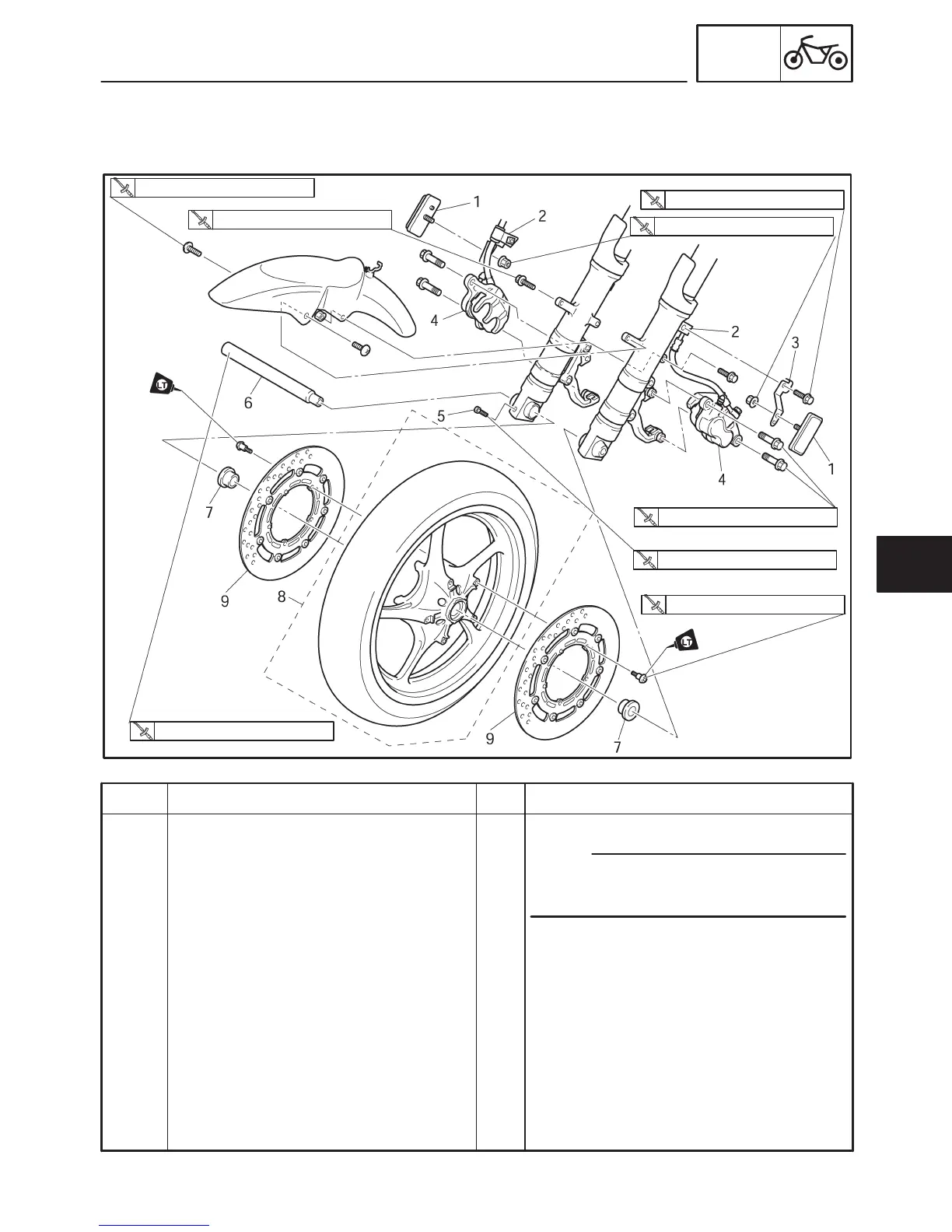

FRONT WHEEL AND BRAKE DISCS
CHAS
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
8
9
Removing the front wheel and brake
discs
Side reflector (left and right)
Brake hose holder (left and right)
Side reflector bracket
Front brake caliper (left and right)
Front wheel axle pinch bolt
Front wheel axle
Collar (left and right)
Front wheel
Front brake disc (left and right)
2
2
1
2
1
1
2
1
2
Remove the parts in the order listed.
Place the motorcycle on a suitable stand
so that the front wheel is elevated.
Loosen.
For installation, reverse the removal
procedure.
NOTE:
40 Nm (4.0 mSkg, 29 ftSlb)
18 Nm (1.8 mSkg, 13 ftSlb)
23 Nm (2.3 mSkg, 17 ftSlb)
72 Nm (7.2 mSkg, 52 ftSlb)
6 Nm (0.6 mSkg, 4.3 ftSlb)
10 Nm (1.0 mSkg, 7.2 ftSlb)
6 Nm (0.6 mSkg, 4.3 ftSlb)
4 Nm (0.4 mSkg, 2.9 ftSlb)
EAS00514
CHASSIS
FRONT WHEEL AND BRAKE DISCS
To Next Page
