4-45
FRONT FORK
CHAS
Order Job/Part Q’ty Remarks
1
2
3
4
5

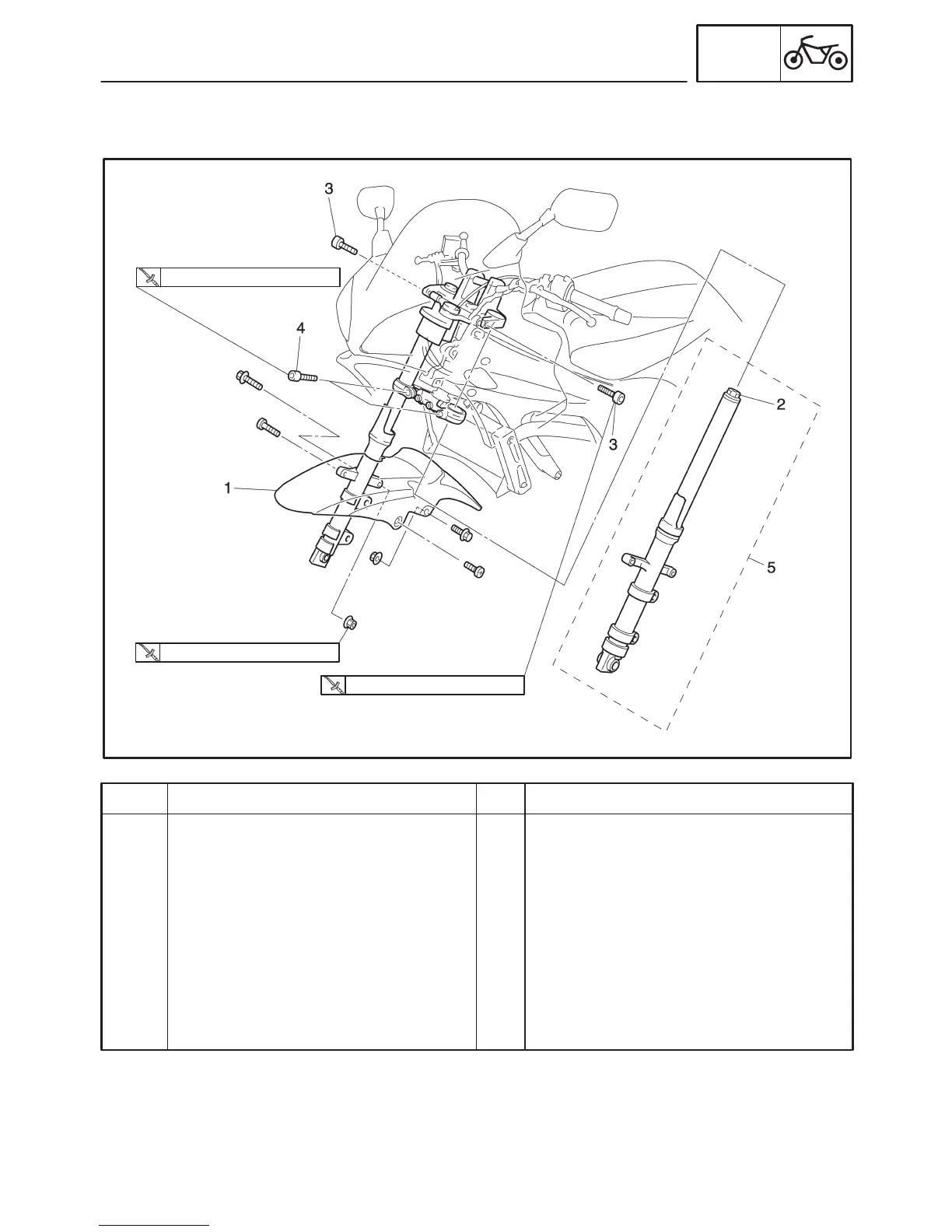

Removing the front fork legs
Front wheel
Front brake calipers
Front fender
Cap bolt
Upper bracket pinch bolt
Under bracket pinch bolt
Front fork leg
1
1
1
1
1
Remove the parts in the order listed.
Refer to “FRONT WHEEL AND BRAKE
DISCS”.
Refer to “FRONT AND REAR BRAKES”.
Loosen.
Loosen.
Loosen.
For installation, reverse the removal
procedure.
30 Nm (3.0 mSkg, 22 ftSlb)
6 Nm (0.6 mSkg, 4.3 ftSlb)
30 Nm (3.0 mSkg, 22 ftSlb)
EAS00647
FRONT FORK
FRONT FORK LEGS
To Next Page
