4-57
HANDLEBAR
CHAS
WARNING
23 Nm (2.3 mSkg, 17 ftSlb)
CAUTION:
NOTE:
NOTE:
NOTE:
EAS00672

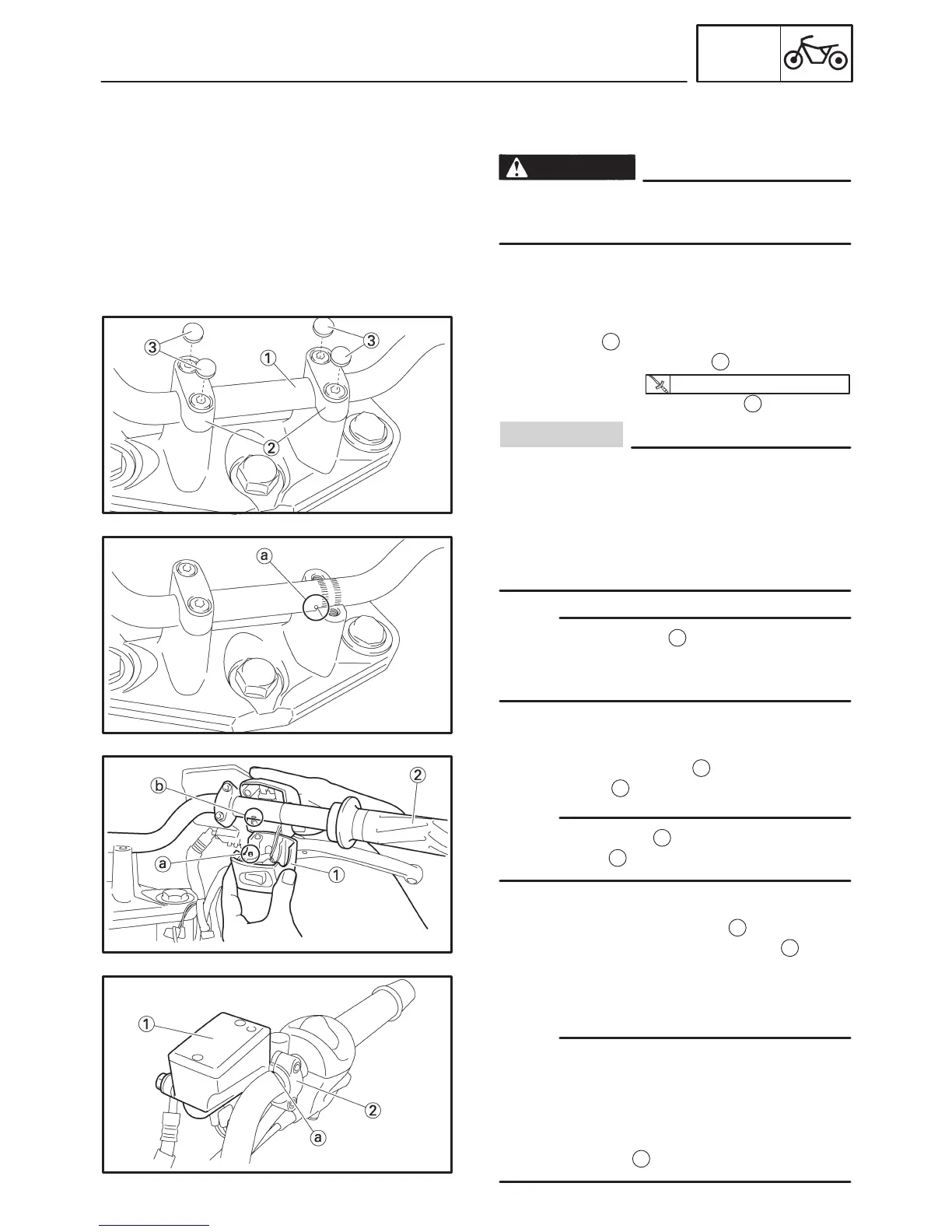

INSTALLING THE HANDLEBAR
1. Stand the motorcycle on a level surface.
Securely support the motorcycle so that
there is no danger of it falling over.
2. Install:
S handlebar
1
S upper handlebar holders
2
S upper handlebar holder caps
3
S First, tighten the bolts on the front side of
the handlebar holder, and then on the rear
side.
S Turn the handlebar all the way to the left
and right. If there is any contact with the
fuel tank, adjust the handlebar position.
Align the match marks
a
on the handlebar with
the upper surface of the lower handlebar hold-
ers.
3. Install:
S throttle cables
S right handlebar switch
1
S throttle grip
2
Align the projections
a
on the handlebar switch
with the holes
b
in the handlebar.
4. Install:
S front brake master cylinder
1
S front brake master cylinder holder
2
Refer to “ASSEMBLING AND INSTALLING
THE FRONT BRAKE MASTER CYL-
INDER”.
S There should be 17 mm (0.67 in) of clearance
between the right handlebar switch and front
brake master cylinder.
S Align the mating surfaces of the master cylin-
der bracket with the punch mark (right handle-
bar switch side)
a
on the handlebar.
To Next Page
