5-3

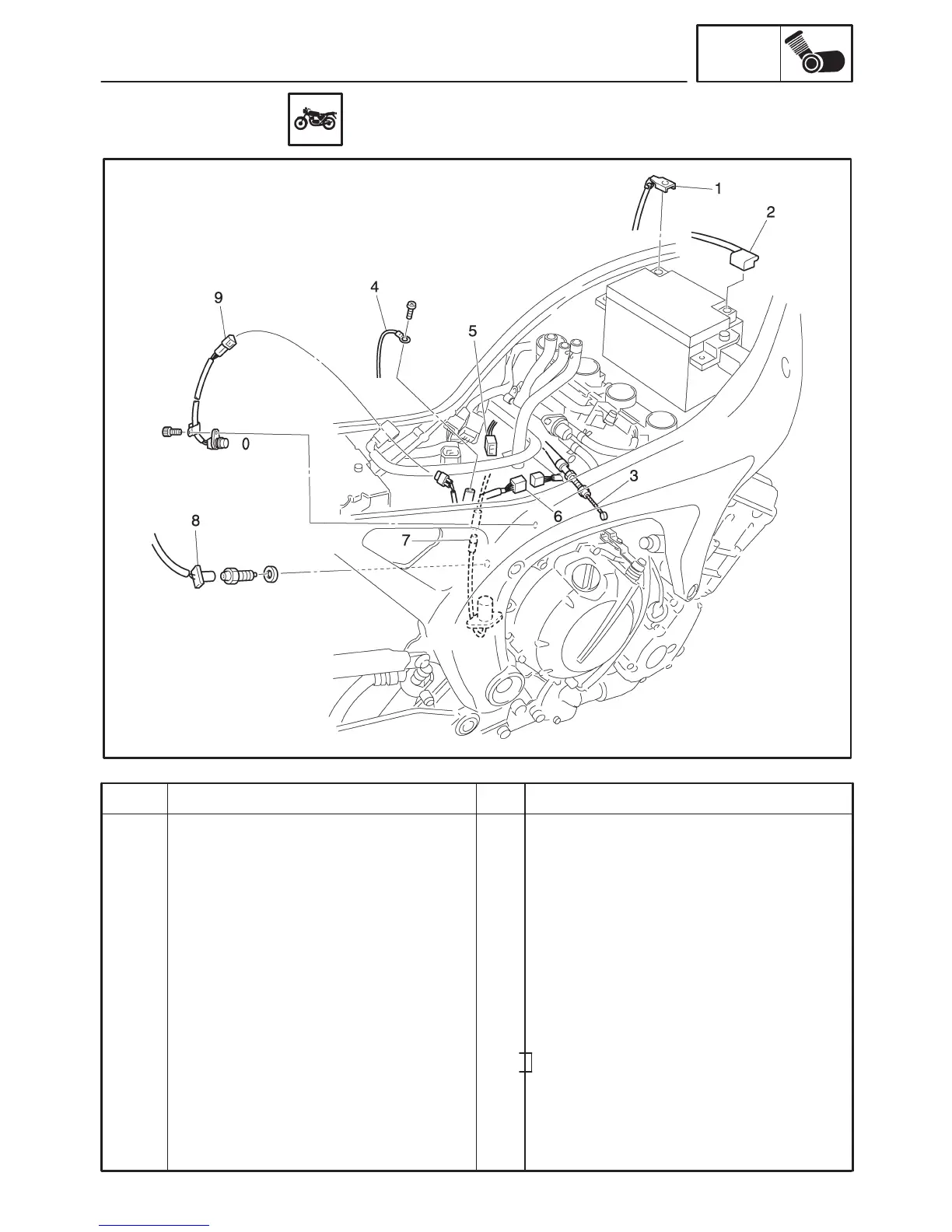

Order Job/Part Q’ty Remarks
Disconnecting the leads and hoses
Seat
Front cowling inner panel (left and right)
Fuel tank
Battery
Air filter case
Battery box and battery box bracket
Throttle body assembly
Engine oil
Oil filter cartridge
Oil cooler
Air cut-off valve
Disconnect the parts in the order listed.
Refer to “SEAT” in chapter 3.
Refer to “COWLINGS” in chapter 3.
Refer to “FUEL TANK” in chapter 3.
Refer to “CHECKING AND CHARGING
THE BATTERY” in chapter 3.
Refer to “AIR FILTER CASE” in chapter 3.
Refer to “BATTERY BOX AND BATTERY
BOX BRACKET” in chapter 3.
Refer to “THROTTLE BODIES” in
chapter 7.
Refer to “OIL COOLER” in chapter 6.
Refer to “AIR INDUCTION SYSTEM” in
chapter 7.
Drain
Refer to “CHANGING THE ENGINE
OIL” in chapter 3.
ENGINE
ENG
EAS00191
LEADS AND HOSES
To Next Page
