REAR WHEEL AND BRAKE DISC
CHAS
NOTE:
120 Nm (12 mSkg, 87 ftSlb)
27 Nm (2.7 mSkg, 20 ftSlb)
22 Nm (2.2 mSkg, 16 ftSlb)
2. Replace:
S rear wheel sprocket
a. Remove the self-locking nuts and the rear
wheel sprocket.
b. Clean the rear wheel drive hub with a clean
cloth, especially the surfaces that contact the
sprocket.
c. Install the new rear wheel sprocket.
Rear wheel sprocket self-locking
nut
100 Nm (10 mSkg, 72 ftSlb)

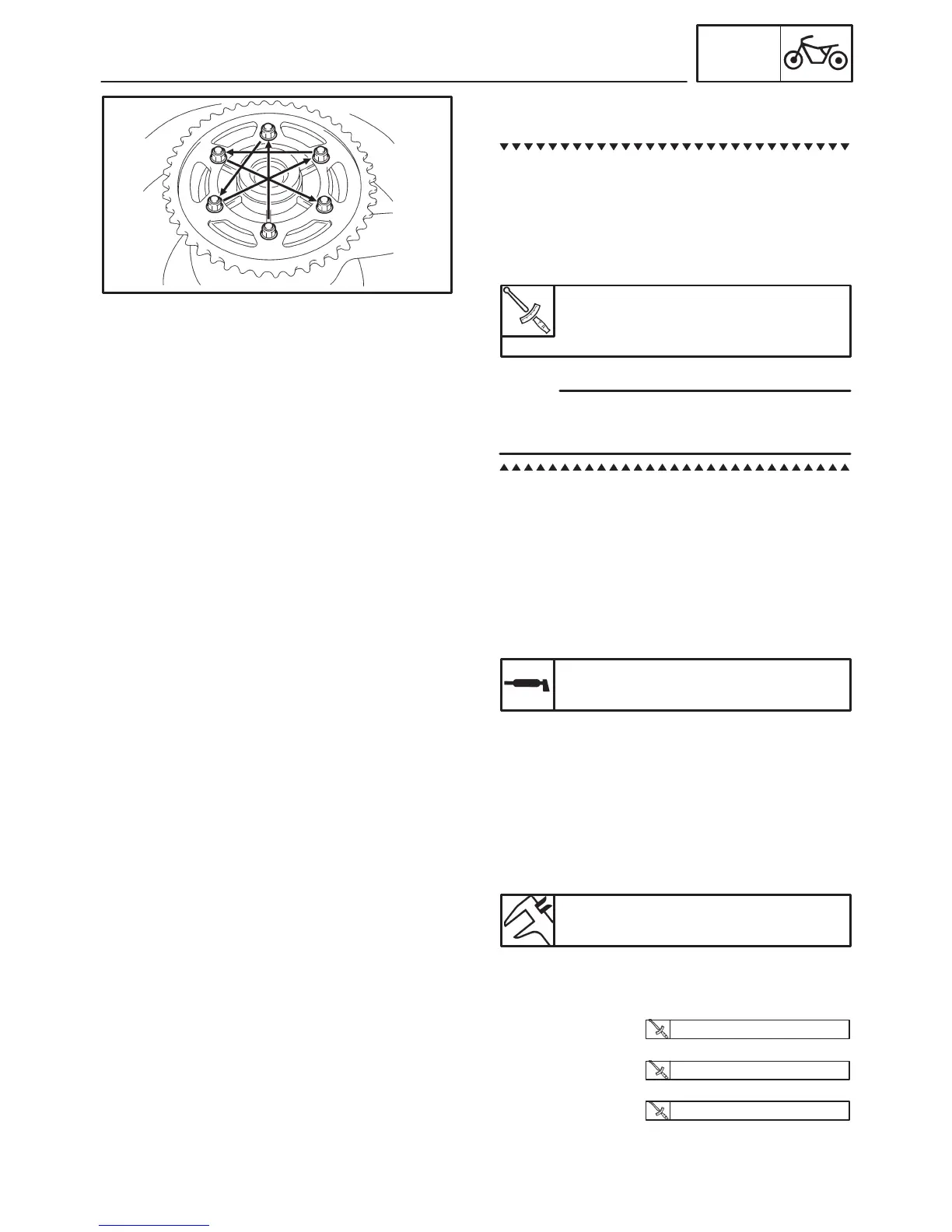

Tighten the self-locking nuts in stages and in a
crisscross pattern.
EAS00572
INSTALLING THE REAR WHEEL
1. Lubricate:
S wheel axle
S wheel bearings
S oil seal lips
Recommended lubricant
Lithium-soap-based grease
2. Install:
S collars
S rear brake caliper bracket
S rear wheel
S washer
S rear wheel axle
3. Adjust:
S drive chain slack
Drive drain slack
45 X 55 mm (1.77 X 2.17 in)
Refer to “ADJUSTING THE DRIVE CHAIN
SLACK” in chapter 3.
4. Tighten:
S wheel axle nut
S brake caliper bolts (front)
S brake caliper bolts (rear)
