8-4

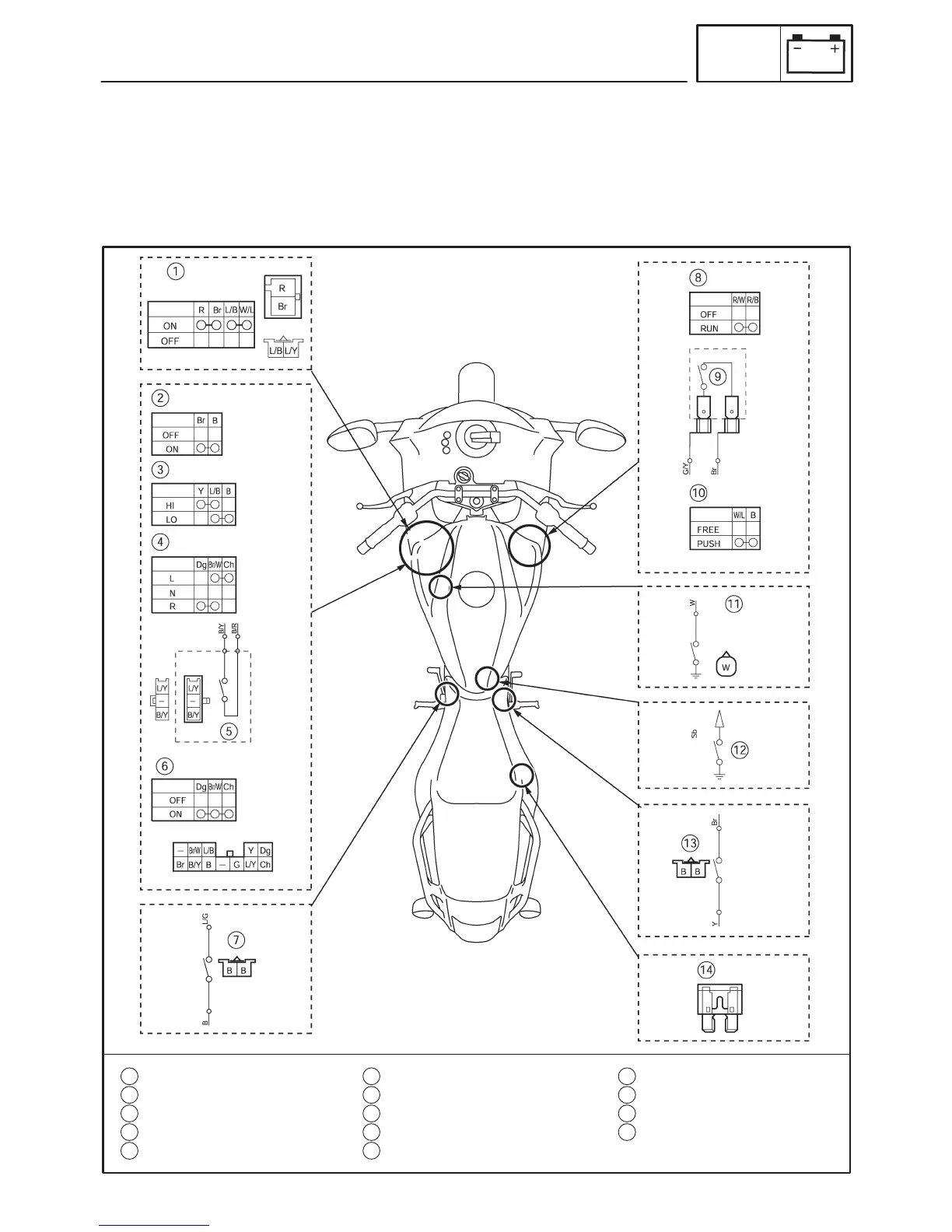

11 Oil level switch
12 Neutral switch
13 Rear brake light switch
14 Fuse box
1 Main switch
2 Horn switch
3 Dimmer switch
4 Turn signal switch
5 Clutch switch
6 Hazard switch
7 Sidestand switch
8 Engine stop switch
9 Front brake light switch
10 Start switch
CHECKING THE SWITCHES
ELEC
EAS00731
CHECKING THE SWITCHES
Check each switch for damage or wear, proper connections, and also for continuity between the termi-
nals. Refer to “CHECKING SWITCH CONTINUITY”.
Damage/wear ! Repair or replace.
Improperly connected ! Properly connect.
Incorrect continuity reading ! Replace the switch.
