CRANKSHAFT POSITION SENSOR AND PICKUP ROTOR
ENG
NOTE:
NOTE:
NOTE:

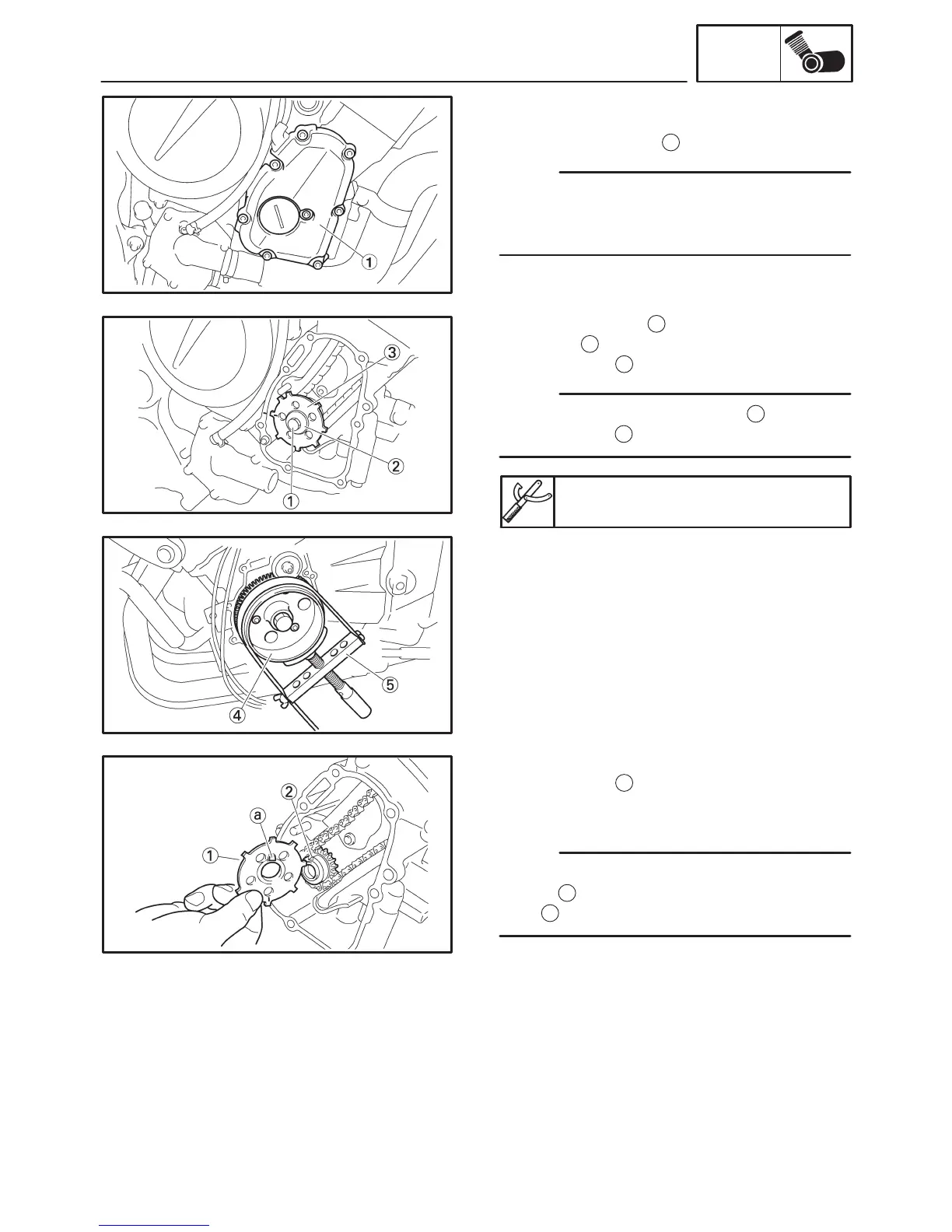

REMOVING THE PICKUP ROTOR
1. Remove:
S pickup rotor cover
1
Loosen each bolt 1/4 of a turn at a time, in
stages and in a crisscross pattern. After all of
the bolts are fully loosened, remove them.
2. Remove:
S pickup rotor bolt
1
S washer
2
S pickup rotor
3
While holding the generator rotor
4
with the ro-
tor holding tool
5
, loosen the pickup rotor bolt.
Sheave holder
90890-01701, YS-01880-A
INSTALLING THE PICKUP ROTOR
1. Install:
S pickup rotor
1
S washer
S pickup rotor bolt
When installing the pickup rotor, align the
groove
2
in the crankshaft sprocket with the
point
a
in the pickup rotor.
