8-47
1 Main switch
5 Fuse (fuel injection)
6 Fuse (main)
9 Battery
10 Starting circuit cut-off relay
13 Fuel pump
20 ECU
40 Engine stop switch
47 Fuse (ignition)
FUEL PUMP SYSTEM
ELEC
EAS00814
FUEL PUMP SYSTEM

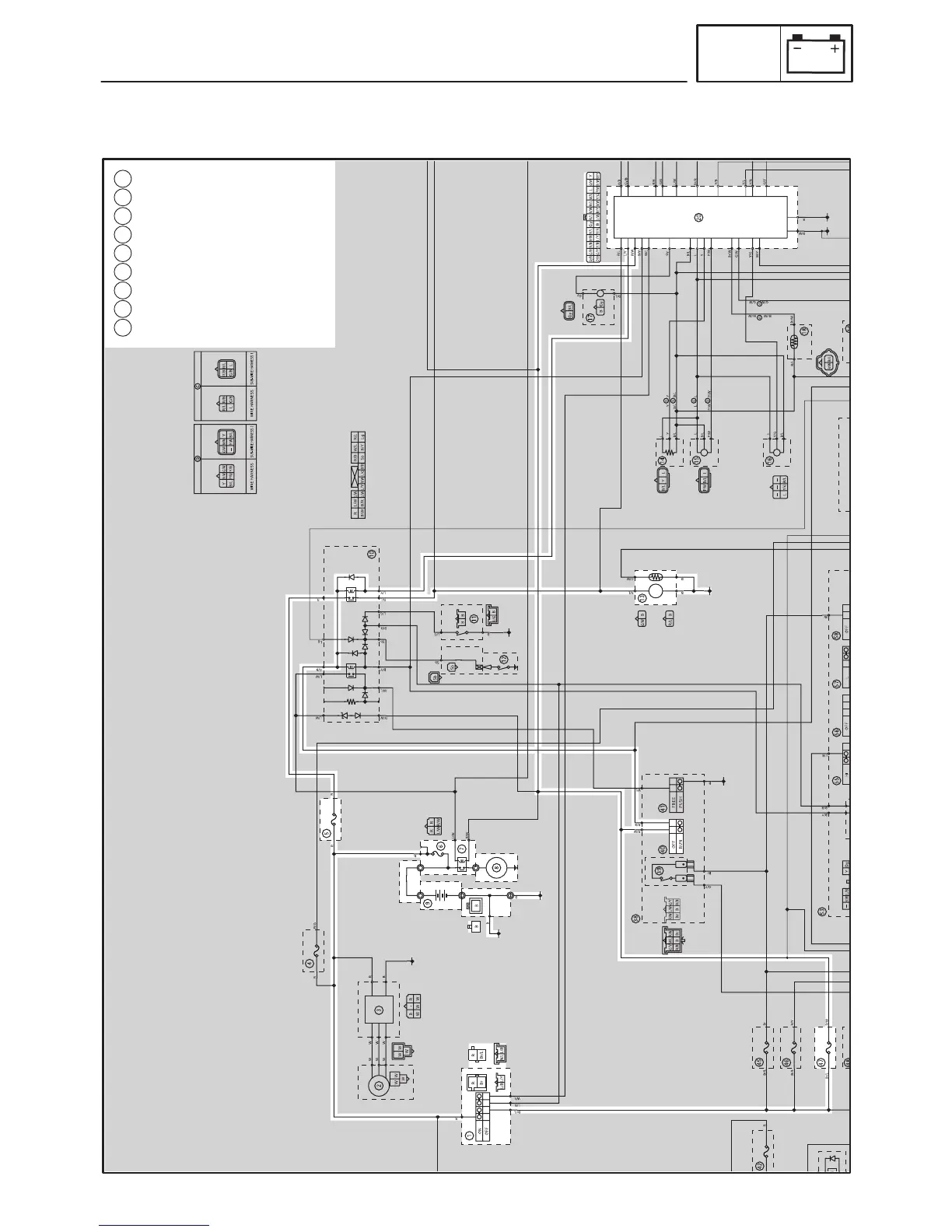

CIRCUIT DIAGRAM
