CLUTCH
ENG
NOTE:
2. Measure:
S friction plate thickness
Out of specification ! Replace the friction
plates as a set.
Measure the friction plate at four places.
Friction plate thickness
2.9 X 3.1 mm (0.114 X 0.122 in)
<Limit>: 2.8 mm (0.110 in)
EAS00281

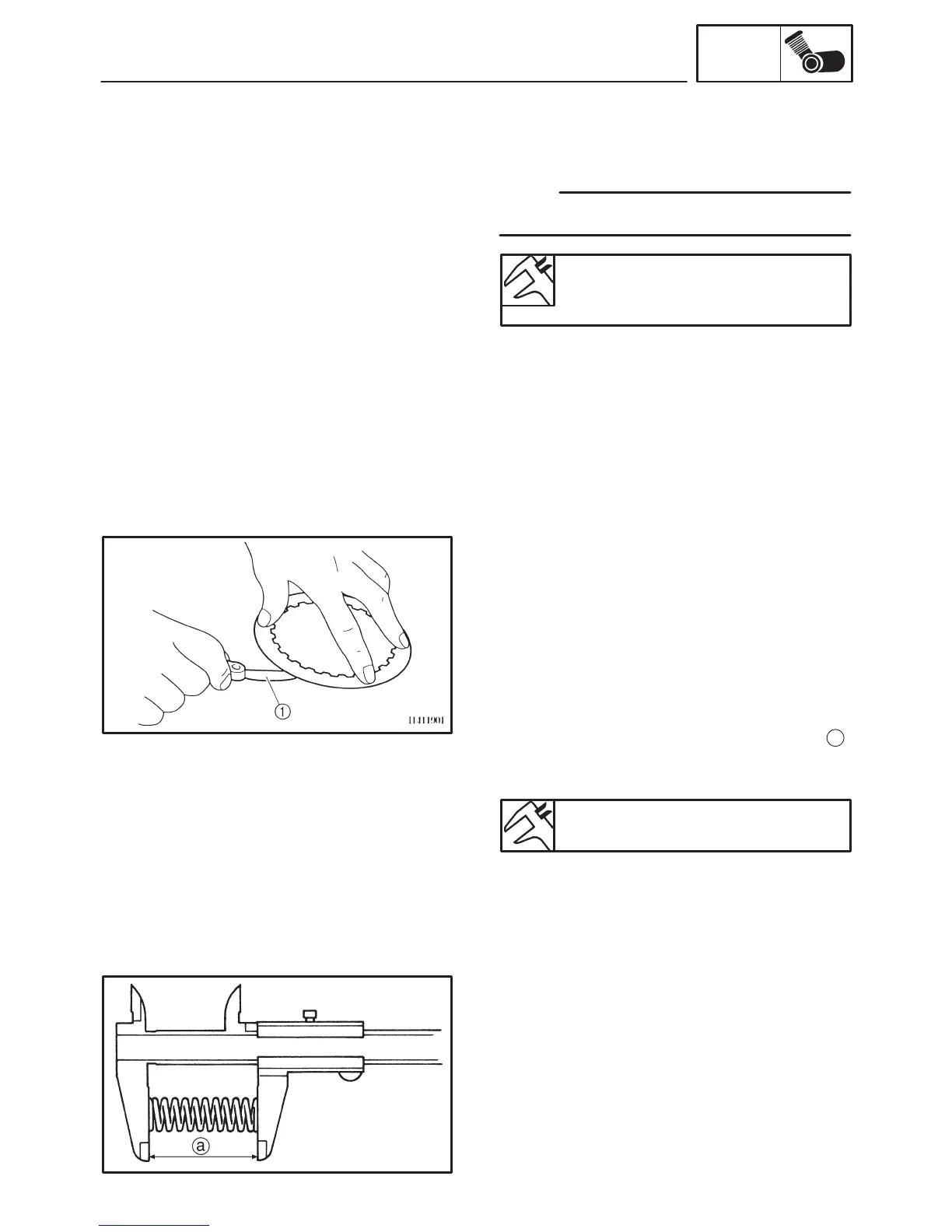

CHECKING THE CLUTCH PLATES
The following procedure applies to all of the
clutch plates.
1. Check:
S clutch plate
Damage ! Replace the clutch plates as a
set.
2. Measure:
S clutch plate warpage
(with a surface plate and thickness gauge
1
)
Out of specification ! Replace the clutch
plates as a set.
Clutch plate warpage limit
0.1 mm (0.0039 in)
EAS00282
CHECKING THE CLUTCH SPRINGS
The following procedure applies to all of the
clutch springs.
1. Check:
S clutch spring
Damage ! Replace the clutch springs as a
set.
